Manufacture Price FTTH 1x8 SC/APC Mini Cassette Fiber Optic PLC Splitter Wave length 1260-1650nm for Custom network solutions
Manufacture Price FTTH 1x8 SC/APC Mini Cassette Fiber Optic PLC Splitter Wave length 1260-1650nm for Custom network solutions
Manufacture Price FTTH 1x8 SC/APC Mini Cassette Fiber Optic PLC Splitter Wave length 1260-1650nm for Custom network solutions
Manufacture Price FTTH 1x8 SC/APC Mini Cassette Fiber Optic PLC Splitter Wave length 1260-1650nm for Custom network solutions
Manufacture Price FTTH 1x8 SC/APC Mini Cassette Fiber Optic PLC Splitter Wave length 1260-1650nm for Custom network solutions
Manufacture Price FTTH 1x8 SC/APC Mini Cassette Fiber Optic PLC Splitter Wave length 1260-1650nm for Custom network solutions
Manufacture Price FTTH 1x8 SC/APC Mini Cassette Fiber Optic PLC Splitter Wave length 1260-1650nm for Custom network solutions
Manufacture Price FTTH 1x8 SC/APC Mini Cassette Fiber Optic PLC Splitter Wave length 1260-1650nm for Custom network solutions
Specifications
Brand Name :
yingda
Model Number :
YDPLC-LGX-208LU
Certification :
ISO
Place of Origin :
china
MOQ :
1pc
Price :
1.1USD-4.58USD
Payment Terms :
T/T,Western Union,MoneyGram,L/C
Delivery Time :
5DAYS
Packaging Details :
1PC/PLASTIC BAG, 40pcs/carton box
color :
gray
cable port :
4ports for outlet cable
splitter type :
1x16 2x16 fiber potic splitter
fiber type :
single mode 9/125um
loose tube :
0.9mm diameter white
Connector :
SC LC
Description




The LGX Optical Splitter is a high-performance fiber optic splitter specifically designed to meet the demanding requirements of the Russian market.

Engineered to operate in extreme conditions, this splitter can withstand temperatures as low as -50°C, making it ideal for use in cold winter.

A 1×8 split ratio, this splitter has a customizable shell, with stainless steel nuts for added durability and reliability.

The design allows for the direct input of patch cords, reducing construction costs and simplifying installation. Its superior performance, compact design, and adaptability make it a versatile solution for a wide range of fiber optic network applications.


Specification:

Item
Value
Type
Fiber Optic PLC Splitter
Model Number
1x8
Place of Origin
China
Brand Name
YINGDA
Use
FTTH
Warranty Time
5 years
Fiber Type
G657A1 or Customized
Wave Length
1260-1650nm
Connector Type
SC/APC
Cable Diameter
0.9mm
Insertion Loss(dB)
10.7 with connector
Fiber length
1 m 1.5 m or Customized
Fiber Color
Yellow or colors
Operating temperature
-40℃~85℃
Certification
CE/ROHS/ISO9001

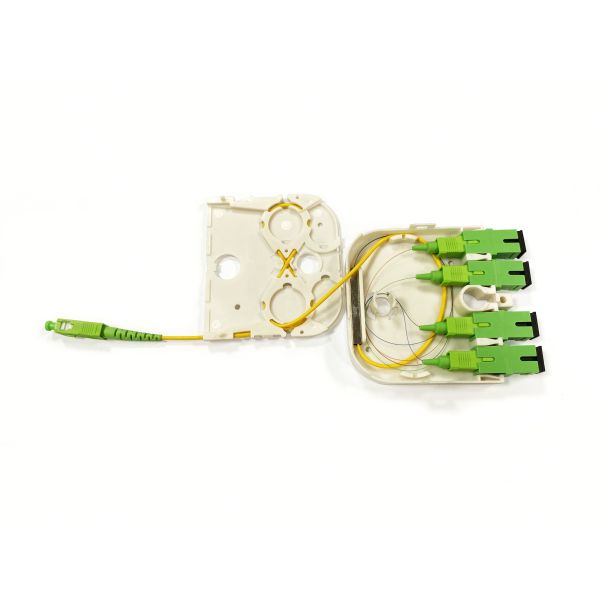

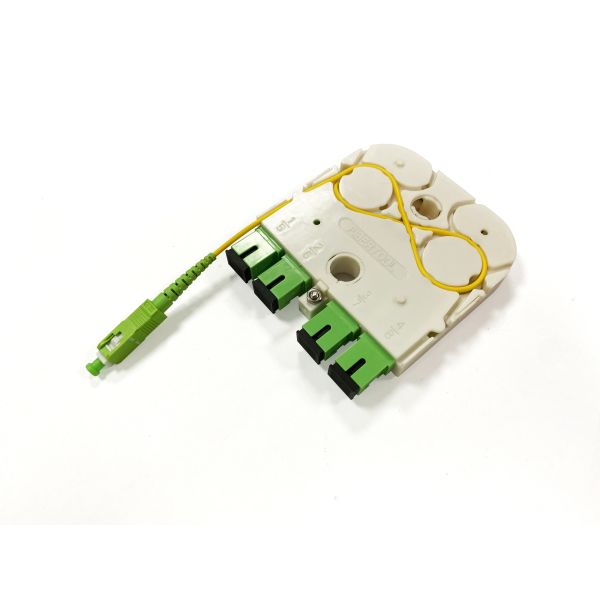

Product details:

Manufacture Price FTTH 1x8 SC/APC Mini Cassette Fiber Optic PLC Splitter Wave length 1260-1650nm for Custom network solutionsManufacture Price FTTH 1x8 SC/APC Mini Cassette Fiber Optic PLC Splitter Wave length 1260-1650nm for Custom network solutions

Direct patch cord Input design:

Input side with 2.0mm yellow cable, allows patch cords to be directly connected to the splitter, eliminating the need for additional components. Reduces construction and material costs, simplifying installation and maintenance.

Manufacture Price FTTH 1x8 SC/APC Mini Cassette Fiber Optic PLC Splitter Wave length 1260-1650nm for Custom network solutions Manufacture Price FTTH 1x8 SC/APC Mini Cassette Fiber Optic PLC Splitter Wave length 1260-1650nm for Custom network solutions

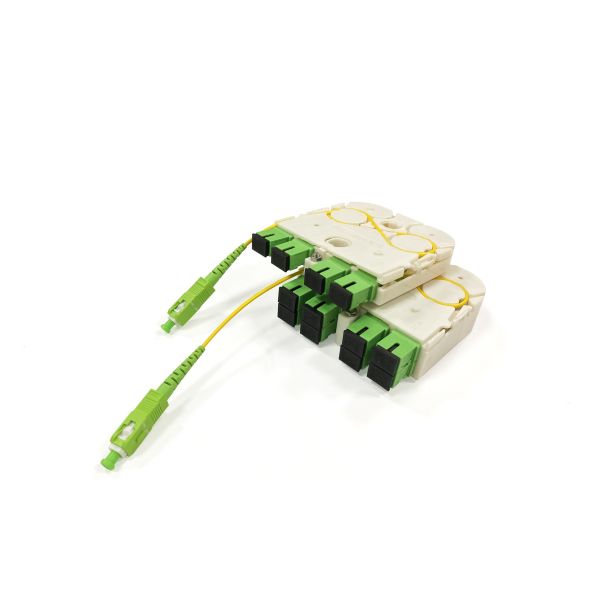

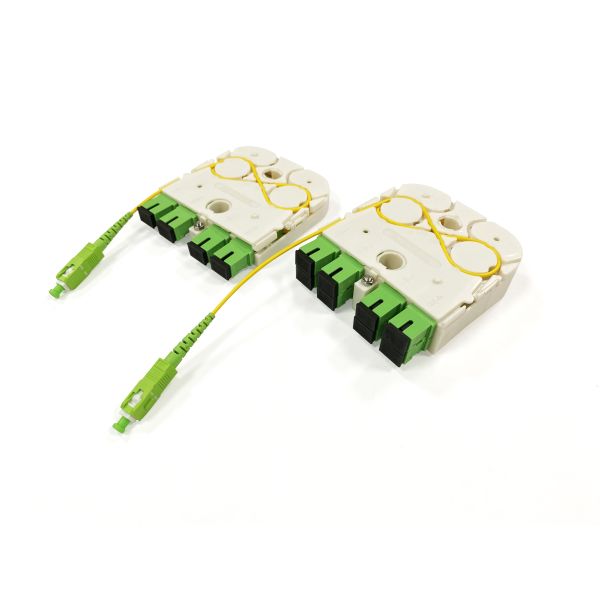

Two models for option:

The 1X4 and 1X8 with SC/APC mini cassette PLC splitters are available. The splitter performance as below:

Splitter Performance

Specification 1×4 Splitter 1×8 Splitter
Insertion Loss (IL) ≤7.7dB (With Connector) / ≤7.5dB (Without Connector) ≤10.7dB (With Connector) / ≤10.5dB (Without Connector)
Polarization Dependent Loss (PDL) ≤0.2dB ≤0.2dB
Uniformity ≤0.8dB ≤0.8dB
Directivity ≥55dB ≥55dB
Return Loss (RL) ≥55dB ≥55dB



Application:

1· FTTx
2· Cable television (CATV)
3· Local area networks (LAN)
4· Test equipment
5· Passive optical networks(PON)




YINGDA 'S PLC Splitter production line:

Manufacture Price FTTH 1x8 SC/APC Mini Cassette Fiber Optic PLC Splitter Wave length 1260-1650nm for Custom network solutionsManufacture Price FTTH 1x8 SC/APC Mini Cassette Fiber Optic PLC Splitter Wave length 1260-1650nm for Custom network solutions

1.Advanced production and testing equipment

2.Professional manufacturer. 100% tested
3. Full compliance with IS0 9001:2008 quality managemen system
4.Our company has experienced professional team
5.Provide reliable solutions and satisfactory services
6.Warmly services with careful attentions
7.Can provide your specific inquiry within 24 hours Advanced production and testing equipment.
