Pushable Pre-connector SC/APC Metal Connector Fiber Patch Cord Black For Through The Duct And Wall FTTH
Pushable Pre-connector SC/APC Metal Connector Fiber Patch Cord Black For Through The Duct And Wall FTTH
Pushable Pre-connector SC/APC Metal Connector Fiber Patch Cord Black For Through The Duct And Wall FTTH
Pushable Pre-connector SC/APC Metal Connector Fiber Patch Cord Black For Through The Duct And Wall FTTH
Specifications
Brand Name :
YINGDA
Model Number :
Metal connector patch cord
Certification :
ISO CE ROHS
Place of Origin :
china
MOQ :
500 pcs
Price :
0.36USD-30USD
Payment Terms :
Western Union,T/T
Supply Ability :
60,000 pcs per month
Delivery Time :
7days after payment
Packaging Details :
1 pc/ box, 200pcs / carton box
connector :
SC/APC
fiber count :
2 core
insertion loss :
<0.3dB
Cable length :
5 meter
Cable diameter :
3.0mm,5.0mm
fiber type :
single mode 9/125um
package :
plastic bag
cable color :
black
Appliatoin :
base station
cable material :
LSZH
product name :
fiber cable,fiber optic patch cables,fiber optics patch cords,fiber optic jumpers,fiber optic jumper cables,fiber optik patch cord
Description

Pushable Fiber Cable Pre-Terminated Metal Head SC/APC FTTH for Tool-Free Installation



Pushable Patch Cords is a type of pushable fiber optic jumper, manufactured for quick, reliable and uncomplicated fiber deployment in FTTH and FTTX networks. This pre-terminated FTTH drop cable design is considered for easy routing into indoor walls, conduits, and places where microduct fiber optic solutions are used, without the need of coupling or splicing.


Yingda pre terminated the fiber optic cable are with pushable SC connector at one side, which can be directly pulling through a wall, then docking with fiber optic adapters, while the other side is standard SC connectors with rubber seal, which is designed to connect with the outdoor fiber splitter boxes, rubber seal prevent water from entering.


Product Description:


YINGDA Pushable cable assemblies offer a flexible, pushable pre-terminated fiber optic drop solution for fast and reliable FTTX deployments.


The bullet pushable connector enables the pre-connectorized cable to be installed through microducts and small holes that are typical of most FTTX scenarios. This cable can be installed without using large conduits or drilling big holes through the customer's wall.


This bullet Pushable assembly can be successfully pushed through small holes and microduct . Hand push distances vary according to bend frequency and duct quality; The rugged round drop cable with the pushable pre-terminated connector, reduces the cost of fiber deployments as well as the intrinsic skill and difficulty of handling and connecting customer drop cables.


Specification


Fiber Mode

Single mode

Fiber Count

1

Polish or Ferrule Interface Type

APC

Connector A

Metal SC APC

Connector B

SC APC with Rubber boot

Cable Lengths

customized

Jacket Materials

Indoor/outdoor LSZH Material

Outer Jacket Color

Black or White

Outer Jacket Diameter(mm)

3.0mm or 2.0*5.0 Flat Drops

Fiber Type

G657A2

Inner Cable Diameter

0.9mm

Inner cable Color

Blue

Storage Temperature

-20°C to 60°C

Installation Temperature

-5°C to 50°C

Operating Temperature

-20°C to 60°C

Crush(N/100mm)

1000

Maximum Tensile Load (Long term)

150N

Minimum Tensile Load (Short term)

400N


Figure 8 Fiber Cable Specification

Item Value
Connector SC LC FC ST E2000 DIN D4 SMA FDDI MTRJ MU MPO MTP LX.5 VF45, etc.
Operating wavelength 1260-1650nm
Fiber type G652D, G657A2, G657A1, G655, G657B3, OM1 OM2 OM3 OM4,OM5, etc.
Cable jacket LSZH, PVC, PE, TPU, etc.
Polish manner UPC, APC(8°), PC
Fiber radius of curvature ≥ 40 mm (G.652D and G.655C); ≥ 20 mm (only G.657A2)
Insertion Loss ≤ 0.1dB (Master)


≤ 0.3dB (Standard)

Tested by JDS RM 3750
Return Loss UPC ≥ 55dB,APC ≥ 60dB (typ.65dB)–Single mode


UPC≥ 35dB (typ.38dB)-Multimode

Tested by JDS RM3750
Repeat ability ±0.1dB
Operating temperature -40 ° C to 85 ° C
Geometry Requirement


(For Single mode)

 Ferrule End face Radius:


7mm ≤ R ≤ 12mm (APC)

10mm ≤ R ≤ 25mm (Standard)

Apex Offset ≤ 30 μm (Master)

Apex Offset ≤ 50 μm (Standard)

Undercut -50nm ≤ U ≤ 50nm

Tested by DORC ZX-1

G.657A2 Fiber Parameters

No. Items Unit Specification
G657A2
1 Mode Field Diameter 1310nm μm 9.0±0.4
1550nm μm 10.1±0.5
2 Cladding Diameter μm 124.8±0.7
3 Cladding Non-Circularity % ≤0.7
4 Core-Cladding Concentricity Error μm ≤0.5
5 Coating Diameter μm 245±5
6 Coating Non-Circularity % ≤6.0
7 Cladding-Coating Concentricity Error μm ≤12.0
8 Cable Cutoff Wavelength nm λcc≤1260
9 Attenuation(max.) 1310nm dB/km ≤0.4
1550nm dB/km ≤0.3
10 Macro-Bending Loss 1turn×10mm radius @1550nm dB ≤0.75
1turn×10mm radius @1625nm dB ≤1.5

Application:


  • FTTH / FTTX – Indoor & outdoor drops

  • Single and multi-dwelling units

  • FTTP and campus networks

  • Rural broadband

  • DAS / FTTA


Features:

  • Terminations designed and tested to Telcordia GR-326

  • Decreased deployment times and reduced installation costs by eliminating in-field splicing.

  • Tool-less Installation, wall protective sleeve is easily removed and outer housing snaps into place

  • Guaranteed Insertion loss/return loss

  • REACH & RoHS compliant

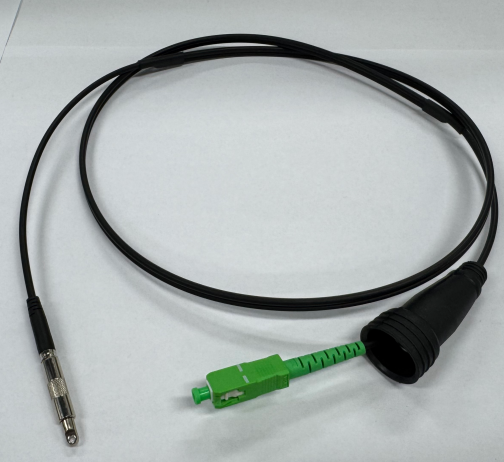

Pushable Pre-connector SC/APC Metal Connector Fiber Patch Cord Black For Through The Duct And Wall FTTH

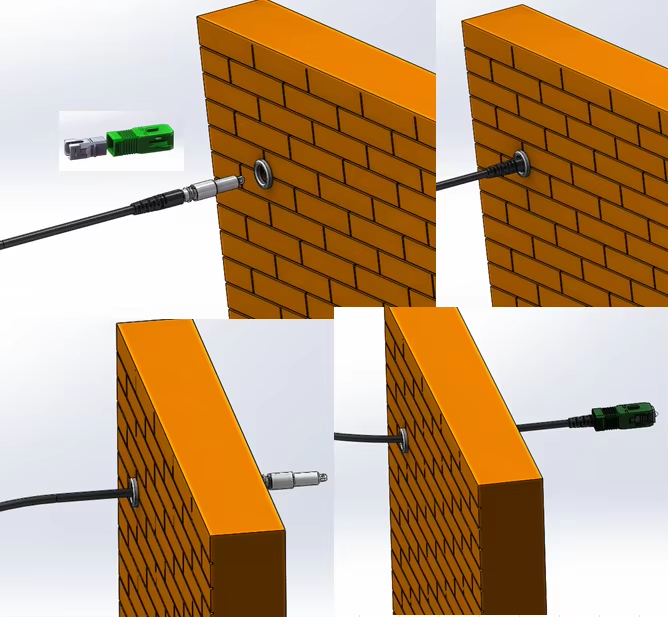

The one side with metal connector can be diretly pulling through a wall,and this metal connector of connector is made of alloy material, which is easy to plug and unplug, with small fluctuation in insertion loss, high compressive strength, high installation density, high temperature resistance, and not easy to oxidize,also can used for small pipelines or small wall holes.


Pushable Pre-connector SC/APC Metal Connector Fiber Patch Cord Black For Through The Duct And Wall FTTHPushable Pre-connector SC/APC Metal Connector Fiber Patch Cord Black For Through The Duct And Wall FTTH

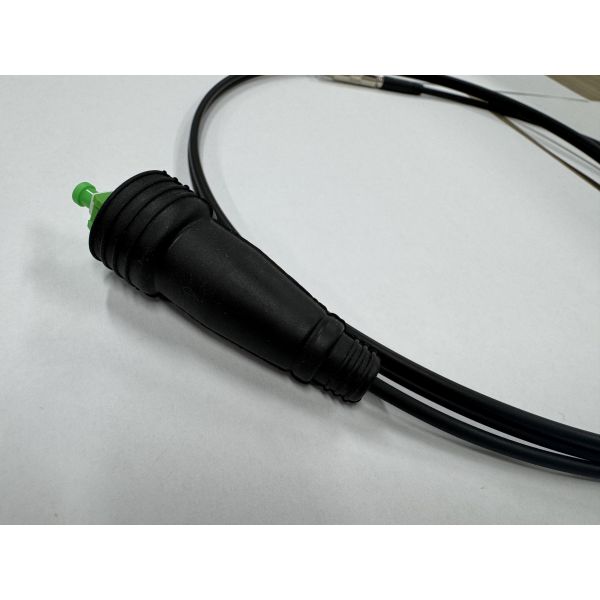

The one side is standard SC connectors with rubber seal, which is designed to connect with the outdoor fiber splitter boxes, rubber seal prevent water from entering.

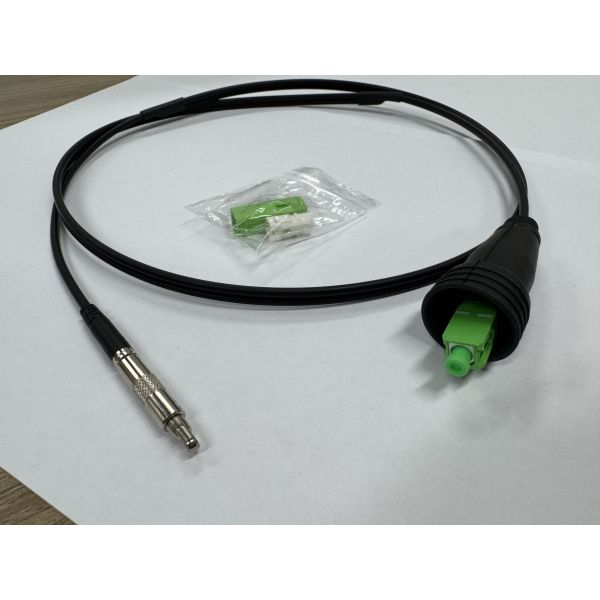

Pushable Pre-connector SC/APC Metal Connector Fiber Patch Cord Black For Through The Duct And Wall FTTH

The length can be customized to your needs. 1M,5M,10M,20M,50M,100M and more.
