Specifications
Model Number :
MPO-FC 12fiber Breakout cable
Connector Type :
MTP/MPO
Storage Temperature :
-40℃~+85℃
Fiber Grade :
OM3,OM4,OM5
MOQ :
100
Cable Color :
Aqua
Packaging Details :
Carton box
Brand Name :
YINGDA
Delivery Time :
5-8 working days
Insertion Loss :
≤0.2dB
Fiber Count :
8, 12,24
Product Name :
MTP MPO Cable
Certification :
CE, ISO9001
Place of Origin :
China
Price :
0.2USD-100USD
Payment Terms :
T/T,AliPay,PayPal
Supply Ability :
1000 pcs/day
Cable Jacket :
PVC LSZH
Description
MPO to FC APC Breakout Cable 9/125μm Single-mode 12Fiber MPO to FC Type B LSZH Custom Length for 40G/100G/400G Networks
MPO Fiber Optic Product Description

This product features MPO Male to MPO Female connectors and utilizes Single mode 9/125 10GB fiber. The model is a 12 fiber MPO cable with Type B (Key up, Key Up) polarity and an LSZH (Low Smoke Zero Halogen) jacket.

Our MPO patch cable is one of thousands of fiber optic cable assemblies available in-stock and ready to ship. The cable itself can have 8-144 cores, available in either single mode or multi-mode configurations.

Single-mode fiber options include G652D, G657A1, and G657A2 types. Multi-mode fiber options include 62.5/125, 10G OM2/OM3/OM4, or bending insensitive 10G multi-mode cable.

Yingda has strong product design and manufacturing capabilities for MPO/MTP products. We provide products specifically tailored to meet customer requirements and guarantee excellent performance and reliability.

MPO to MPO Cable SMF Features
  • High Speed and High Density: Premium quality single-mode fiber with MPO G657A2 cables provides secure and reliable connections, low insertion loss (IL≤0.35dB), and high return loss (RL≥60dB), supporting 10G/40G/100G applications
  • MPO Trunk Cable Application: Suitable for residential areas, industrial parks, commercial buildings, large data centers, dense cabling systems, fiber optic communication systems, cable television networks, telecommunication networks, LAN, GPON/EPON applications, wide area networks, and FTTX
  • Safety LSZH Jacket: Features LSZH low smoke zero halogen jacket material (coefficient of friction μ<0.2), offering fire resistance and minimal smoke and toxic fume production, operating within a temperature range of -20°C to +70°C
  • Fast Delivery: Available in-stock and ready to ship with lead times of approximately 2-3 working days
MPO Connectors Optical Parameters
Parameter SM Standard SM Elite MM Standard MM Elite
Insertion loss (dB) ≤0.7 ≤0.35 ≤0.7 ≤0.35
Return loss (dB) ≥60 ≥20

Durability (dB) ≤0.2, 500 times mating
Tensile strength (kgf) 10
Working temperature (°C) -20 to +70
Measurement wavelength (nm) 1310 850

Standards Compliance

IEC61754-7, IEC61755, Telcordia GR-1435-CORE, JIS C5982, TIA-604-5(FOCIS5), structured cabling per TIA-568-C, 10G fiber channel, 40G and 100G IEEE 802.3, etc.

Housing Colors

Green connectors + black boot (Single-mode), Yellow connector + black boot (Single-mode), Beige connector + black boot (OM1 & OM2), Aqua connector + black boot (OM3 & OM4), Violet connector + black boot (OM3 & OM4)

Geometry Parameters
Item X-axis Y-axis
Radius of curvature (mm) 500 (Min) 50 (Min)
Polishing angle 0-0.2 / 0+0.2 8-0.2 / 8+0.2
Item Min Max
Fiber height (nm) 1000 3000
Max fiber height error (nm) 600
Adjacent fiber height error (nm) -300 +300
Avg. fiber height error (nm) -300 +300
Central concave (nm) 300
LC/SC/FC Fiber Connectors
Parameter Single Mode Multimode
Connector polishing PC / APC PC
Insertion loss (dB) ≤0.3 ≤0.3
Return loss (dB) ≥50 / ≥60 ≥35
Repeatability (dB) ≤0.2, 1000 times mating
Working temperature (°C) -40 to +85
Measurement wavelength (nm) 1310 850
MPO MTP Trunk Cable Polarity Types
MPO MTP OM3 FTTH Breakout Cable 12F with FC Connector Fiber Optic 3mm Patch Cord MPO MTP OM3 FTTH Breakout Cable 12F with FC Connector Fiber Optic 3mm Patch Cord MPO MTP OM3 FTTH Breakout Cable 12F with FC Connector Fiber Optic 3mm Patch Cord
12 Cores Fiber Optic Cable 3.0mm Round LSZH
MPO MTP OM3 FTTH Breakout Cable 12F with FC Connector Fiber Optic 3mm Patch Cord MPO MTP OM3 FTTH Breakout Cable 12F with FC Connector Fiber Optic 3mm Patch Cord
Packing Information

Each unit is individually packed and includes a test report.

MPO MTP OM3 FTTH Breakout Cable 12F with FC Connector Fiber Optic 3mm Patch Cord
Work with MPO Cable together

MPO MTP OM3 FTTH Breakout Cable 12F with FC Connector Fiber Optic 3mm Patch Cord MPO MTP OM3 FTTH Breakout Cable 12F with FC Connector Fiber Optic 3mm Patch Cord MPO MTP OM3 FTTH Breakout Cable 12F with FC Connector Fiber Optic 3mm Patch Cord

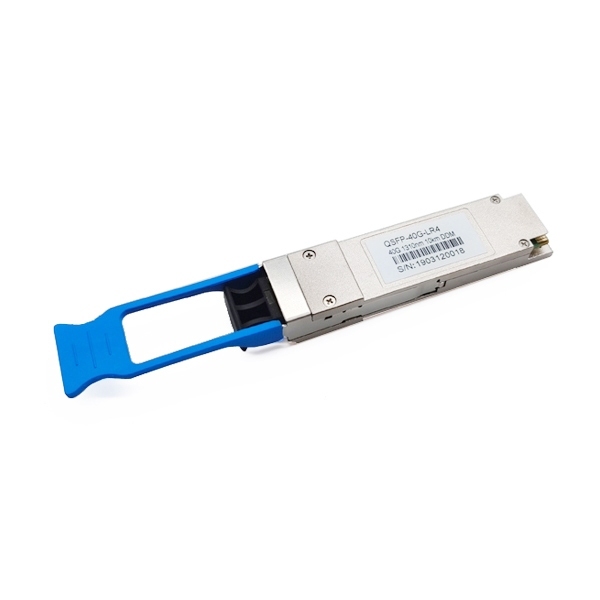

40G SFP Module MPO 96Cores patch panel LC-LC Duplex patch cord

YINGDA'S MPO Patch Cord Workshop
MPO MTP OM3 FTTH Breakout Cable 12F with FC Connector Fiber Optic 3mm Patch Cord MPO MTP OM3 FTTH Breakout Cable 12F with FC Connector Fiber Optic 3mm Patch Cord

YINGDA MPO cable production teams adopt multiple tests to strictly control quality for clients. 100% End-Face inspection and polarity test.
