New Products 8Cores FTTH Splitter Box Outdoor IP65 PP GF Material With 1x8 PLC Splitter 36 Cores Splicing for Connectors

This FTTH termination box features a total enclosed structure designed for reliable fiber optic distribution in various deployment scenarios.

• Total enclosed structure for maximum protection
• Material: PP with wet-proof, water-proof, dust-proof, and anti-aging properties
• Protection level: IP65 rated
• Organized cable routing with separate paths for cables, pigtails, and patch cords
• Cassette type SC/LC PLC adaptor installation for easy maintenance
• Flip-up distribution panel for convenient access
• Expression port for feeder cable placement
• Wall-mounted or pole-mounted installation options
• Suitable for both indoor and outdoor applications

• Working temperature: -40℃ to +85℃
• Relative humidity: ≤85% (+30℃)
• Atmospheric pressure: 70KPa to 106Kpa

• Insertion loss: ≤0.2dB
• UPC return loss: ≥50dB
• APC return loss: ≥60dB
• Life of insertion and extraction: >1000 times

• Grounding device isolated with cabinet, isolation resistance: IR≥2*10*MΩ/500V
• Withstand voltage between grounding device and cabinet: ≥3000V (DC)/min, no puncture, no flashover

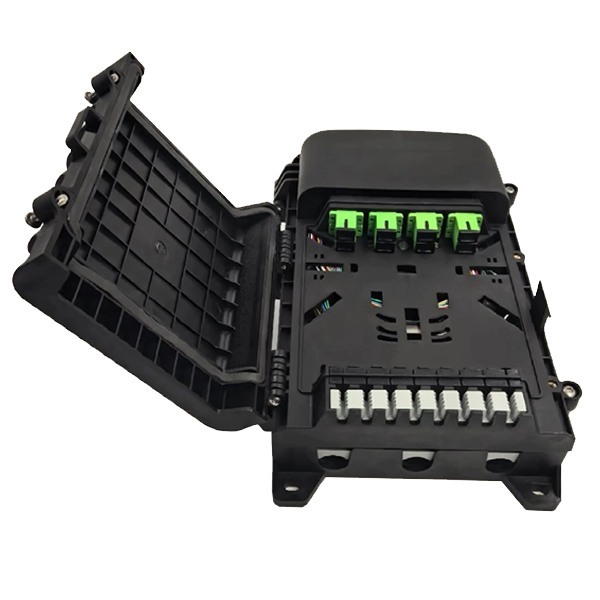

The box features a robust, weather-resistant plastic enclosure (likely UV-stabilized and impact-resistant), suitable for both indoor and outdoor installations. It has a hinged lid design for easy access, with secure fastening mechanisms (visible screws and latches) to ensure protection against dust, moisture, and physical damage.

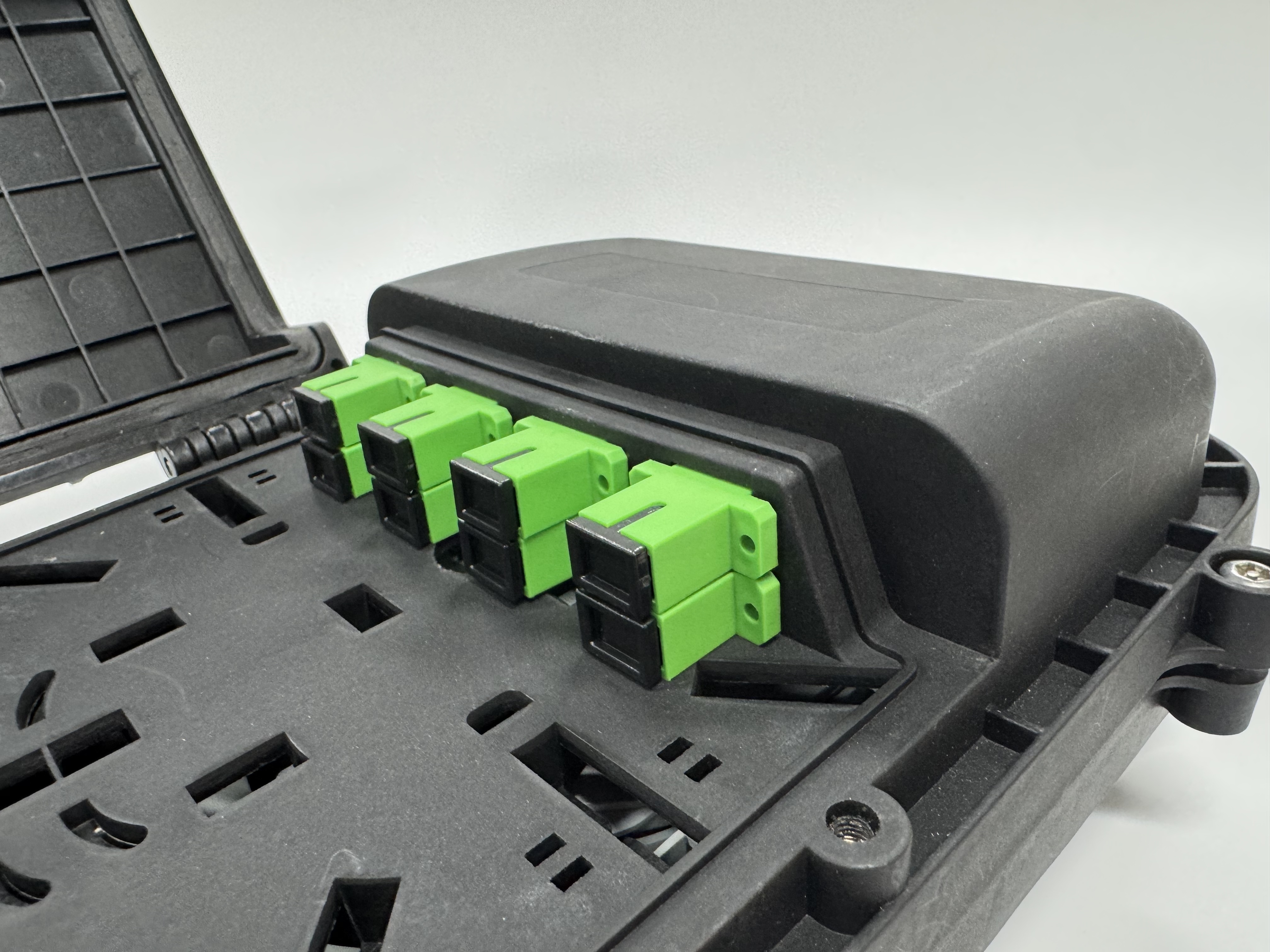

There are green LC fiber adapters (a common small-form-factor connector for high-density applications), enabling quick and reliable fiber connections. It also has splice trays where fiber splicing and storage occur. These trays have grooves and slots to neatly organize fiber optic cables, manage slack, and protect splices (either fusion or mechanical) from stress.

Inside, there are 3 splicing trays in the lower section, used for organizing and protecting optical fibers. Metal screws and fixtures are present to secure the internal parts. The 1*8 splitters are suitable for this box configuration.

Multiple ports at the bottom/side of the box allow for organized ingress and egress of fiber cables, supporting both drop cables (connecting to end-users) and feeder cables (connecting to the network backbone).

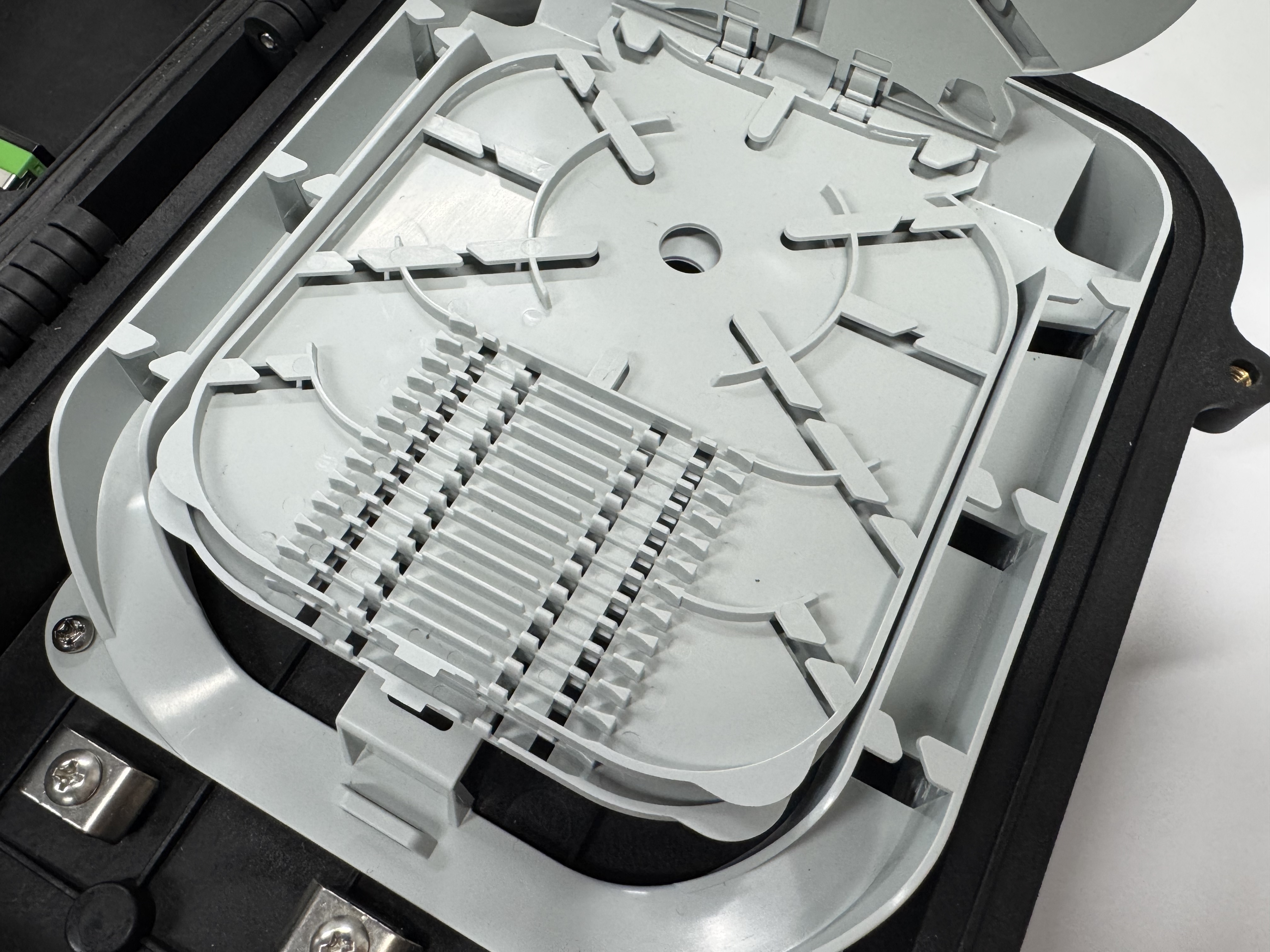

These trays have modular design with various ridges and compartments, which helps in managing different parts of the fiber optic cables and components efficiently, facilitating easy access and maintenance. The design supports multiple fibers, catering to different FTTH deployment scales from small residential clusters to larger multi-dwelling units.
