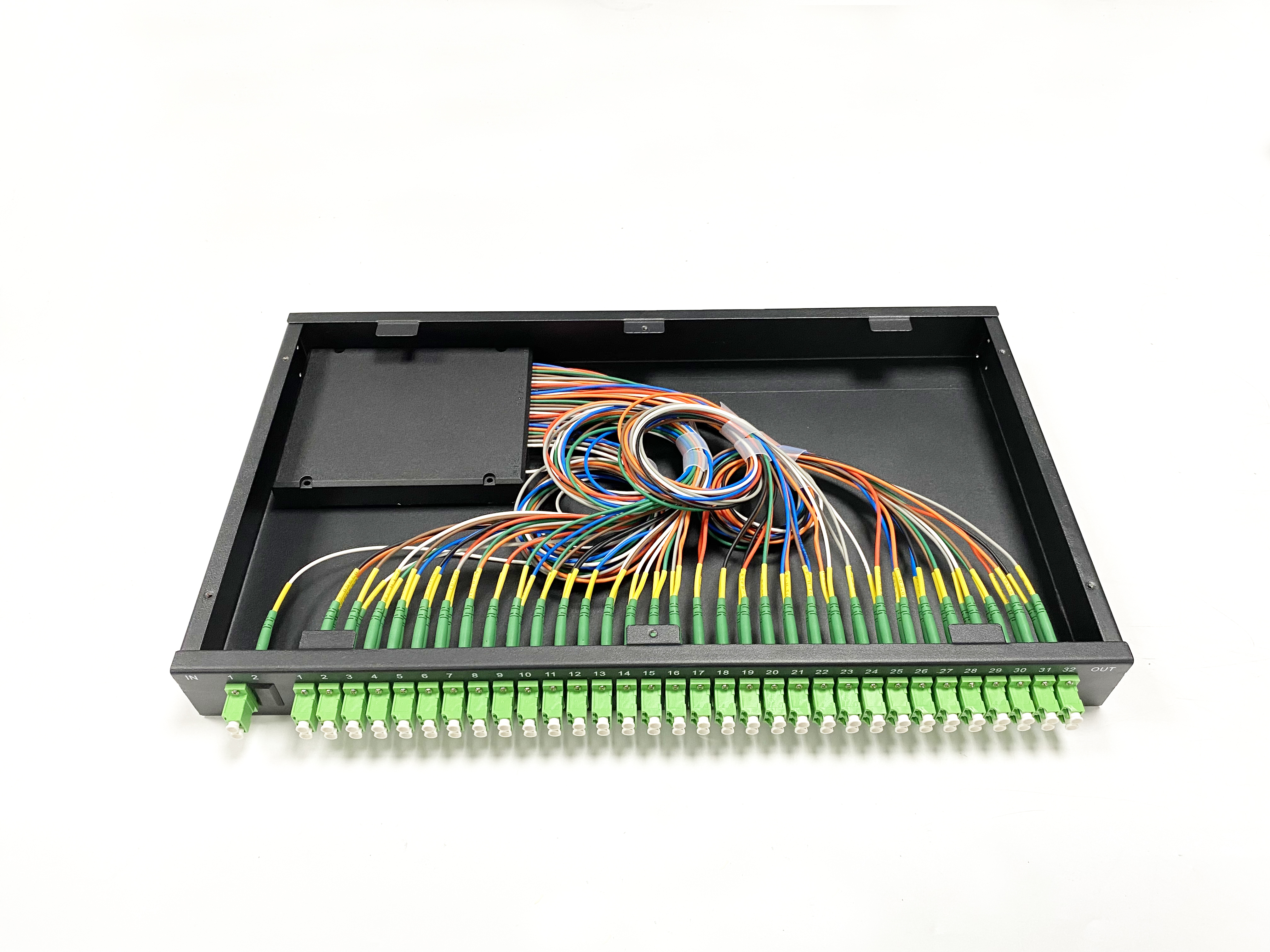

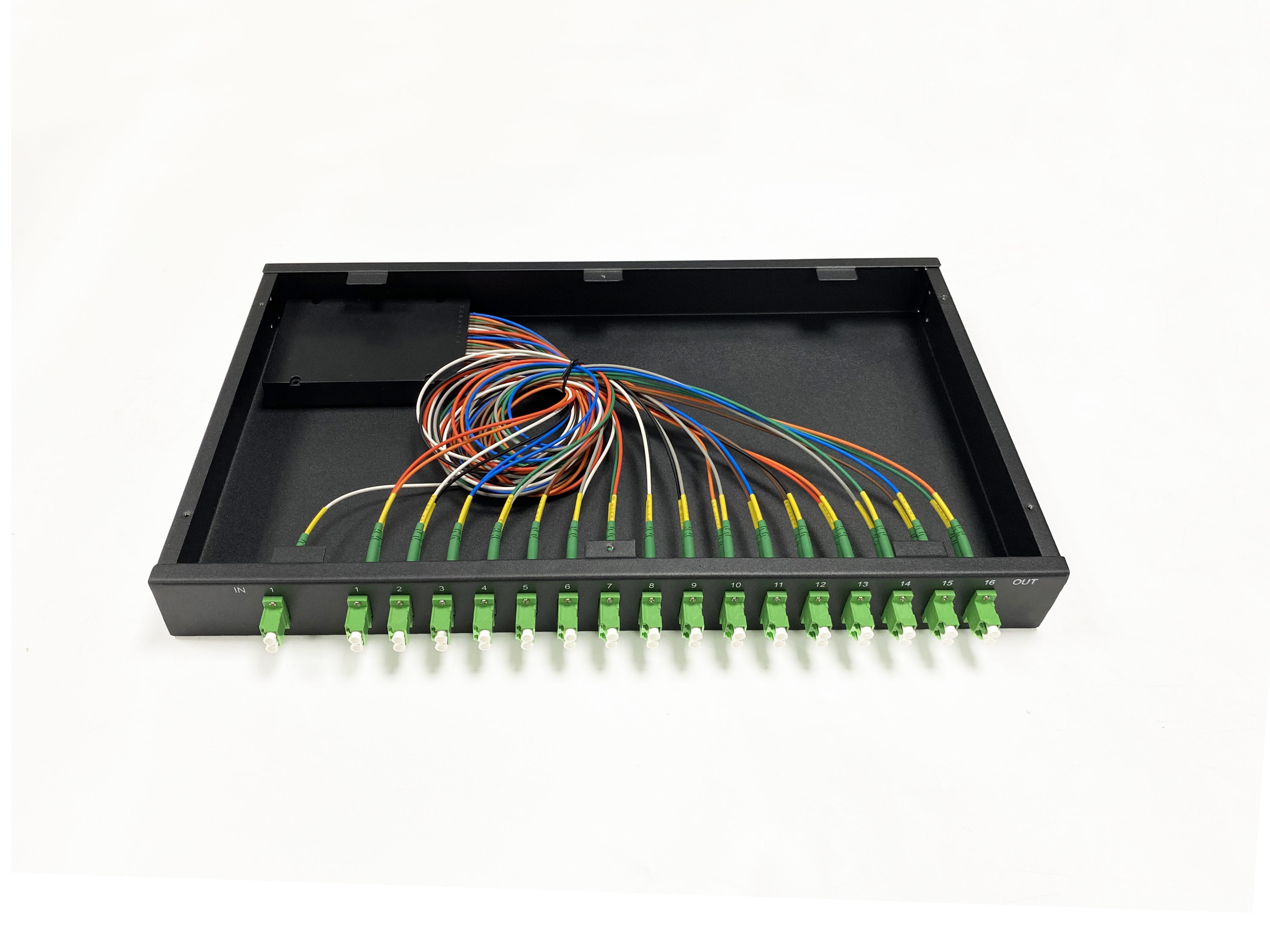

19 Inch Rack-Mount PLC Splitter Chassis 1x8 Splitter Optical Splitter Box for FTTH
19 Inch Rack-Mount PLC Splitter Chassis 1x8 Splitter Optical Splitter Box for FTTH
19 Inch Rack-Mount PLC Splitter Chassis 1x8 Splitter Optical Splitter Box for FTTH
19 Inch Rack-Mount PLC Splitter Chassis 1x8 Splitter Optical Splitter Box for FTTH
19 Inch Rack-Mount PLC Splitter Chassis 1x8 Splitter Optical Splitter Box for FTTH
19 Inch Rack-Mount PLC Splitter Chassis 1x8 Splitter Optical Splitter Box for FTTH
19 Inch Rack-Mount PLC Splitter Chassis 1x8 Splitter Optical Splitter Box for FTTH
19 Inch Rack-Mount PLC Splitter Chassis 1x8 Splitter Optical Splitter Box for FTTH
Specifications
Certification :
ISO
cable ouputs :
8 port SC simplex adaptor
Model Number :
FSM-108/SC
cable entry :
1ports for cable entry
MOQ :
100PCS
Delivery Time :
7-10 days
size :
430*250*1U mm
tray type :
Fixed 19" patch panel
Payment Terms :
T/T,Western Union,paypal,L/C
rack size :
19 inch
key word :
patch panel
Price :
negotiable
type :
rack mount patch panel
Supply Ability :
10000pcs per month
adapter :
SC, LC, FC,ST, E2000, etc
application :
optical distribution frame
Brand Name :
yingda
material :
cold rolled steel
Packaging Details :
1pc per box, 3pcs per carton box
features :
16 port ODF
Place of Origin :
china
color :
black
Description

19 Inch Rack-Mount PLC Splitter Chassis 1x8 Splitter Optical Splitter Box for FTTH

The 19 inch rack mount PLC splitter chassis is designed to house one micro type 1x8 PLC splitter in a standard 19-inch rack unit. It is widely used in optical distribution frames (ODF), fiber distribution boxes, and FTTH network termination points.

YINGDA's rack chassis splitters support optional connector types (SC/UPC, SC/APC) and various fiber cable lengths upon request. All products are manufactured and tested in accordance with GR-1209-CORE and GR-1221-CORE requirements, ensuring low insertion loss and stable optical performance.

Features

Applicable in the termination and 19'' standard structure

Cold rolled steel sheet SPCC, with electrostatic spraying, steel thickness 1.0mm,

Front adapter plate with number mark, easy for operation

Suitable for all kinds of interface like FC,SC,ST,LC,E2000 etc.

Black, gray or white color available.

Applications

  • FTTH/FTTx access networks
  • Optical cable distribution
  • Optical distribution frame (ODF)
  • CATV and telecom rooms

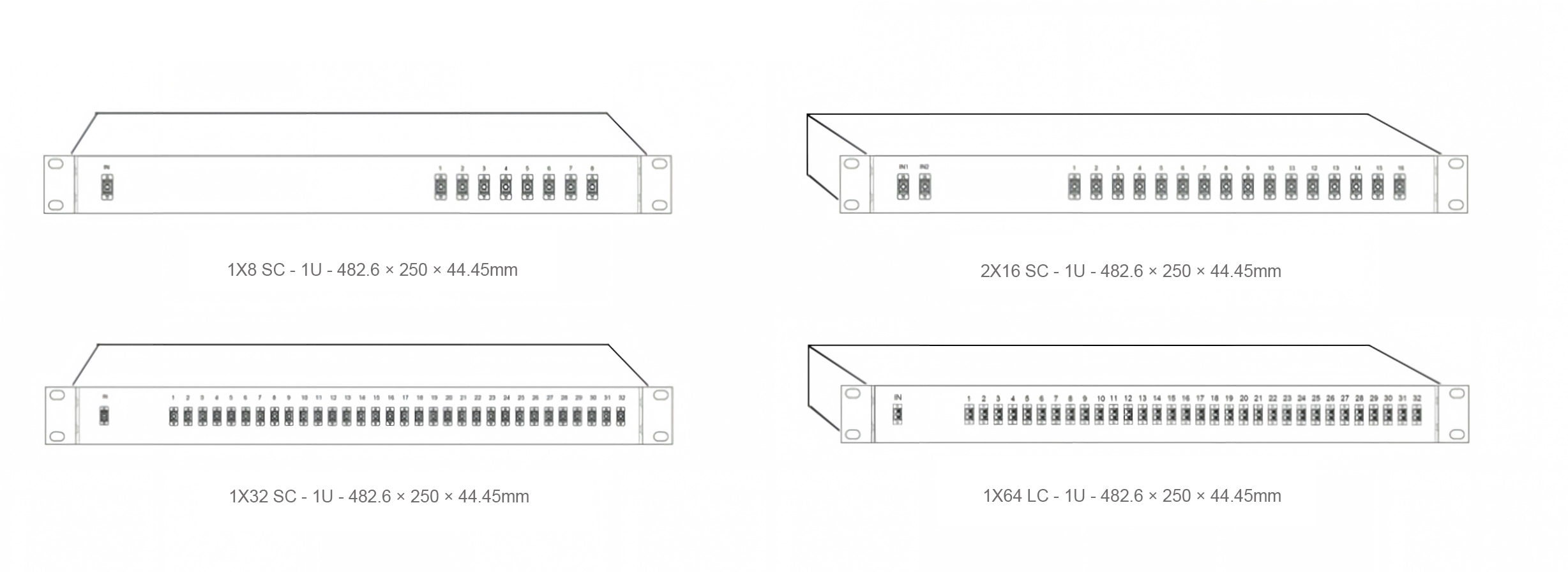

Specification

Model

Split ratio

Dimension (mm)

FSM-102/SC

1PC 1X2 SC

482*250*1U

FSM-202/SC

1PC 2X2 SC

482*250*1U

FSM-104/SC

1PC 1X4 SC

482*250*1U

FSM-204/SC

1PC 2X4 SC

482*250*1U

FSM-108/SC

1PC 1X8 SC

482*250*1U

FSM-208/SC

1PC 2X8 SC

482*250*1U

FSM-116/SC

1PC 1X16 SC

482*250*1U

FSM-216/SC

1PC 2X16 SC

482*250*1U

FSM-132/SC

1PC 1X32 SC

482*250*1U

FSM-232/SC

1PC 2X32 SC

482*250*1U

FSM-164/SC

1PC 1X64 SC

482*250*2U

FSM-264/SC

1PC 2X64 SC

482*250*2U


More rack amount types are available
19 Inch Rack-Mount PLC Splitter Chassis 1x8 Splitter Optical Splitter Box for FTTH
And also for the mini PLC splitter, ABS cassette Splitter

More pictures
19 Inch Rack-Mount PLC Splitter Chassis 1x8 Splitter Optical Splitter Box for FTTH 19 Inch Rack-Mount PLC Splitter Chassis 1x8 Splitter Optical Splitter Box for FTTH

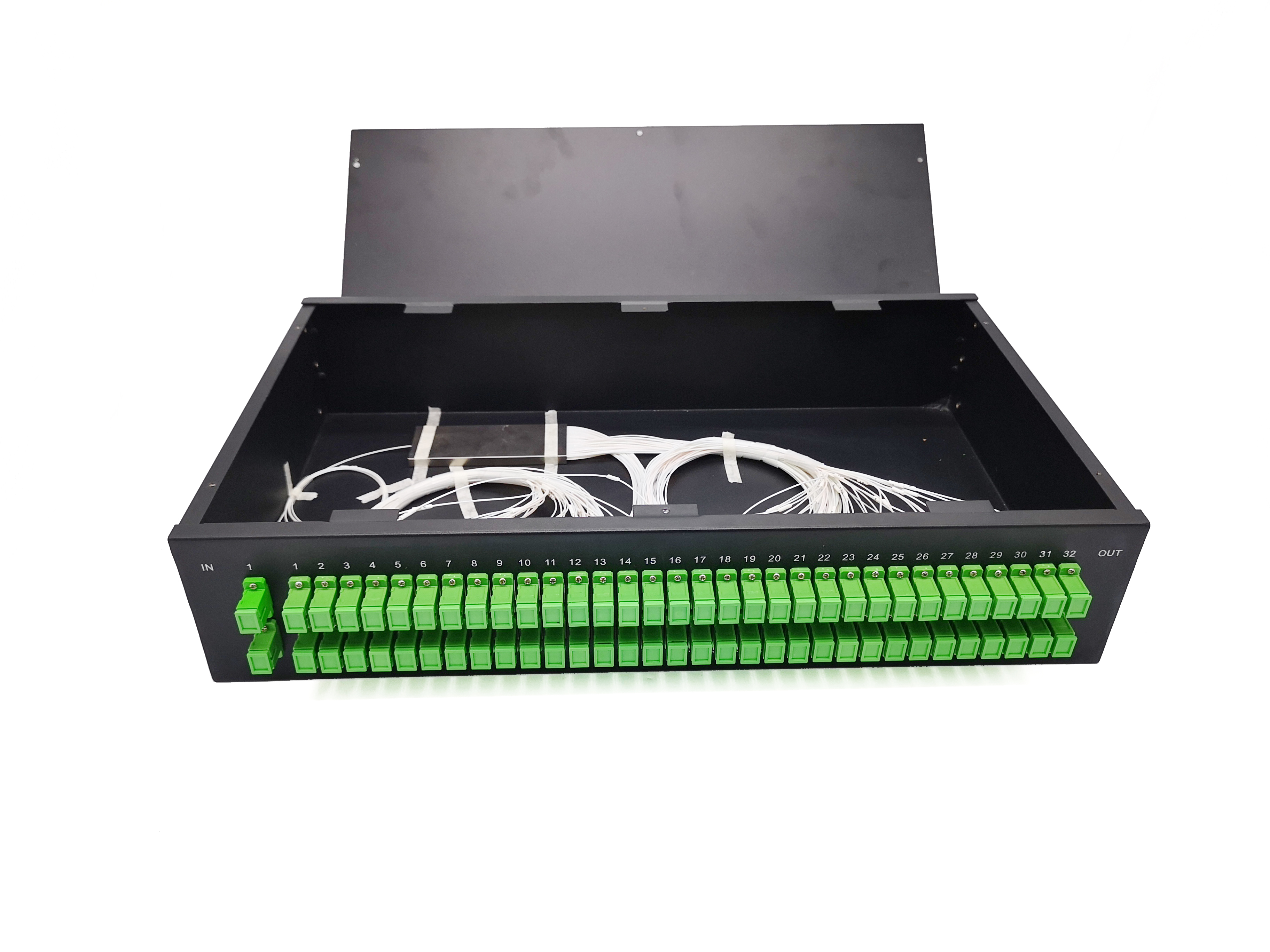

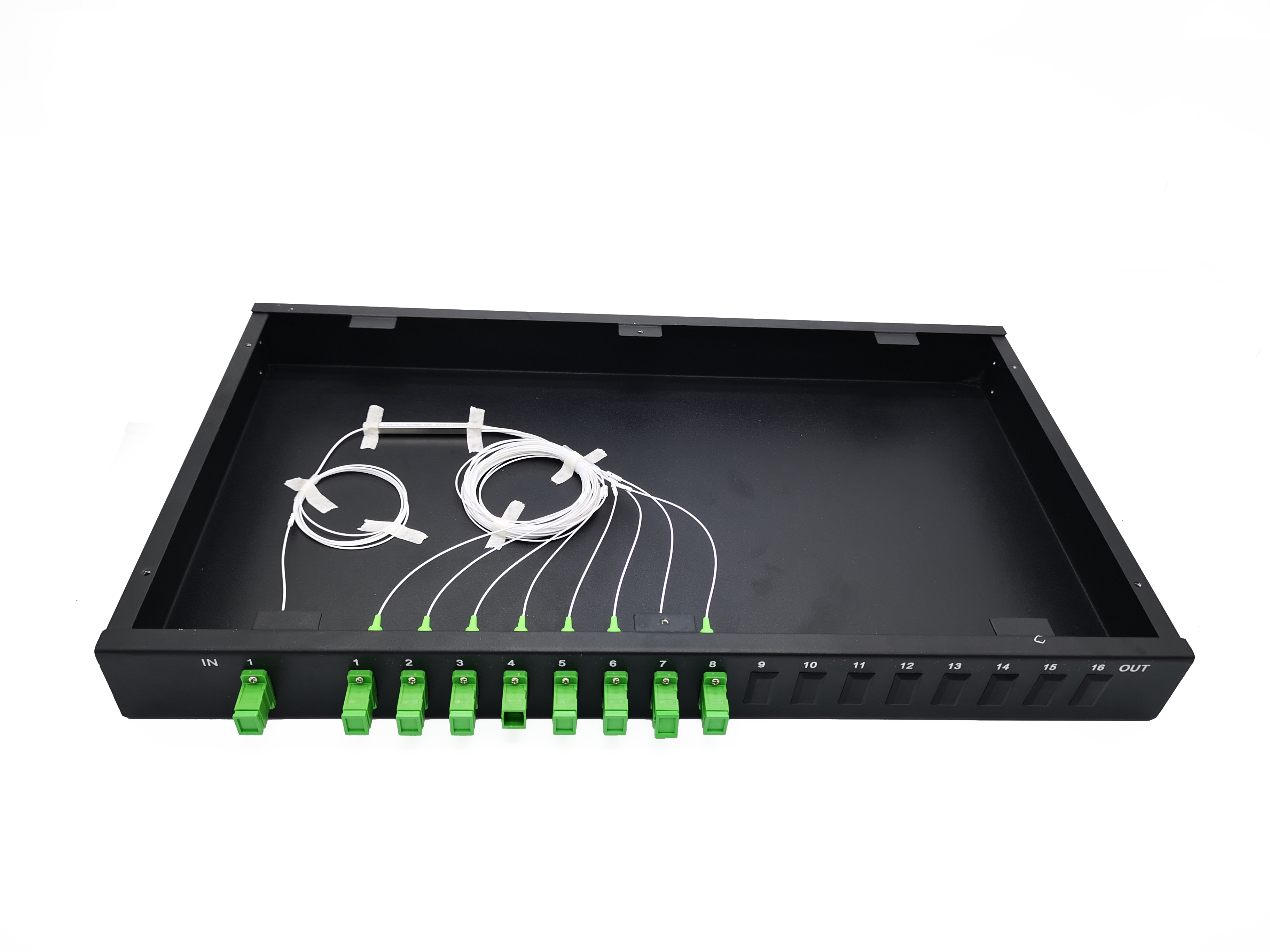

19in Rack mount 1x8 mini PLC splitter SC/APC 19in Rack mount 1x32 ABS Box PLC splitter LC/APC
19 Inch Rack-Mount PLC Splitter Chassis 1x8 Splitter Optical Splitter Box for FTTH 19 Inch Rack-Mount PLC Splitter Chassis 1x8 Splitter Optical Splitter Box for FTTH
19in Rack mount 1x32 ABS Box PLC splitter LC/APC 19in Rack mount 1x64 mini PLC splitter SC/APC
