Multi - Operator Fiber Optic Connection Box ODB CTO 48 Cores 2 Door IP30 Protection
Multi - Operator Fiber Optic Connection Box ODB CTO 48 Cores 2 Door IP30 Protection
Multi - Operator Fiber Optic Connection Box ODB CTO 48 Cores 2 Door IP30 Protection
Multi - Operator Fiber Optic Connection Box ODB CTO 48 Cores 2 Door IP30 Protection
Multi - Operator Fiber Optic Connection Box ODB CTO 48 Cores 2 Door IP30 Protection
Multi - Operator Fiber Optic Connection Box ODB CTO 48 Cores 2 Door IP30 Protection
Multi - Operator Fiber Optic Connection Box ODB CTO 48 Cores 2 Door IP30 Protection
Multi - Operator Fiber Optic Connection Box ODB CTO 48 Cores 2 Door IP30 Protection
Specifications
Brand Name :
YINGDA
Model Number :
FDB0248C
Certification :
ISO
Place of Origin :
china
MOQ :
1PCS
Price :
0.18USD-4.29USD
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
10K PCS / month
Delivery Time :
7-10DAYS
Packaging Details :
1pc/carton box, 4pcs/carton
Material :
pc+abs
color :
grey
fusion splice :
max. 96cores single fiber
max. sc adapter :
48 SC
max. splitter :
4pcs ABS 1:16 plc splitter module
tray qty :
max. 6pcs
application :
wall mount
features :
Fiber termination box FTB
type :
fiber distribution box FDB
Function :
optical splitter box OSB
Description

48Cores 2 Door Wall Mount Multi-operator Fiber Distribution Hub Termianl Box ODB CTO


It is an optical distribution box for Fiber to The Home application, pooling module for splicing, coupling ,and stirring up to 48 optical fibers. The modules can be stacked to support configuration of greater capacity or to allow the pooling between building operators and commercial operator. It allows the connection between the cable coming from the outside and the cable of the riser.

Specification

Model FDB0248C
Dimension(W*H*D) mm 450*180*150
Net weight 3.2kg
Splice tray qty 6 pcs
Max capacity 96 cores (6*16F) + 48 SC adapters
Splitter qty Max. 4 pcs 1:16 PLC splitter
Colour Grey
Working temperature -25°C ~ 55°C (5 to 95% Humedad relativa)
Protection Level IP30

Product Detail

Multi - Operator Fiber Optic Connection Box ODB CTO 48 Cores 2 Door IP30 ProtectionMulti - Operator Fiber Optic Connection Box ODB CTO 48 Cores 2 Door IP30 Protection

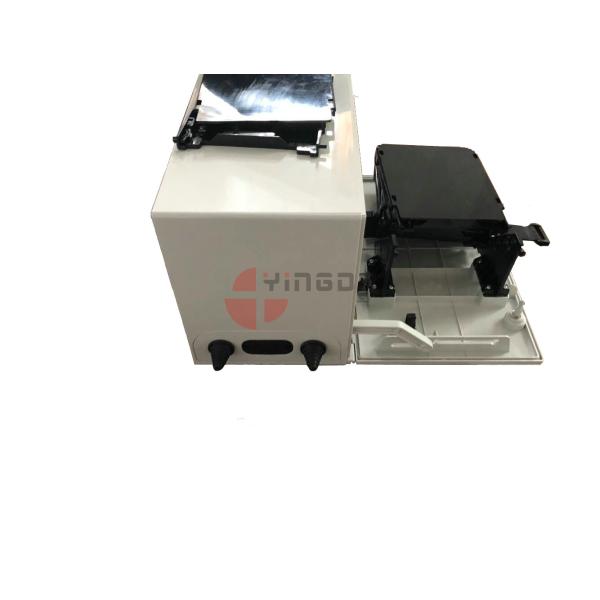

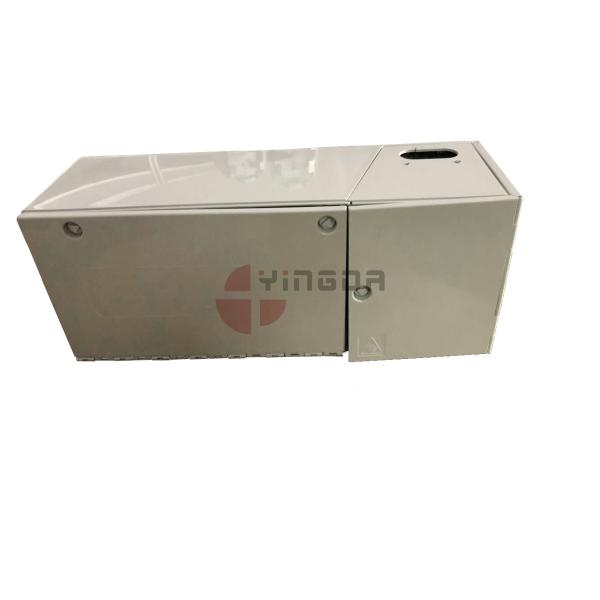

Oeverview: 2 doors, 2 holes at top and bottom. Plastic Wall mounted

Multi - Operator Fiber Optic Connection Box ODB CTO 48 Cores 2 Door IP30 ProtectionMulti - Operator Fiber Optic Connection Box ODB CTO 48 Cores 2 Door IP30 Protection

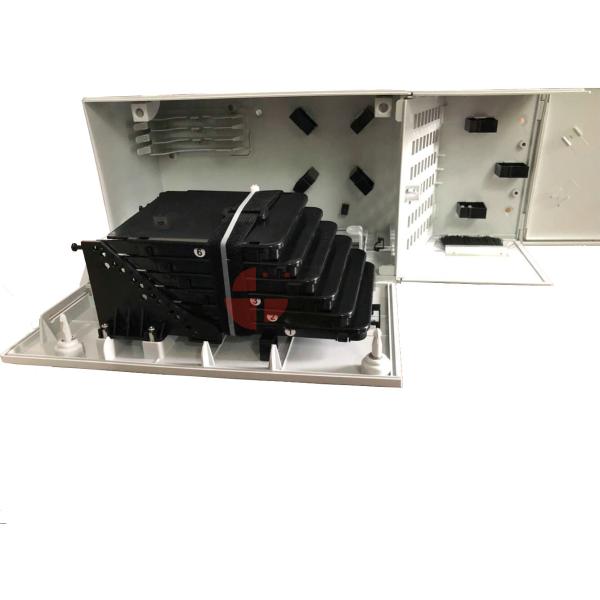

Cable entry at left side, 2 round +1 mid span. 6 splice tray can be take off by hand with plastic holder.

Multi - Operator Fiber Optic Connection Box ODB CTO 48 Cores 2 Door IP30 Protection Multi - Operator Fiber Optic Connection Box ODB CTO 48 Cores 2 Door IP30 Protection

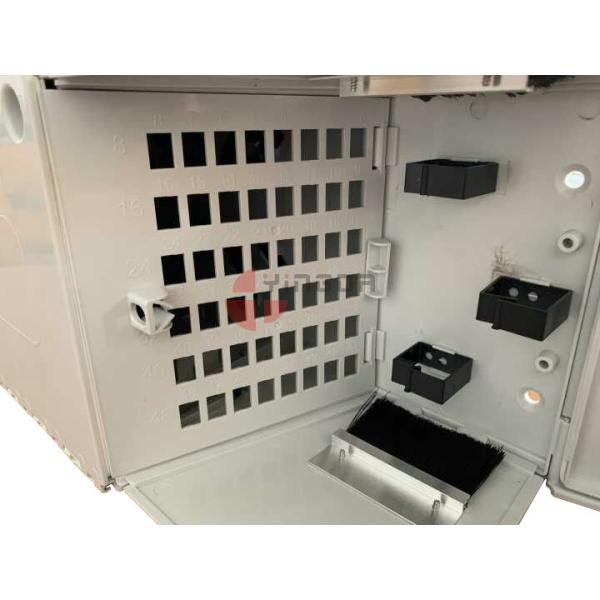

adapter panel 48SC divide the splitter, fusion and cable wiring, humanity design, good shape, light weight.

Multi - Operator Fiber Optic Connection Box ODB CTO 48 Cores 2 Door IP30 Protection Multi - Operator Fiber Optic Connection Box ODB CTO 48 Cores 2 Door IP30 Protection

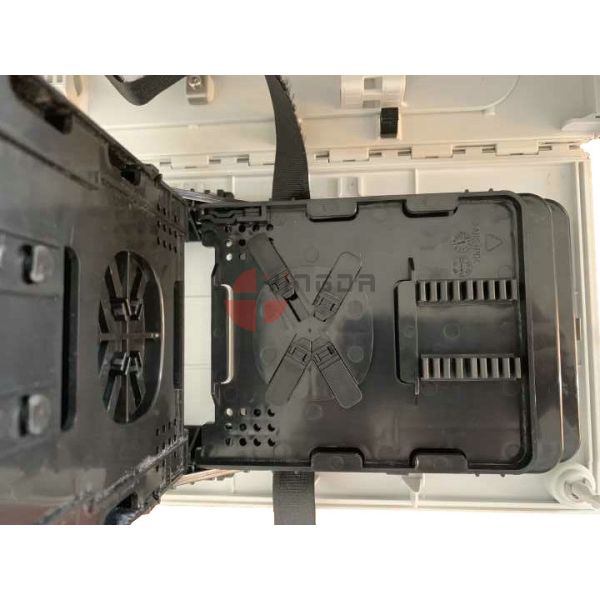

the splice tray is overlap with nylon tie fixed to hold it in space, each tray is 16cores fusion maximum. have enough fiber storage and management area.

Features

  • Separate compartments for splicing and patching. Each compartment has a door closed by a triangle key system
  • Possible scalability depending on the number of operators addressing the building
  • Optical cable access left with lashing system
  • Standardized dimensions, according to TELEFONICA recommendations.

Box Dimension

Size A*B*C (mm) Wall Installation SizeD*E(mm) Cable entry size(mm)
478*180*163 115*228 20

Multi - Operator Fiber Optic Connection Box ODB CTO 48 Cores 2 Door IP30 Protection

Wiring Diagram

Multi - Operator Fiber Optic Connection Box ODB CTO 48 Cores 2 Door IP30 Protection
