Specifications
Brand Name :
Yingda
Model Number :
FDB0296D
Certification :
ISO
Place of Origin :
china
MOQ :
100pc
Price :
1.0USD-18.6USD
Payment Terms :
L/C, T/T, Western Union,
Supply Ability :
50000pcs/month
Delivery Time :
5days
Packaging Details :
1pc/box, 5pcs/carton box
Material :
pc abs
color :
gray
max fusion :
96 cores
product name :
fiber optic distribution box, 96cors fiber box
size :
490*400*150mm
adapter :
SC
splitter :
mini type max. 1pc 1x64 or 2x64
cable port :
6pcs round, 1 mid span
Description

High Density FTTH 96 Fibers 2:32 Optical Splitter Termination Distribution Box Enclosure

96cores fiber termination box provides a high density wall mounted solution for next generation networks, which aims to provide and manage maximum numbers of fiber termination in a limited space. It is normally installed in the way of wall mounting or pole mounting.

Features

  • 6 cable ports, 1mid span
  • Industrial standard user interface,max. can hold 96 pcs SC
  • Made of high impact engineering plastic
  • Can accommodate 1x4,1x8 & 1x16,1x32,1X64 PLC splitter LGX module or adapter panel, 2xN series is available
  • Anti-UV, Ultra violet resistant and rainfall resistant
  • Outdoor wall mount or pole mount
  • Up to 96 FTTH drop cables
  • outdoor use, IP65

Specification

Model FDB0296D
Dimension(W*D*H)mm 490*400*150mm
Max. Capacity 96 fibers
Cable ports 6ports
Cable diameter(mm) 6:Ø20;2:Ø16
Max. adapter 96 SC
Max. Splitter PLC 1:64(1pc); PLC 1:32(2pc) steel tube or LGX module
Color gray

More products

96 Fibers 2/32 Optical Splitter Termination Distribution Box Enclosure High Density96 Fibers 2/32 Optical Splitter Termination Distribution Box Enclosure High Density

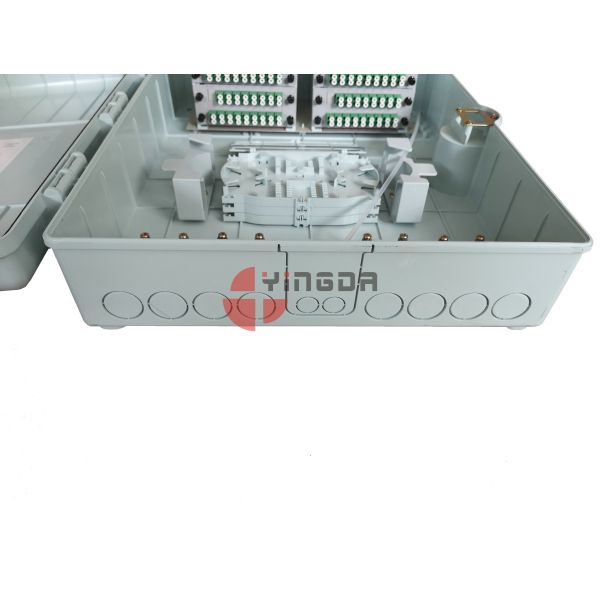

cable ports" 1mid span, 6round ports with rubber seal, suitable for outdoor use.

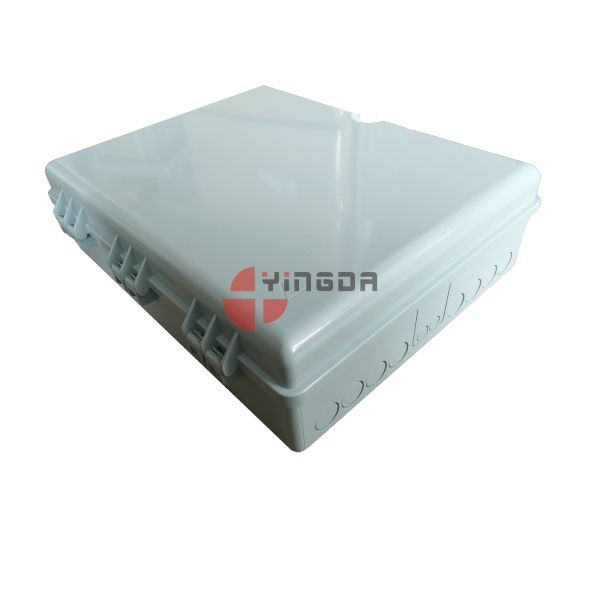

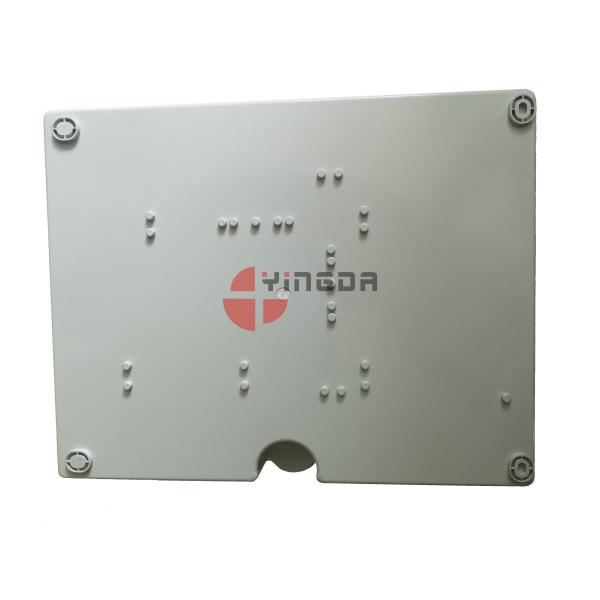

total enclosure, wall mount with screws at back, can use metal pole mount kits if need.

96 Fibers 2/32 Optical Splitter Termination Distribution Box Enclosure High Density96 Fibers 2/32 Optical Splitter Termination Distribution Box Enclosure High Density

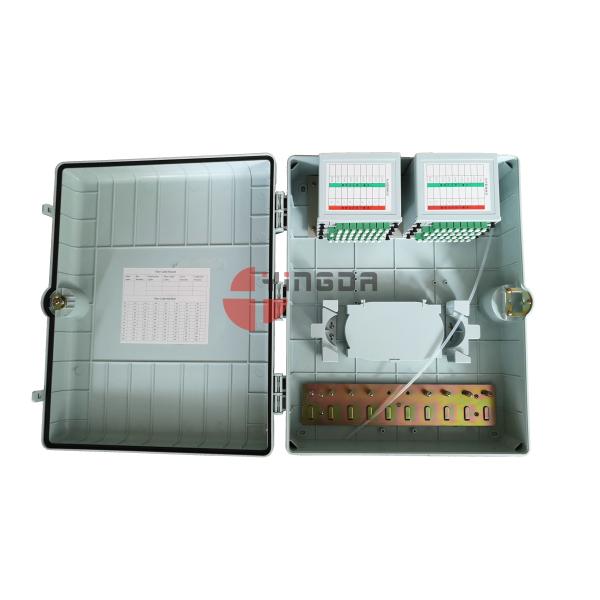

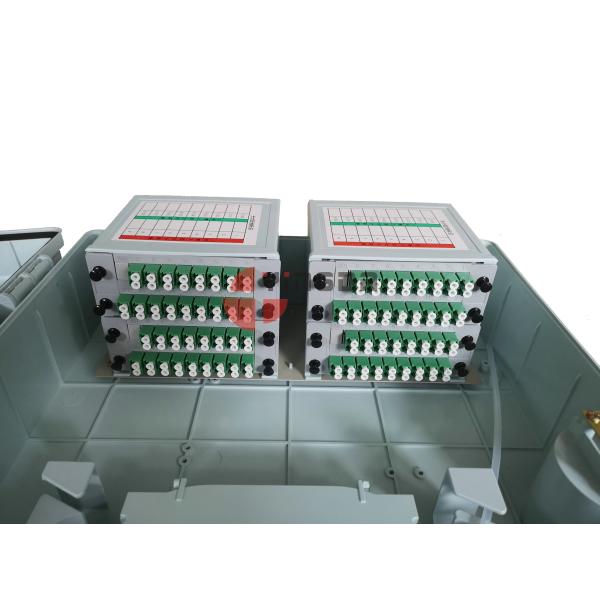

waterproof rubber seal all round the box to prevent water, 2pcs 2x32 LGX cassette can be insert.

96 Fibers 2/32 Optical Splitter Termination Distribution Box Enclosure High Density 96 Fibers 2/32 Optical Splitter Termination Distribution Box Enclosure High Density

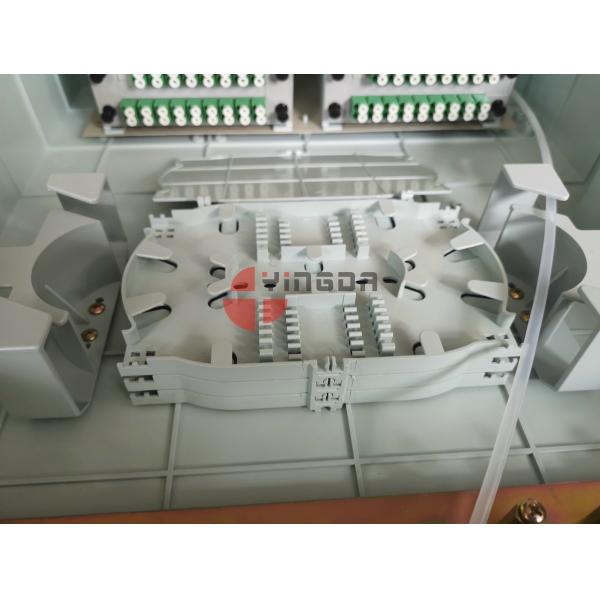

4pcs 24 cores fusion splice tray, total 96cores with cable ties and white buffer tube to protect ribbon fiber, there is enough fibre storage and management sapce.

96 Fibers 2/32 Optical Splitter Termination Distribution Box Enclosure High Density96 Fibers 2/32 Optical Splitter Termination Distribution Box Enclosure High Density

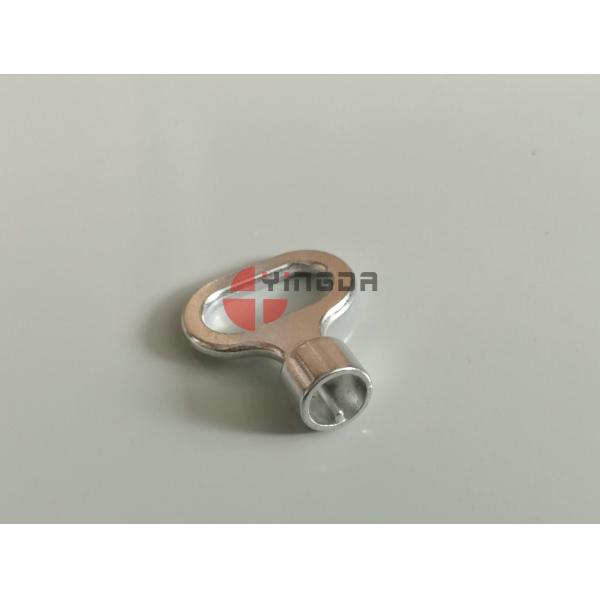

metal key with special design, anti-thief, can not be open by hand, long time use.

96 Fibers 2/32 Optical Splitter Termination Distribution Box Enclosure High Density 96 Fibers 2/32 Optical Splitter Termination Distribution Box Enclosure High Density

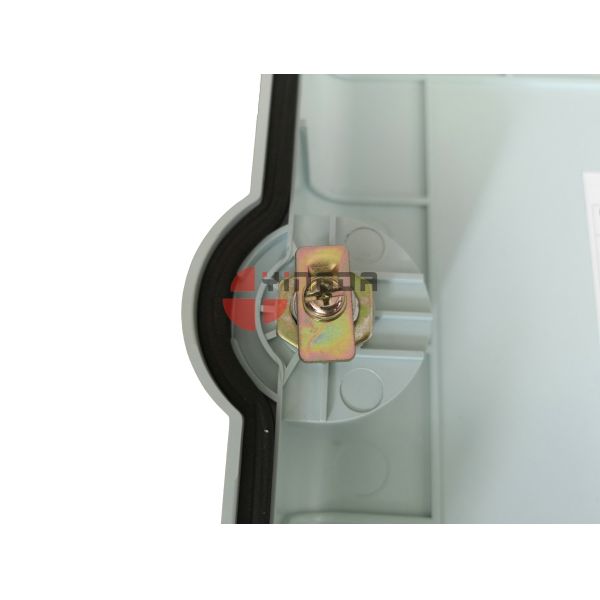

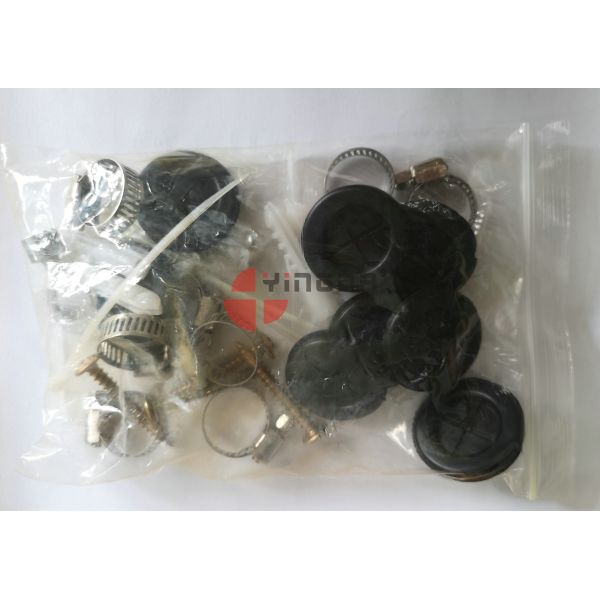

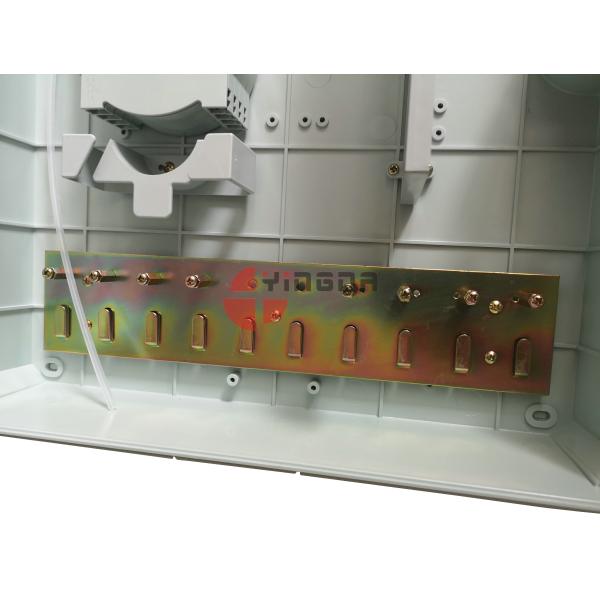

metal cable entry and exit fixing plate, better for cable managment, all accessories for mounting is included with plastic bag, which will be put in the box.
