Specifications
Brand Name :
YINGDA
Model Number :
MPO Hydra cable
Certification :
ISO SGS ROHS
Place of Origin :
china
MOQ :
100 pcs
Price :
0.2USD-100USD
Payment Terms :
Western Union,T/T
Supply Ability :
10,000 pcs per month
Delivery Time :
7days after payment
Packaging Details :
1 pc/ box, 160 pcs/carton box
connector :
MPO MTP male
fiber type :
OS1 9/125UM
Cable type :
Hydra cable
Fiber count :
12 Fibers SC LC simplex
Insertion loss :
<0.3dB
Cable length :
As your requirement
Material :
LSZH
Cable Color :
Yellow, Green, Blue, as your request
Packing :
Plastic bag
Description

YINGDA High-Performance MTP MPO Cable for Long-Lasting Fiber Optic Connections


MPO/MTP Fiber optic patch cable consists of multi core fiber optic cable and corresponding 4/8/12/24 core high density MPO MTP connector. The connector might be female or male with guide pin. The cable from 4-144core, single mode or multi mode, the single mode fiber including G652D G657A G657A2, the multi mode fiber including 62.5/125um. 10G OM2/OM3/OM4, OR BENDING INSENSITIVE 10G multi-mode cable.


YINGDA High-Performance MTP MPO Cable for Long-Lasting Fiber Optic ConnectionsYINGDA High-Performance MTP MPO Cable for Long-Lasting Fiber Optic Connections

YINGDA High-Performance MTP MPO Cable for Long-Lasting Fiber Optic ConnectionsYINGDA High-Performance MTP MPO Cable for Long-Lasting Fiber Optic Connections

8 Fiber MPO Connector Description


MPO Available in 4~48 fibers versions as well as multi-mode (62.5/125, 10G OM2 / OM3 / OM4, Bend-insensitive fiber, etc.) and single-mode (G652D, G657A1 etc.) fiber types.


YINGDA products are 100% tested at our factory to deliver optimal performance and reliability.


MPO Breakout Cable Features

  1. MPO / MTP connector interface patchcord.
  2. Choices of different cable structure to cater for different installation needs.
  3. Available in 4/8/12/24/48 cable fibers from round or ribbon optical cable.
  4. Improves and simplifies fiber routing, decreases fiber management space.
  5. Comply with IEC 61754-7, Telcordia GR-1435-CORE, RoHS.


MPO MTP Cable Specification

Single mode

Multimode

Insertion Loss

≤0.3dB

≤0.3dB

Return Loss

≥50dB (PC)

≥20dB

Repeatability

≤0.1

≤0.1

Durability

≤0.2 dB typical change, 1000 matings

≤0.2 dB typical change, 1000 matings

Interchangeability

≤0.2dB

≤0.2dB

Tensile strength

≥10kg

≥10kg

Operating Temperature

-40 to + 80°C

-40 to + 80°C

Storage Temperature

-40 to + 80°C

-40 to + 80°C


MPO MTP Cable Application


  1. installation in horizontal patch extension from consolidation point to the workstation outlets.
  2. High Density Fiber Management.
  3. Telecommunications networks and Broadband / CATV networks.
  4. DACS.
  5. LAN/WAN Premises


MPO MTP Cable Order information


P/N

Description

MPOmA-12LC-S62

MPO Fan-out patch cord, OS2 (G652D),

MPO/APC Male-12xLC UPC 1m Yellow

MPOmA-62LC-S62

MPO Fan-out patch cord, OS2 (G652D),

MPO/APC Male-6xDuplex LC UPC 1m Yellow

MPOmA-12LC-S67

MPO Fan-out patch cord, SM (G655A),

MPO/APC Male-12xLC UPC 1m Yellow

MPOmA-62LC-S67

MPO Fan-out patch cord, SM (G655A),

MPO/APC Male-6xDuplex LC UPC 1m Yellow

MPOm-62LC-S62-U

MPO Fan-out patch cord, OS2 (G652D),

MPO/APC Male-6xDuplex LC UPC 1m Yellow uni-boot

MPOm-62LC-S67U

MPO Fan-out patch cord, SM (G655A),

MPO/APC Male-6xDuplex LC UPC 1m Yellow uni-boot



MPO MTP Connector Assembly cable structure

YINGDA High-Performance MTP MPO Cable for Long-Lasting Fiber Optic Connections

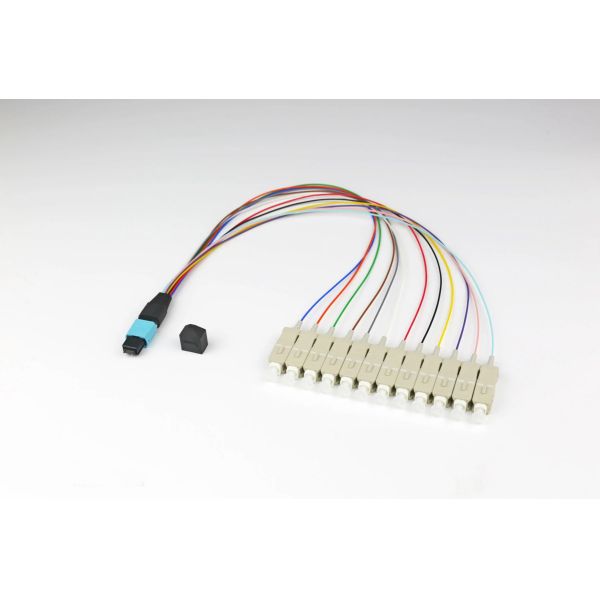

More MPO to LC SC Fanout cable picture


YINGDA High-Performance MTP MPO Cable for Long-Lasting Fiber Optic ConnectionsYINGDA High-Performance MTP MPO Cable for Long-Lasting Fiber Optic Connections

YINGDA High-Performance MTP MPO Cable for Long-Lasting Fiber Optic ConnectionsYINGDA High-Performance MTP MPO Cable for Long-Lasting Fiber Optic Connections
