Specifications
Brand Name :
YINGDA
Model Number :
UPB
Certification :
ISO,CE
Place of Origin :
China
MOQ :
100pcs
Price :
0.14USD-10USD
Payment Terms :
T/T
Supply Ability :
50000pcs per month
Delivery Time :
2-5days
Packaging Details :
30pcs/carton box
Dimension :
121*114*45mm
Material :
Alluminum alloy
Breaking load :
5KN
Fixtion point :
3 points
Cable type :
OPGW, ADSS cable
Bracket type :
tension clamp
application :
pole mounted
Weight :
0.2kg
Description

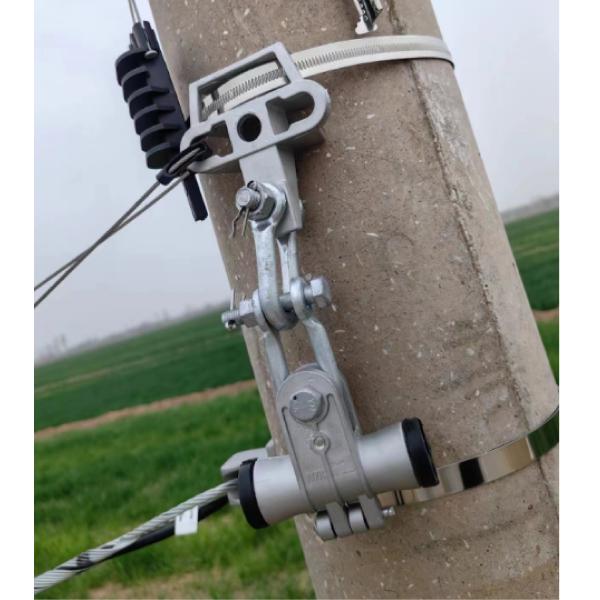

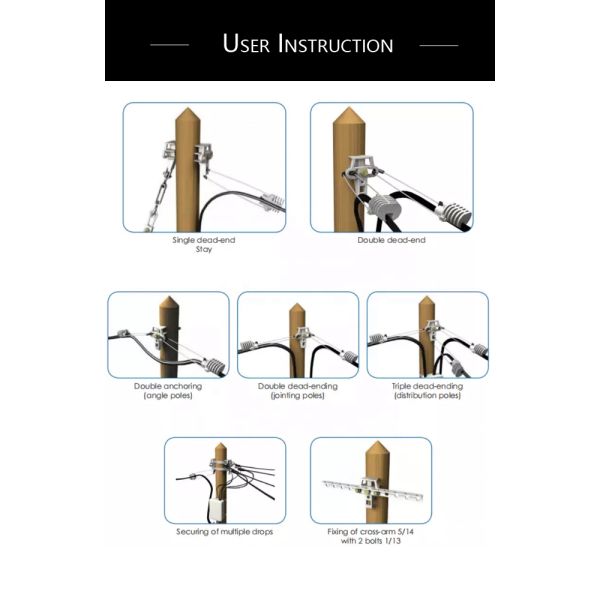

UPB bracket is manufactured from aluminum alloy, high mechanical strength and long lasting, widely used in fiber optic cable deployment system. It is used for the installation of 1 to 3 parallel cables or 5 drop wires, and good stay system on all types of poles like wooden, metal or concrete materials with 14 / 16 mm bolts or with two 20 mm bands. Meanwhile, the UPB bracket can used as a plate for the installation of cross-arms 5/14 and 5/15.

UPB Bracket Features

  • Easy installation and light weight;
  • Fixed to the pole by 2 stainless steel band (20 mm) or 1 bolts 14~16mm diameter;
  • Provide the principal of all in one device, by offering up to 5 clamping points;
  • High breaking load allows withstand a sufficient load without anchor clamp slip or break;
  • Material is aluminum alloy, passivized ensure high mechanical strength, long life span;
  • The installation can be proceed on the poles of walls, wooden, metal concrete material made, by using stainless steel band or bolts.

UPB Bracket Specification

Model UPB

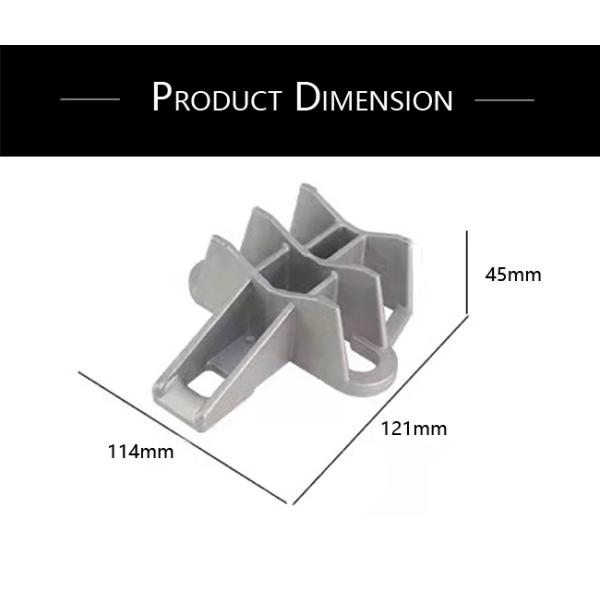

Dimension(L*W*D) 121*114*45mm
Material Aluminum alloy
Bracket type Tension
Application Pole
Span 70-200 meters
Max. Breaking Load (MBL) 5KN
Net weight 200g
