GPON FDB Inline 96 Cores PP Black 24 Ports SC Optical Fiber Splitter Access Terminal Closure
GPON FDB Inline 96 Cores PP Black 24 Ports SC Optical Fiber Splitter Access Terminal Closure
GPON FDB Inline 96 Cores PP Black 24 Ports SC Optical Fiber Splitter Access Terminal Closure
GPON FDB Inline 96 Cores PP Black 24 Ports SC Optical Fiber Splitter Access Terminal Closure
GPON FDB Inline 96 Cores PP Black 24 Ports SC Optical Fiber Splitter Access Terminal Closure
GPON FDB Inline 96 Cores PP Black 24 Ports SC Optical Fiber Splitter Access Terminal Closure
GPON FDB Inline 96 Cores PP Black 24 Ports SC Optical Fiber Splitter Access Terminal Closure
GPON FDB Inline 96 Cores PP Black 24 Ports SC Optical Fiber Splitter Access Terminal Closure
GPON FDB Inline 96 Cores PP Black 24 Ports SC Optical Fiber Splitter Access Terminal Closure
GPON FDB Inline 96 Cores PP Black 24 Ports SC Optical Fiber Splitter Access Terminal Closure
Specifications
Brand Name :
YINGDA
Model Number :
FDB0224G-108SC24
Certification :
ISO, SGS, ROHS
Place of Origin :
china
MOQ :
200 pcs
Price :
negotiable
Payment Terms :
T/T, Western Union
Delivery Time :
1 week
Packaging Details :
1pc / box, 4 pcs / carton
material :
PP
color :
black
dimension :
385*245*130mm
cable exit :
24 ports figure 8 drop cable
cable entry :
1uncut ports for10-17.5mm cable diameter
drop cable diameter :
4 mm or 7.5 mm drop cable
box type :
96 cores splice closure
adapter qty :
24 pcs SC fiber adapter
splitter`type :
2 pcs1*8 passive optical splitter
Description

GPON FDB Inline 96 Cores PP Black 24 Ports SC Optical Fiber Splitter Access Terminal Closure

FTTH drop cable type fiber optic cable joint box / closure features with ruggedness, which is ested under harsh conditions and stand up to even the most severe conditions of moisture, vibration and extreme temperatures. Humanized design helps user get better experience and safer operating environment.

Features

Dis-mountable adaptor panel

Support midspan termination

Easy operation and installation

Rotatable and dis-mountable splice tray for easy splicing

Product details

GPON FDB Inline 96 Cores PP Black 24 Ports SC Optical Fiber Splitter Access Terminal Closure GPON FDB Inline 96 Cores PP Black 24 Ports SC Optical Fiber Splitter Access Terminal Closure

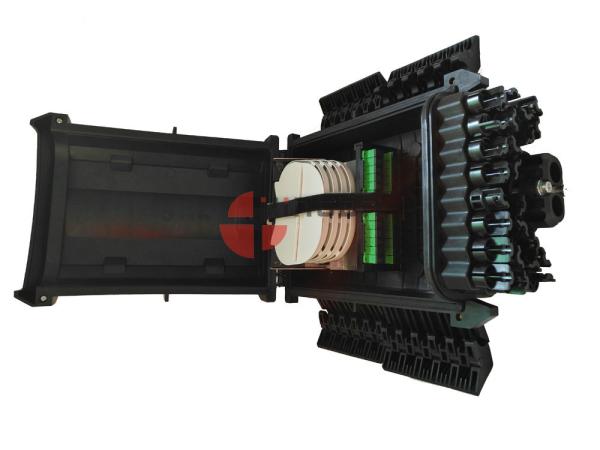

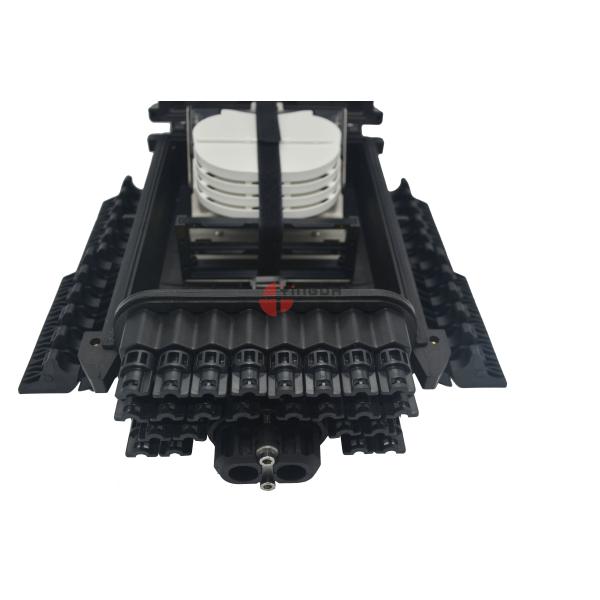

Empty Box:1 uncut inlet port, 24pcs Completed Box: 2pcs 1:8 plc splitter + 24pcs

ftth drop cable outlets SC/APC adapter panel

GPON FDB Inline 96 Cores PP Black 24 Ports SC Optical Fiber Splitter Access Terminal Closure GPON FDB Inline 96 Cores PP Black 24 Ports SC Optical Fiber Splitter Access Terminal Closure

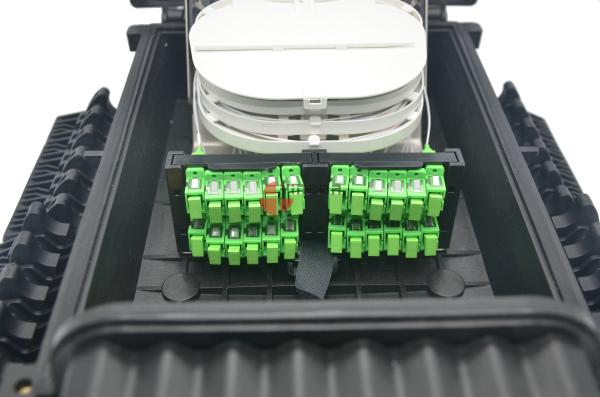

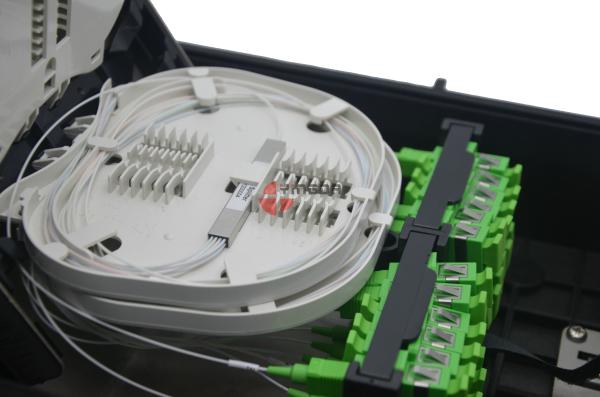

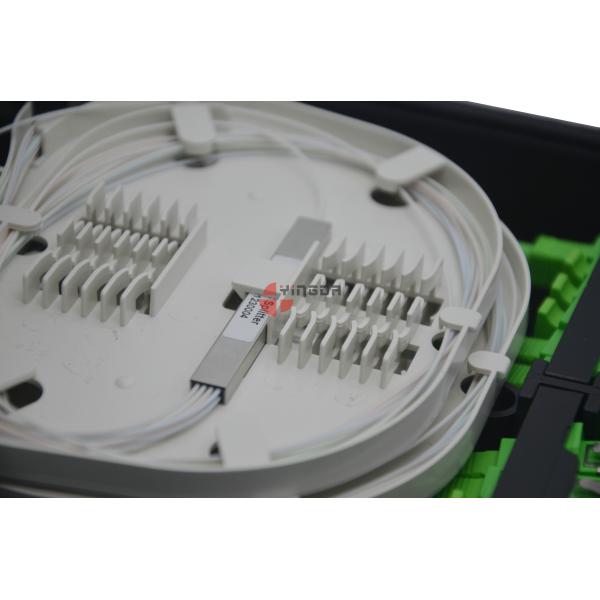

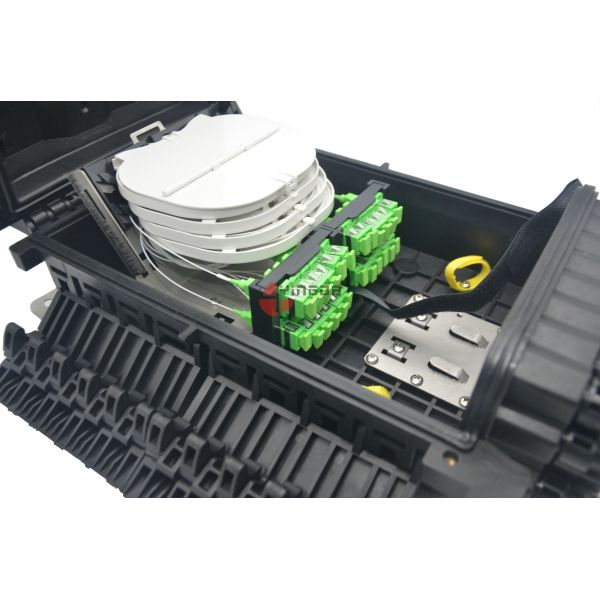

Inside view: 24 pcs SC couplers+ cable fixtion; Splitter tray: the tray can max. fusion 12pcs

metal sheet can be small or big size load 1 to 8 optical splitter white

GPON FDB Inline 96 Cores PP Black 24 Ports SC Optical Fiber Splitter Access Terminal Closure GPON FDB Inline 96 Cores PP Black 24 Ports SC Optical Fiber Splitter Access Terminal Closure

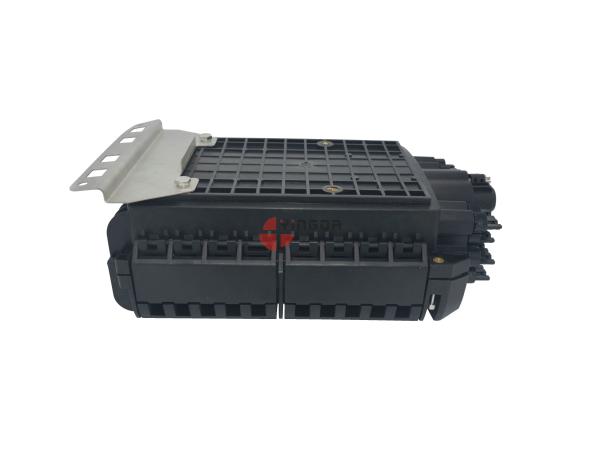

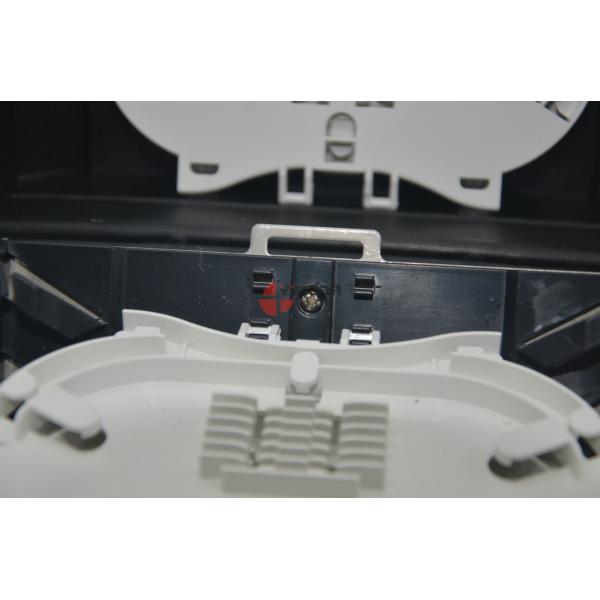

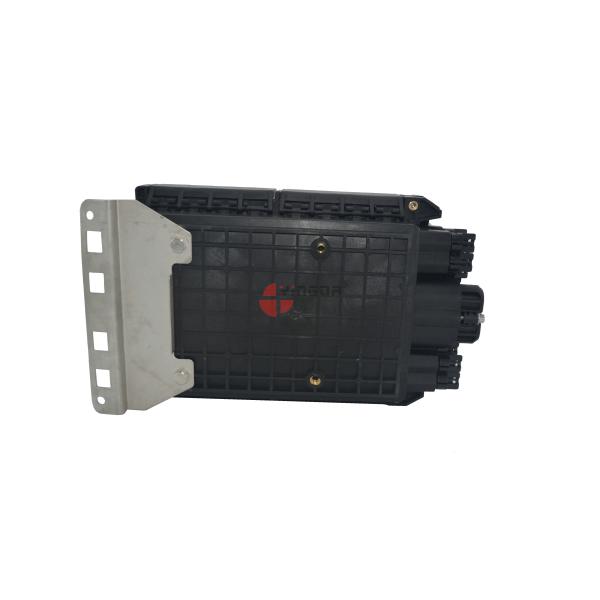

Back view: 2pcs mounting holes, horizontal or vertical Splice tray is removable seperately

metal sheet for mounting, hole for clamps

GPON FDB Inline 96 Cores PP Black 24 Ports SC Optical Fiber Splitter Access Terminal Closure GPON FDB Inline 96 Cores PP Black 24 Ports SC Optical Fiber Splitter Access Terminal Closure

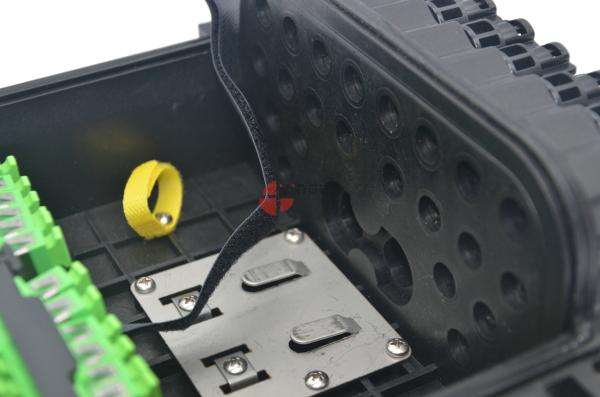

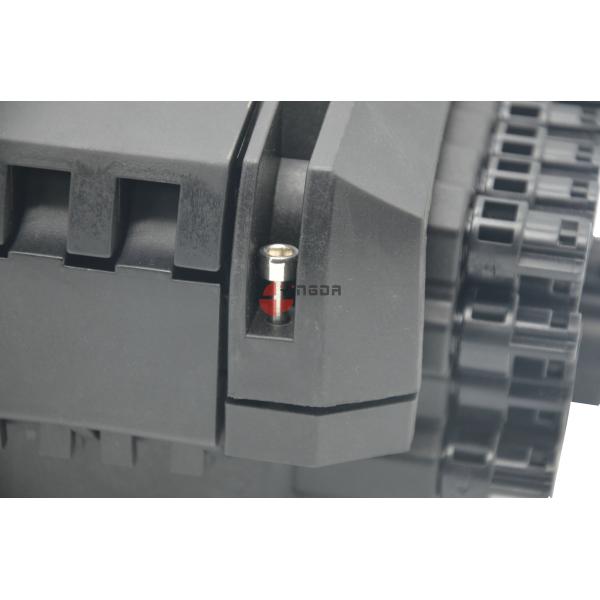

Lock system: high quality buckle, engineer plastic PP+GF, each 2pcs metal screw nuts to close it.

GPON FDB Inline 96 Cores PP Black 24 Ports SC Optical Fiber Splitter Access Terminal ClosureGPON FDB Inline 96 Cores PP Black 24 Ports SC Optical Fiber Splitter Access Terminal Closure

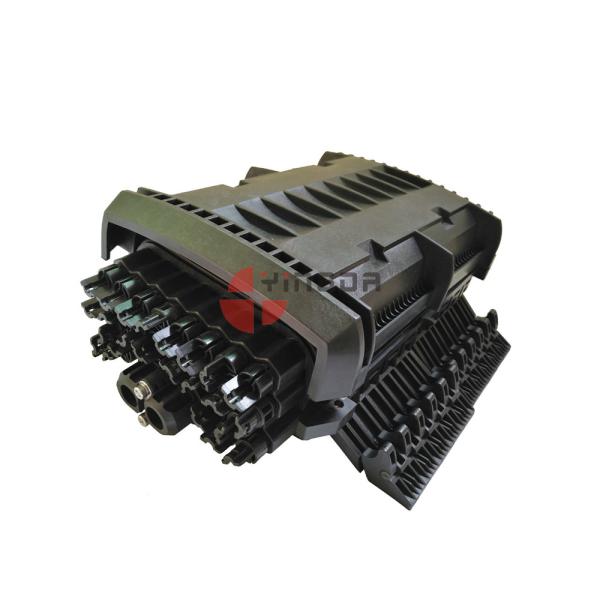

Box overview: IP68 waterproof splice enclosure, unique design, ftth wall moun / pole mount application

Specification

Model FDB0224G
Adapter 24 pcs of SC
Cable ports 1 uncut inputs
Applicable cable diameter Uncut port: 10-17.5mm
Drop cable ports 24ports
Applicable cable diameter 2*3mm FTTH drop cable, 2*5mm figure 8 FTTH drop cable
Dimension 385*245*130mm
Material Modified polymer plastic
Sealing structure Mechanical sealing
Color Black
Maximum splicing capacity 96 fibers (4 trays, 24 fibers / tray)
Applicable spliter 1pc of 1*16 plc splitter or 2 pcs 1*8 plc splitters
Sealing Ip68
Impact test IK10
Pull test 100N
Midspan entry Yes
Storage (tube/micro cable) Yes
Net weight 4kg
Gross weight 5kg
Packing 540*410*375mm (4pcs per carton)

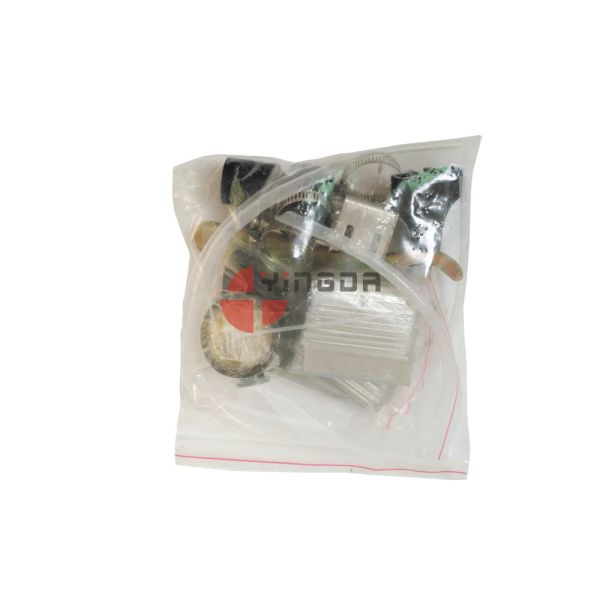

Standard parts

GPON FDB Inline 96 Cores PP Black 24 Ports SC Optical Fiber Splitter Access Terminal Closure

S/N Description Quantity Note
17 Wall mounting kit 1 For wall mounting
18 Expansion anchor bolt 2 Parts of the wall mounting kit
19 Hexagon bolt 2 Parts of the wall mounting kit
20 Nylon tie(3*120mm) 12 Fixing cable
21 Fusion sleeve(Φ1.0*60mm) According to the fiber cores. Cable splicing
22 0.2m coil tube 1 Protect the fiber
23 Insulation tape 1 Accessorial fixation
24 0.5m EVA tube 1 Protect fiber
25 Drier 1
26 M6 internal hexagonal wrench 1 Tool to open the box
27 14# grommet 2 For cable dia. From 12-17.5mm
28 41# grommet 2 For cable dia. From 8-12mm
29 Plastic plug 4 Seal the cable port
30 Iron spanner 1 Tool
