1 x 8 Fiber Optic Splitter Box , 24 Ports PP Fiber Optic Splitter Closure Black
1 x 8 Fiber Optic Splitter Box , 24 Ports PP Fiber Optic Splitter Closure Black
1 x 8 Fiber Optic Splitter Box , 24 Ports PP Fiber Optic Splitter Closure Black
1 x 8 Fiber Optic Splitter Box , 24 Ports PP Fiber Optic Splitter Closure Black
1 x 8 Fiber Optic Splitter Box , 24 Ports PP Fiber Optic Splitter Closure Black
1 x 8 Fiber Optic Splitter Box , 24 Ports PP Fiber Optic Splitter Closure Black
1 x 8 Fiber Optic Splitter Box , 24 Ports PP Fiber Optic Splitter Closure Black
1 x 8 Fiber Optic Splitter Box , 24 Ports PP Fiber Optic Splitter Closure Black
Specifications
Brand Name :
YINGDA
Model Number :
FDB0224G
Certification :
ISO
Place of Origin :
china
MOQ :
200pcs
Price :
negotiable
Payment Terms :
T/T, Western Union
Delivery Time :
1week
Packaging Details :
1pc/box, 4pcs/carton
material :
PP
color :
black
dimension :
385*245*130mm
cable exit :
16ports for drop cable or HUAWEI OptiTap SC/APC
cable entry :
1uncut ports for10-17.5mm cable diameter
drop cable diameter :
4mm or 7.5mm drop cable
box type :
inline splitter closure
adapter :
24pcs SC
splitter`type :
1*2, 1*4, 1*8, 1*16 splitter coupler
Description

1x8 Fiber Optic Splitter Box, SC 24 Ports Fiber Optic Splitter Closure PP IP68 Grade Black

FTTH drop cable type fiber optic splice & splitter closure features with ruggedness, which is ested under harsh conditions and stand up to even the most severe conditions of moisture, vibration and extreme temperatures. Humanized design helps user get better experience and safer operating environment.

1 x 8 Fiber Optic Splitter Box , 24 Ports PP Fiber Optic Splitter Closure Black1 x 8 Fiber Optic Splitter Box , 24 Ports PP Fiber Optic Splitter Closure Black

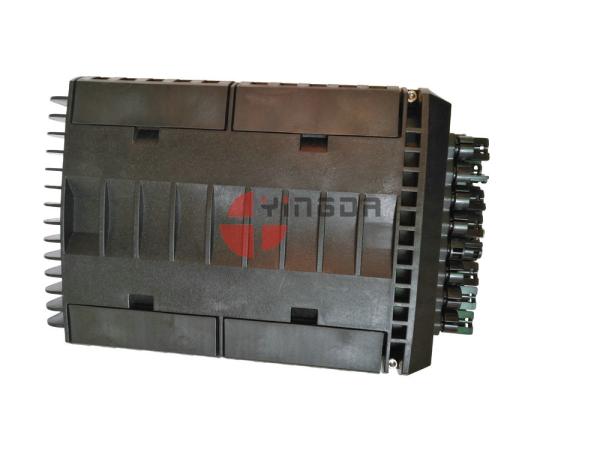

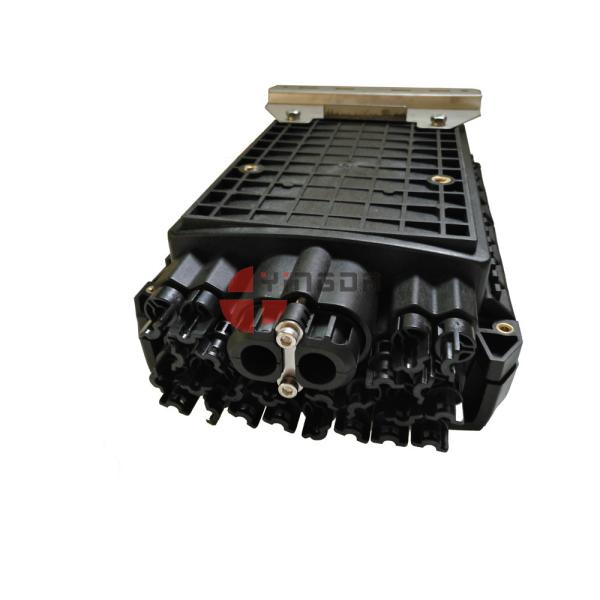

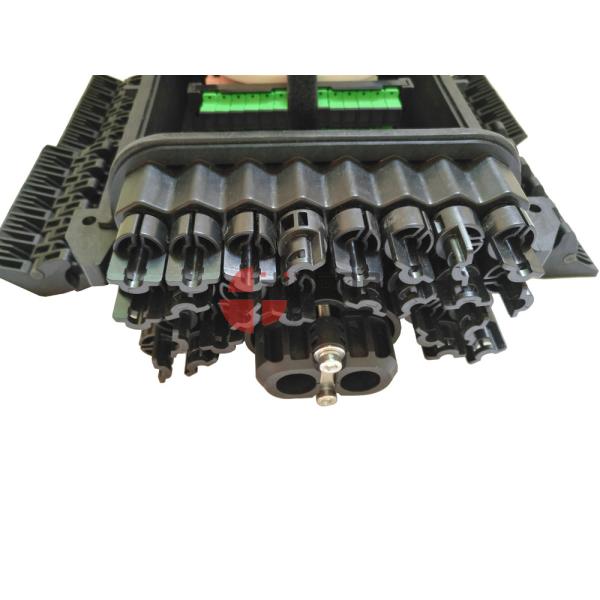

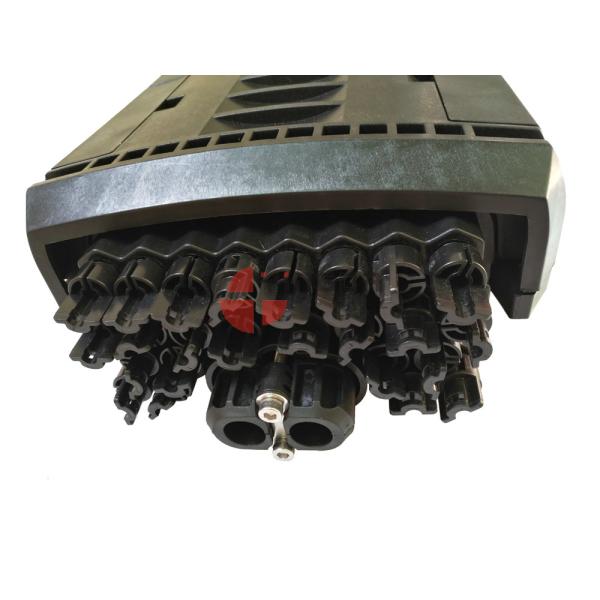

Total closed with buckles, ip68 1Uncut port to support midspan termination, 24ports for drop cable compatible for HUAWEI OptiTap SC/APC connecctors

1 x 8 Fiber Optic Splitter Box , 24 Ports PP Fiber Optic Splitter Closure Black1 x 8 Fiber Optic Splitter Box , 24 Ports PP Fiber Optic Splitter Closure Black

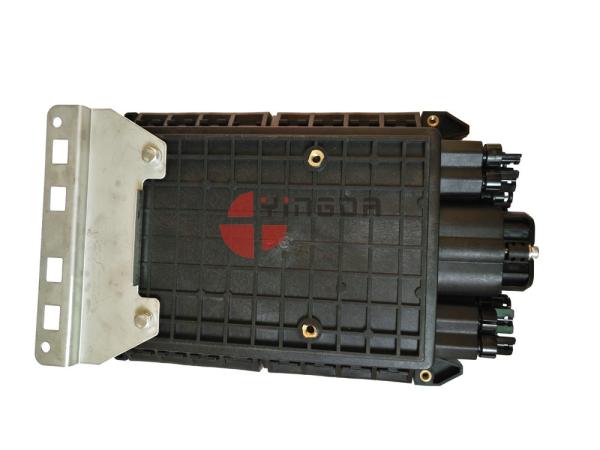

bottom with wall mount or pole mount stainless Dis-mountable adaptor panel 4way, each 6 SC

steel plate for cable management, fix by screws couplers

1 x 8 Fiber Optic Splitter Box , 24 Ports PP Fiber Optic Splitter Closure Black1 x 8 Fiber Optic Splitter Box , 24 Ports PP Fiber Optic Splitter Closure Black

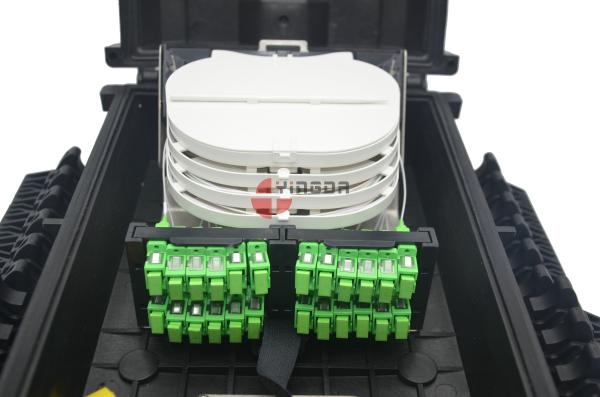

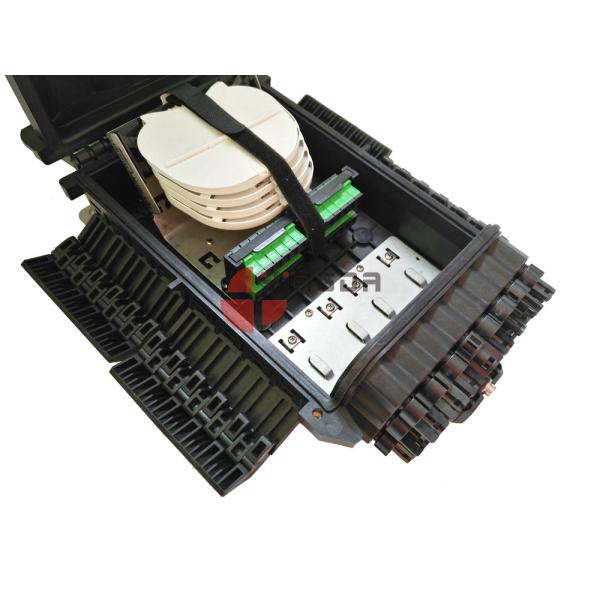

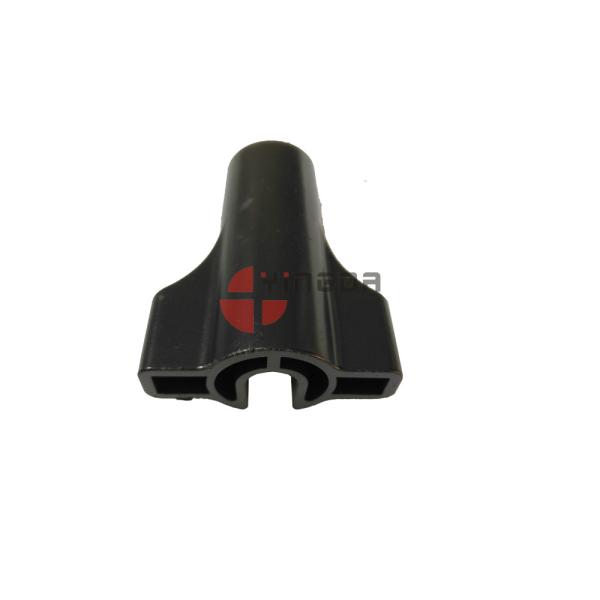

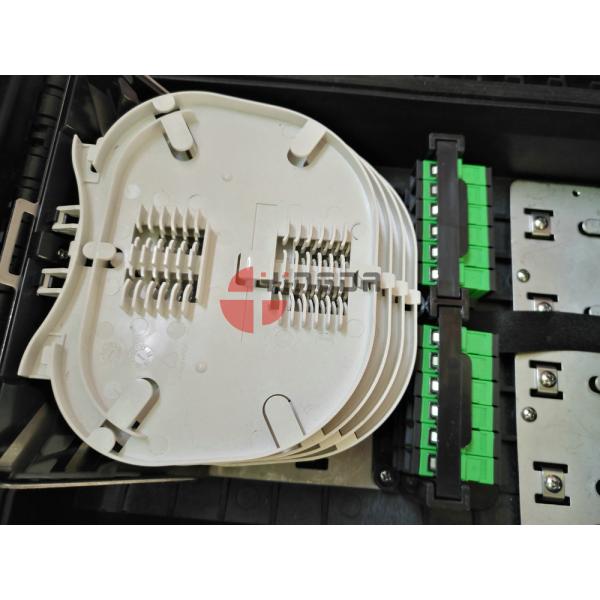

Rotatable and dis-mountable splice tray for easy splicing splitter tool for the ftth drop cable ports

ABS material of tray, each 12cores single fiber fusion it can be taken by hand

there is tray cover and steel tube plc splitter groove

Specification

Model FDB0224G
Adapter 24pcs of SC
Cable ports 1 uncut port
Applicable cable diameter Uncut port: 10-17.5mm
Drop cable ports 24ports
Applicable cable diameter 2*3mm FTTH drop cable, 2*5mm figure 8 FTTH drop cable
Dimension 385*245*130mm
Material Modified polymer plastic
Sealing structure Mechanical sealing
Color Black
Maximum splicing capacity 96fibers (4trays, 24fibers/ tray)
Applicable spliter 1pc of 1*16 plc splitter or 2pcs 1*8 plc splitters
Sealing Ip68
Impact test IK10
Pull test 100N
Midspan entry Yes
Storage (tube/micro cable) Yes
Net weight 4kg
Gross weight 5kg
Packing 540*410*375mm (4pcs per carton)

Standard parts

S/N Description Quantity Note
17 Wall mounting kit 1 For wall mounting
18 Expansion anchor bolt 2 Parts of the wall mounting kit
19 Hexagon bolt 2 Parts of the wall mounting kit
20 Nylon tie(3*120mm) 12 Fixing cable
21 Fusion sleeve(Φ1.0*60mm) According to the fiber cores. Cable splicing
22 0.2m coil tube 1 Protect the fiber
23 Insulation tape 1 Accessorial fixation
24 0.5m EVA tube 1 Protect fiber
25 Drier 1
26 M6 internal hexagonal wrench 1 Tool to open the box
27 14# grommet 2 For cable dia. From 12-17.5mm
28 41# grommet 2 For cable dia. From 8-12mm
29 Plastic plug 4 Seal the cable port
30 Iron spanner 1 Tool
