Specifications
Brand Name :
YINGDA
Model Number :
FDB0216F
Certification :
ISO
Place of Origin :
china
MOQ :
200pcs
Price :
negotiable
Payment Terms :
T/T, Western Union
Delivery Time :
1week
Packaging Details :
1pc/box, 4pcs/carton
material :
PP
color :
black
dimension :
385*245*130mm
cable exit :
16outputs for drop cable
cable entry :
1uncut ports, 2round ports
cable diameter :
17.5mm, 4mm or 7.5mm drop cable
box type :
splitter closure
adapter :
16pcs SC
splitter` :
mini module splitter 1x16
Description

1x16 Fiber Optical Splitter Box 16Outputs SC/APC PP Inline Closure 96Fibers Buckle Type for FTTH

FDB0216F is designed to seal without screws. The compact size and flip-over cover bring easy operation as well as complete function.

The splice trays are jointed with a hinge at one side, which makes the operation in each tray easier. It is designed to prevent from operation damage.

Specification

Dimension(mm) 380×245×130 Max. capacity(Single fiber) 16
Weight(kg) 4.5~5 Sealing type Mechanical
Cable ports 1 input cable port for un-cut cable from diameter from10~17.5mm. 2 output cable ports for cable diameter from 8~17.5mm.
16 output cable ports for cable diameter less than 4mm.		 Single splice tray capacity(Single fiber) 16
Splice tray quantity 2pcs

16 Outputs Fiber Cable Joint Box , Black 1 x 16 Splitter Optical Fiber Cable Joint Closure16 Outputs Fiber Cable Joint Box , Black 1 x 16 Splitter Optical Fiber Cable Joint Closure

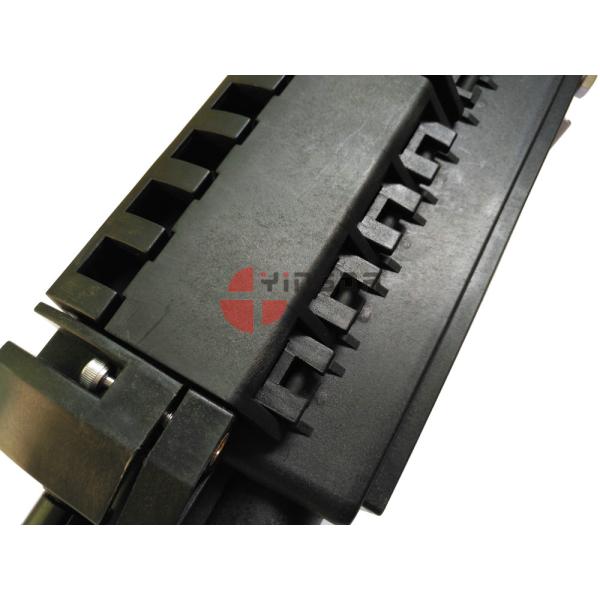

FRONT VIEW SIDE BUKCLE VIEW

16 Outputs Fiber Cable Joint Box , Black 1 x 16 Splitter Optical Fiber Cable Joint Closure16 Outputs Fiber Cable Joint Box , Black 1 x 16 Splitter Optical Fiber Cable Joint Closure

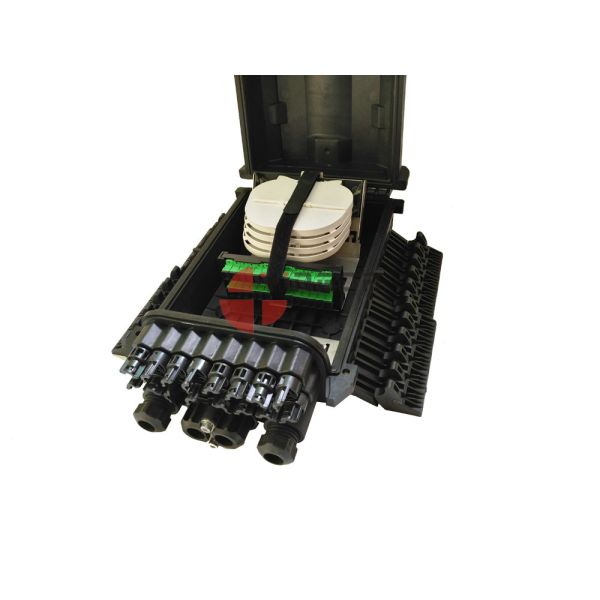

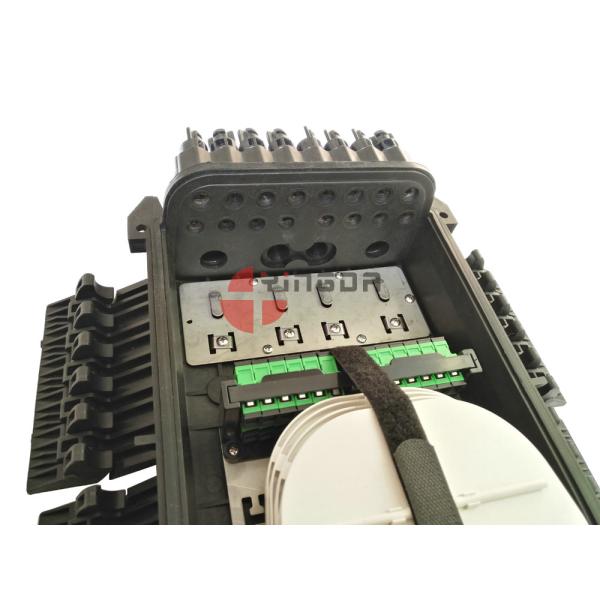

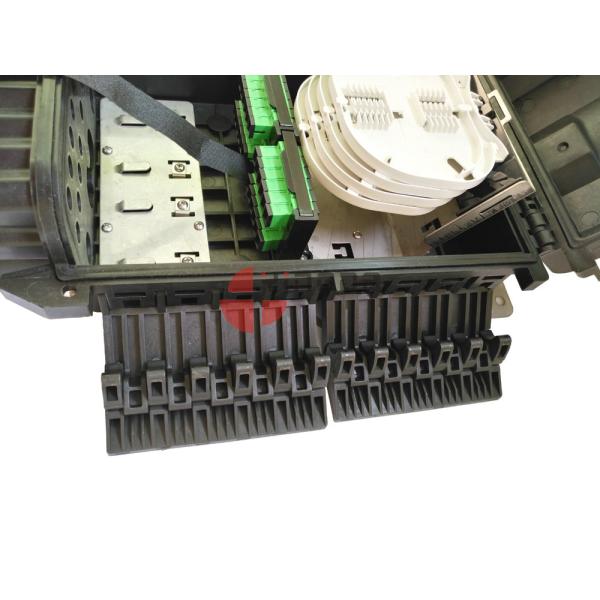

INTERNAL VIEW -1 INTERNAL VIEW -2

Parts list

Main kits

S/N Description Quantity Note
1 Lid 1 337(L)×242(W)×63(H)mm.
2 Base 1
3 Sealing ring 1 Box sealing
4 8202 sealing parts 16 Sealing cable ports
5 Splice tray 4 For cable splicing and storage
6 Splice tray cover 1
7 Splice tray bandage 1 Fixing several splice trays
8 Fastener bolt 2 Fixing lid and cover of closure
9 Buckle 4 Fixing lid and cover of closure
10 Tight nuts 16 Sealing soft cable ports
11 Tight tool 1 Special for tight the nuts
12 Cable fixing panel 1 Fixing un-cut cable
13 Adaptor installation panel 4 An adaptor panel for 6 SC simplex adaptors
14 Splice tray bracket 1 Install 4 splice trays
15 Top cover stopper 1 Limit top cover
16 Plastic nuts 2 Fixing cable

Standard parts

S/N Description Quantity Note
17 Wall mounting kit 1 For wall mounting
18 Expansion anchor bolt 2 Parts of the wall mounting kit
19 Hexagon bolt 2 Parts of the wall mounting kit
20 Nylon tie(3*120mm) 12 Fixing cable
21 Fusion sleeve(Φ1.0*60mm) According to the fiber cores. Cable splicing
22 0.2m coil tube 1 Protect the fiber
23 Insulation tape 1 Accessorial fixation
24 0.5m EVA tube 1 Protect fiber
25 Drier 1
26 M6 internal hexagonal wrench 1 Tool to open the box
27 14# grommet 2 For cable dia. From 12-17.5mm
28 41# grommet 2 For cable dia. From 8-12mm
29 Plastic plug 4 Seal the cable port
30 Iron spanner 1 Tool

Optional parts

S/N Description Quantity Note
25 Pole mounting kit 1 For pole mounting
26 Valve 1 Testing sealing performance
