12 SC Ports Fiber Optic Termination Box , DIN Termination Box ABS
12 SC Ports Fiber Optic Termination Box , DIN Termination Box ABS
12 SC Ports Fiber Optic Termination Box , DIN Termination Box ABS
12 SC Ports Fiber Optic Termination Box , DIN Termination Box ABS
12 SC Ports Fiber Optic Termination Box , DIN Termination Box ABS
12 SC Ports Fiber Optic Termination Box , DIN Termination Box ABS
12 SC Ports Fiber Optic Termination Box , DIN Termination Box ABS
12 SC Ports Fiber Optic Termination Box , DIN Termination Box ABS
Specifications
Brand Name :
YINGDA
Model Number :
DIN-P
Certification :
ISO
Place of Origin :
china
MOQ :
50pcs
Price :
0.18USD-4.29USD
Payment Terms :
T/T, Western Union
Delivery Time :
5-8 working days
Packaging Details :
60pcs/carton box
Color :
White
Material :
ABS+PC
Dimension :
130*133*35mm
Max. Capacity :
12 cores
Adapter :
12pcs SC simplex
Splice Tray :
1 PC
Adapter Plate :
Cold Rolled Steel
Outport :
12 SC ports
Flame Rating :
UL94-V0
Application :
Indoor use
Description

12 SC Ports Fiber Optic Terminal Box, DIN Termination Box ABS

This type Fiber optic Din terminal box is available for the distribution and terminal connection for various kinds of optical fiber system, especially suitable for mini-network terminal distribution, in which the optical cables, patch cords or pigtails are connected.

Features:

  • Standard size, light weight and reasonable structure
  • Material: PC+ABS, adapter plate: cold rolled steel, it can be replace
  • Flame Rating: UL94-V0
  • Cable tray can be overturn, easy to manage.
  • Optional adapter and adapter plate.
  • Din guide rail, easy to install on rack panel in cabinet.

Application:

  • Telecommunications subscriber loop
  • Fiber to the home (FTTH)
  • LAN/WAN
  • CATV

Cable Manage:

12 SC Ports Fiber Optic Termination Box , DIN Termination Box ABS12 SC Ports Fiber Optic Termination Box , DIN Termination Box ABS

Specification

Model Adapter Adapter Quantity Max. Capacity
DIN-P12-SCS SC simplex 12 12
DIN-P6-SCS SC simplex/LC duplex 6/12 6
DIN-P6-SCD SC duplex 6 12
DIN-P6-STS ST simplex 6 6

More pictures

12 SC Ports Fiber Optic Termination Box , DIN Termination Box ABS12 SC Ports Fiber Optic Termination Box , DIN Termination Box ABS

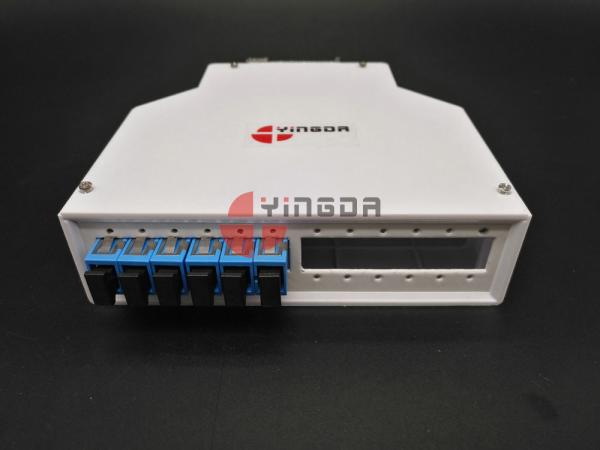

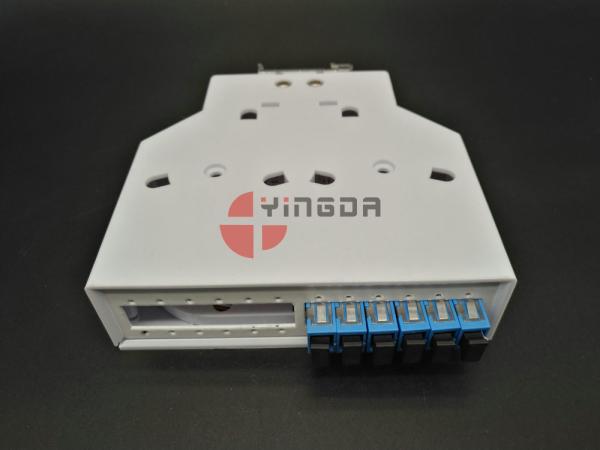

  • The cover and back side. Use four screws to fix the cover.

12 SC Ports Fiber Optic Termination Box , DIN Termination Box ABS12 SC Ports Fiber Optic Termination Box , DIN Termination Box ABS

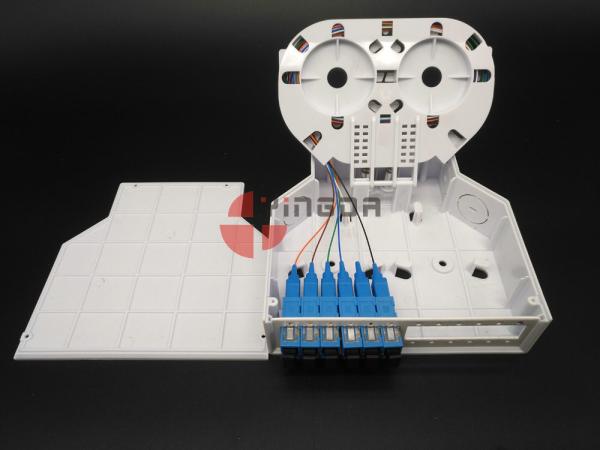

  • Connect pigtails with adapters, then coil the pigtail cable and splicing on the splice tray.

12 SC Ports Fiber Optic Termination Box , DIN Termination Box ABS12 SC Ports Fiber Optic Termination Box , DIN Termination Box ABS

  • The adapter plate is made of cold rolled steel and it can be replaced, which can accomodate max. 12pcs SC simplex adapters.

12 SC Ports Fiber Optic Termination Box , DIN Termination Box ABS12 SC Ports Fiber Optic Termination Box , DIN Termination Box ABS

  • Put the heat shrinkable protection sleeve on the splice tray, use it when splice fibers.

12 SC Ports Fiber Optic Termination Box , DIN Termination Box ABS12 SC Ports Fiber Optic Termination Box , DIN Termination Box ABS

  • The adapter plate can be taken out and replaced.

12 SC Ports Fiber Optic Termination Box , DIN Termination Box ABS12 SC Ports Fiber Optic Termination Box , DIN Termination Box ABS

  • As the red circle marked showing, cable gland can be installed here. Please refer to the following picture.

Box Size:

12 SC Ports Fiber Optic Termination Box , DIN Termination Box ABS

12 SC Ports Fiber Optic Termination Box , DIN Termination Box ABS

Packing info:

Carton Size G.W Remark
16.5*15.5*4.5cm 0.4KG(around) With bubble pack
48.5*47*35cm 24KG(around) 60sets/carton

Rack Frame(optional)

12 SC Ports Fiber Optic Termination Box , DIN Termination Box ABS

Rack Frame spec. (optional):

Name Model Size Capacity
Rack frame DRB-002 482.6*88*180mm 12set
