2In 16Out Fiber Access Terminal Box, Uncut Cable Termination Box for PLC Splitter Black Plastic
2In 16Out Fiber Access Terminal Box, Uncut Cable Termination Box for PLC Splitter Black Plastic
2In 16Out Fiber Access Terminal Box, Uncut Cable Termination Box for PLC Splitter Black Plastic
2In 16Out Fiber Access Terminal Box, Uncut Cable Termination Box for PLC Splitter Black Plastic
2In 16Out Fiber Access Terminal Box, Uncut Cable Termination Box for PLC Splitter Black Plastic
2In 16Out Fiber Access Terminal Box, Uncut Cable Termination Box for PLC Splitter Black Plastic
2In 16Out Fiber Access Terminal Box, Uncut Cable Termination Box for PLC Splitter Black Plastic
2In 16Out Fiber Access Terminal Box, Uncut Cable Termination Box for PLC Splitter Black Plastic
2In 16Out Fiber Access Terminal Box, Uncut Cable Termination Box for PLC Splitter Black Plastic
2In 16Out Fiber Access Terminal Box, Uncut Cable Termination Box for PLC Splitter Black Plastic
2In 16Out Fiber Access Terminal Box, Uncut Cable Termination Box for PLC Splitter Black Plastic
2In 16Out Fiber Access Terminal Box, Uncut Cable Termination Box for PLC Splitter Black Plastic
Specifications
Brand Name :
YINGDA
Model Number :
FDB0216A
Certification :
ISO,SGS
Place of Origin :
china
MOQ :
100PCS
Payment Terms :
Western Union, MoneyGram, T/T
Supply Ability :
5000pcs/month
Delivery Time :
6days
Packaging Details :
1pc in a box, 10 pcs per carton box
material :
ABS, PC
color :
black
ftth drop cable :
16 pcs
cable ports :
2in 16out
plc splitter :
1x2, 1x4,1x8,1x16
adapter :
SC, LC duplex
max splicing :
24 fibers
application :
wall or pole mounting
Price :
1.0USD-18.6USD
Description

2In 16Out Fiber Access Terminal Box, Uncut Cable Termination Box for PLC Splitter Black Plastic 16Ports

Model: FDB0216A

FDB0216A Optical Termination Box is a high density wall mounted solution for FTTH next generation networks, it provide and manage maximum 16cores fiber termination in a limited space. It can be wall mounting or pole mounted indoor and outdoor application.

Feature

  • It is made of high impact plastic material, high strength, good performance
  • Can accommodate 1x8 1x16 mini module PLC splitter with SC Connector
  • Anti-UV, Ultra violet resistant and rainfall resistant.
  • Wall mounted, pole mounted
  • Max. Hold 16pcs SC or LC duplex adapters
  • 2 pcs un-cut cable port, 16 pcs FTTH drop cable outports
  • Pre-install SC adapter or micro splitter, pigtails available.
  • Indoor and outdoor use

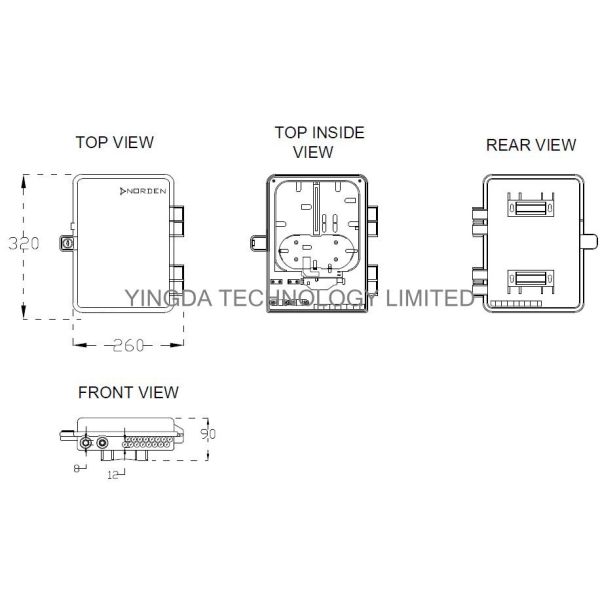

FDB0216A Termination Box DIECUT

2In 16Out Fiber Access Terminal Box, Uncut Cable Termination Box for PLC Splitter Black Plastic

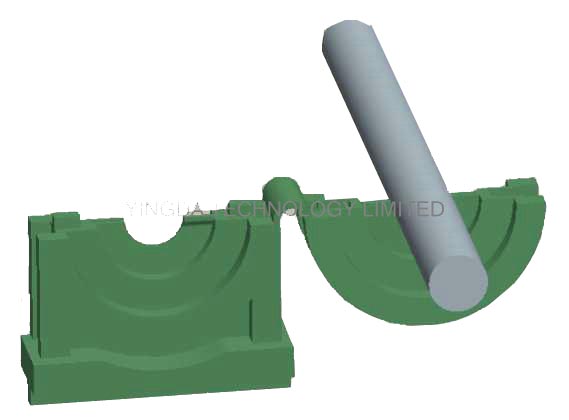

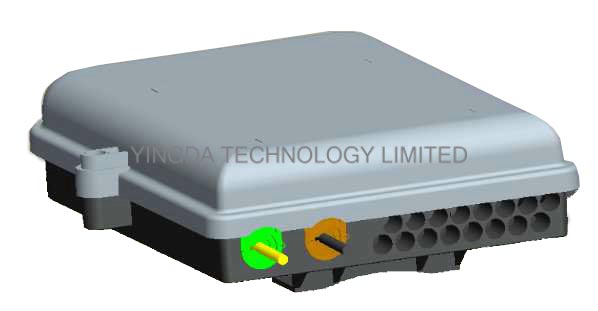

FDB0216A Termination Box 3D drawing -- UNCUT CABLE PORT

(the feeder cable go through the box no need cutting, easy for on-site installation)

2In 16Out Fiber Access Terminal Box, Uncut Cable Termination Box for PLC Splitter Black Plastic2In 16Out Fiber Access Terminal Box, Uncut Cable Termination Box for PLC Splitter Black Plastic

Application

  • Telecommunication Networks
  • WAN,LAN ,CATV Networks
  • Data communications Networks
  • FTTH access terminal network (FAT)

Specifications:

Model FDB0216A
Material ABS
Size(W*H*D) 260*320*115mm
Max capacity 16 fibers
Adapter qty 16 x SC
PLC splitter 1x2,1x4,1x8,1x16 micro splitter
Color White, black, gray

Packing information:

Model QTY/CTN CTN size N.W/CTN G.W/ CTN
FDB0216A 10pcs 56*36*63cm 1.48 16.5kgs

How to install

2In 16Out Fiber Access Terminal Box, Uncut Cable Termination Box for PLC Splitter Black Plastic

2In 16Out Fiber Access Terminal Box, Uncut Cable Termination Box for PLC Splitter Black Plastic

Steps:

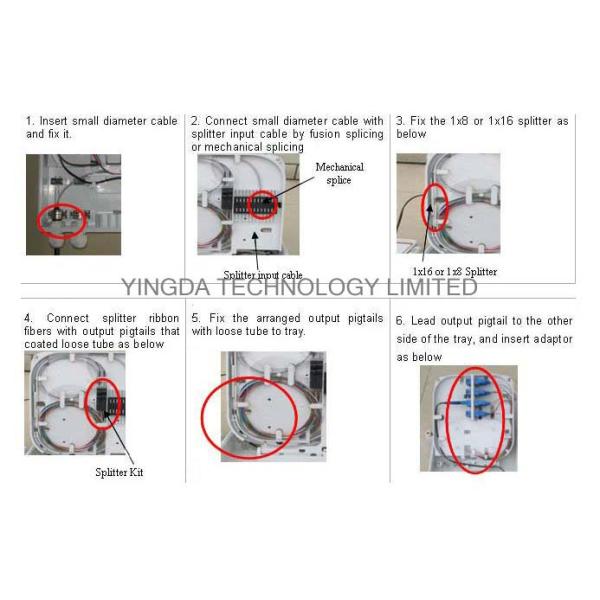

1.insert small diameter of cable and fix it, fig. 1

2. connect the cable with splitter input cable by fusion splicing or mechanical splicing. fig. 2

3. fix 1x8 and 1x16 splitter, fig. 3

4. connect splitter ribbon fibers with output pigtails that coated loose tube, fig. 4

5. fix the arranged ouput pigtails with losse tube to tray, fig. 5

6. lead output pigtails to the other side of the tray, and insert adapter , fig. 6.

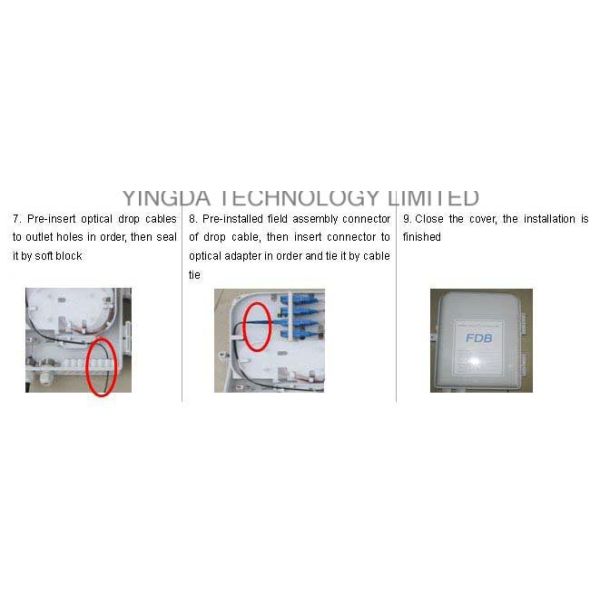

7. pre-insert optical drop cables to outlet holes in order, then seal it b soft block. fig. 7

8. pre-installed field assembly connector of drop cable, the insert connectors to optical adapter in order and tie it by cable ties. fig. 8

9. close the cover, finish installation. fig. 9

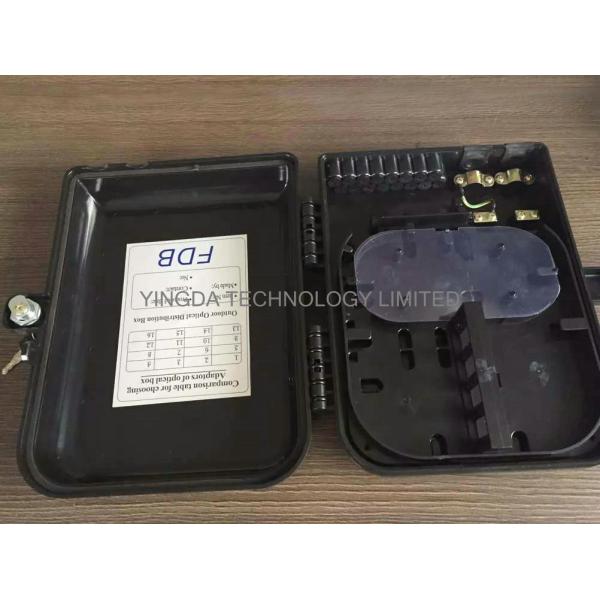

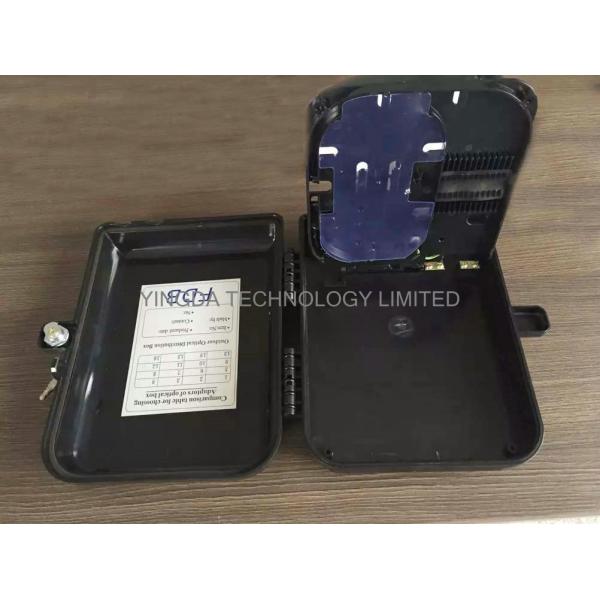

EMPTY BOX SHOW:

2In 16Out Fiber Access Terminal Box, Uncut Cable Termination Box for PLC Splitter Black Plastic2In 16Out Fiber Access Terminal Box, Uncut Cable Termination Box for PLC Splitter Black Plastic

Our advantages

1.The most competitive price


2.We are eager to establish long-term cooperation relationship with every customer,so we're responsible for our quality.we provide 3 years warrranty


3.We provide one-stop FTTH Solution Products.besides, we can help you design unique new products and put into production.We care about innovation and would like to change for you and grow up with you.


4.With our own R&D, more completed production lines, advanced production & testing equipments,experienced staffs, we’re confident to provide you satisfied quality and service with competitive price and punctual delivery.


5.For your any queries or inquiries,we will try to reply you within 3 hours
