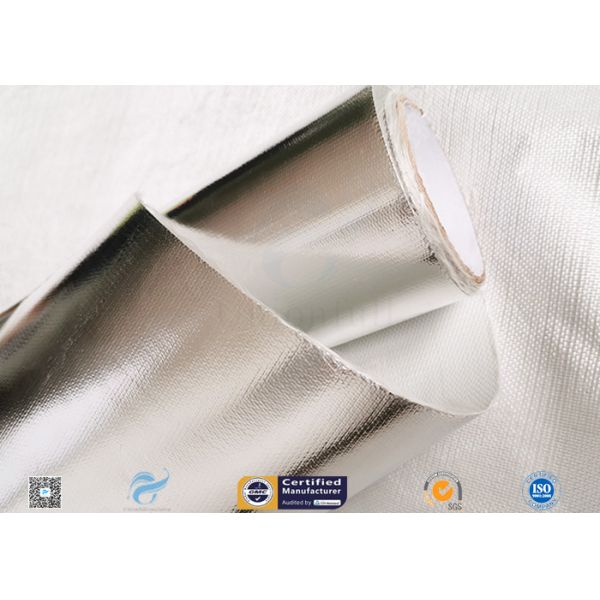

0.43mm Light Reflective Silver Coated Fabric Aluminium Foil E Glass Fabric For Pipes
0.43mm Light Reflective Silver Coated Fabric Aluminium Foil E Glass Fabric For Pipes
0.43mm Light Reflective Silver Coated Fabric Aluminium Foil E Glass Fabric For Pipes
0.43mm Light Reflective Silver Coated Fabric Aluminium Foil E Glass Fabric For Pipes
0.43mm Light Reflective Silver Coated Fabric Aluminium Foil E Glass Fabric For Pipes
0.43mm Light Reflective Silver Coated Fabric Aluminium Foil E Glass Fabric For Pipes
0.43mm Light Reflective Silver Coated Fabric Aluminium Foil E Glass Fabric For Pipes
0.43mm Light Reflective Silver Coated Fabric Aluminium Foil E Glass Fabric For Pipes
Specifications
Brand Name :
Unionfull
Model Number :
UPEAL-8732
Certification :
ISO9001:2008, SGS;TUV
Place of Origin :
China
MOQ :
500m
Price :
$2.3~$4
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
350000 squar meter per week
Delivery Time :
7~15days after payment received
Packaging Details :
One roll in woven bag
Surface Treatment :
Aluminium Foil coated
Basic Fabric :
fiberglass fabric
Thickness :
0.43mm
Aluminium Thickness :
7/18/25 Micron
Weight :
430g/m2
Temperature :
300~550℃
Yarn type :
E-glass
Roll length :
50m
Description

0.43mm Lignt Reflective Silver Aluminium Foil E-glass Fabric For Pipes

Aluminum foil fiberglass is constructed from a high performance E-glass fabric coated with aluminum foil or aluminum film. Due to it's excellent properties, Aluminum foil fiberglass fabric is widly used in industry and construction.

Indoor: Mainly used for insulation materials of air-conditioning , HVAC equipment pipes , rock wool , ultra-fine glass wool protective layer for building noise-reducing and sound-insulating materials, which can be used for flame-retardant, anti-corrosion, heat-insulating and sound-absorbing; Moisture resistant, fireproof, anti-corrosion packaging materials.

Outdoor: It is mainly used for protecting dress of chemical pipelines such as oil pipelines and steam pipelines, and can also achieve good effects of anti-corrosion, flame retardant and heat insulation.

Properties:

1. Light reflectivity

2. Moisture and fogy resistant

3. Smooth surface

4. Heat insulation

5. Waterproof

6. Outstanding sealing function

Main Sepecification:

Item Area Weight
(g/m2)		 Aluminium Thickness Temperature℃ Weaving Tensile Strength

PCAL-8628

 200 7/18/25 μ 0.2mm 300-550 Plain 2025/1620

UPEAL-8732

 430 7/18/25 μ 0.43mm 300-550 Satin 6000/4500

UPEAL-8784

 880 7/18/25 μ 0.85mm 300-550 Satin 8000/6000

Data sheet:

Product Name

 Aluminum foil fiberglass fabric

Item

 UPEAL-8732

Thread count

 Warp 19.6±0.5 per cm 51.7 ±1.3 per inch
Weft 15±0.5 per cm 39.5 ±1.3 per inch

Breaking Strength

 Warp 2000 N/5cm 222 lbs/inch
Weft 1600 N/5cm 178 lbs/inch

Weight

 510g/m2 15 oz/yd2

Thickness

 0.43mm 0.018 inch

Working Temperature

 300℃ 572℉

Coating

 7μ Aluminium Foil

Weave

 4HS

Packing

 1 roll with 1 polybag/woven bag

Application:

• High temperature insulation
• Sound absorption material
• Removable covers and blankets
• Pipe lines
• Building materials
• Petrochemical industries

Pictures:

0.43mm Light Reflective Silver Coated Fabric Aluminium Foil E Glass Fabric For Pipes0.43mm Light Reflective Silver Coated Fabric Aluminium Foil E Glass Fabric For Pipes
