20mm High Silica Fiberglass Needle Mat For Muffler And Heat Insulation
20mm High Silica Fiberglass Needle Mat For Muffler And Heat Insulation
20mm High Silica Fiberglass Needle Mat For Muffler And Heat Insulation
20mm High Silica Fiberglass Needle Mat For Muffler And Heat Insulation
20mm High Silica Fiberglass Needle Mat For Muffler And Heat Insulation
20mm High Silica Fiberglass Needle Mat For Muffler And Heat Insulation
20mm High Silica Fiberglass Needle Mat For Muffler And Heat Insulation
20mm High Silica Fiberglass Needle Mat For Muffler And Heat Insulation
Specifications
Brand Name :
Unionfull
Model Number :
JT8120-20-100
Certification :
ISO9001:2008, SGS;TUV
Place of Origin :
China
MOQ :
500m2
Price :
US$49--$50/m2
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
4 containers per day
Delivery Time :
20 working days
Packaging Details :
10meters/roll with polybag
Made Of :
Glass Fibers
Density :
120kg/m3
Thickness :
20mm
Width :
1000mm, 39"
Features :
Heat/sound insulation
Usage :
Muffler for gun or motobike
Description

20mm High Silica Fiberglass Needle Mat For Muffler And Heat Insulation

High silica needle mat is a high temperature resistant material which is made of alumina borosilicate glass fibers filament. These filaments are cut into 3cm - 10cm length, then they are punched by thousands of needles to form a fiberglass insulation blanket without bonding agent.

Fiberglass high silica needle mat is developed when and where common e-glass fiberglass needle mats meet their limits. When need higher tempreature resistant needs, high silica needle mat is able to withstand 1100℃ continuously without weight loss and melting. And it can resist heat up to 1300℃.

High silica needle mat is with high porosity, sound insulation and anti chemical agents features. Besides, fiber glass materials are eco-friendly material, eapecially this needle mat which is recyclable, after long time using, it still can be cut into fibers and punched into a new needle mat. Fiberglass materials(≥9μm) won't be breath into lungs based on our workers' annual health check.


Data Sheet:


Thermal Conductivity (K = Btu x in / hr / sq.ft. x ft. / deg F)
500 oF
(260 oC)		 0.44
1000 oF
(538 oC)		 0.79
1500 oF
(816 oC)		 1.38
1800 oF
(982 oC)		 1.91


Temperature Limit
Continuous Use 1800 oF
(982 oC)
Intermittent 2300 oF
(1260 oC)
Melting Point 3100 oF
(1704 oC)

Features:

  • Sound insulation
  • Anti chemical agents
  • High temperature resistance
  • Stable dimensition and properties
  • Electrical insulation

Application

  • Muffler for gun and automotive
  • High temperature industrial filtration
  • Fire resistant wadding material for fire doors
  • Thermal insulation jacket
  • Pipe heat insulation warp
  • Roofing/wall heat insulation materials

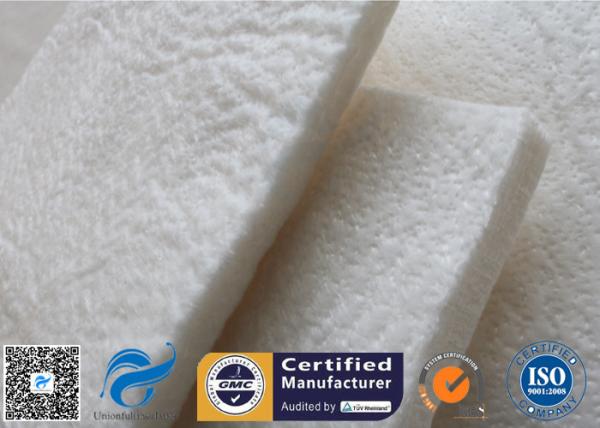

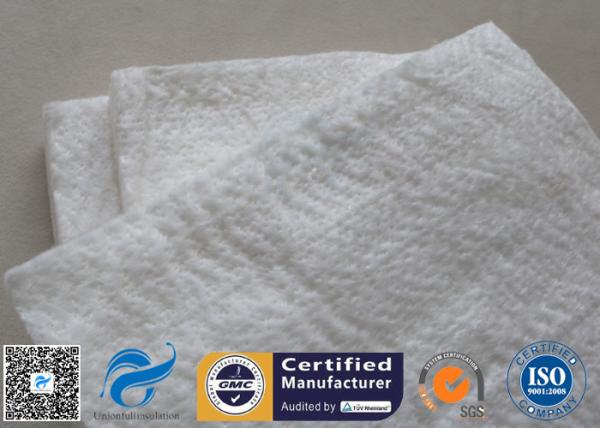

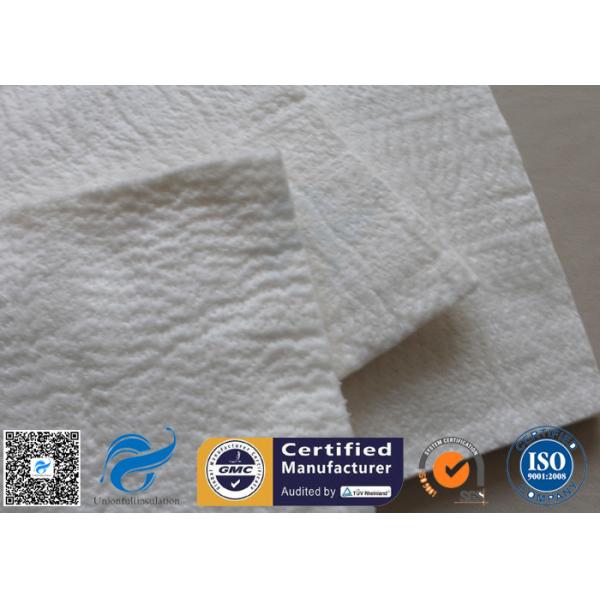

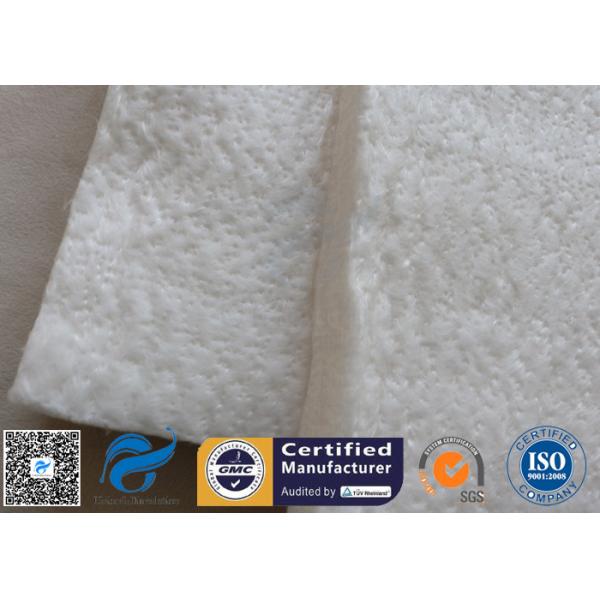

Pictures:

20mm High Silica Fiberglass Needle Mat For Muffler And Heat Insulation20mm High Silica Fiberglass Needle Mat For Muffler And Heat Insulation
