Specifications
Brand Name :
Unionfull
Model Number :
UPSE-8732D80
Certification :
ISO9001:2008, SGS;TUV
Place of Origin :
China
MOQ :
500 Meters
Price :
$2.85-3.40/ Square Meter
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
50,000 m2 per day
Delivery Time :
16 Working Days After Receiving Payment
Packaging Details :
50 meters one roll
Basic Cloth :
430g/m2 Fiberglass Faric
Coating :
Red Silicone, 40gsm per side
Thickness :
0.5mm
Weight :
510g/m2
Width :
1000mm, 39"
Length :
50m one roll
Description

510gsm 0.5mm Red Silicone Coated Fiberglass Fabric Oil Resistant Material


Silicone coated fiberglass fabric is made of woven fiberglass cloth coated with silicone on one side or both two sides. E-glass fiberglass fabric is fire resistant, oil and chemical resistant and durable. Silicone coating also has electrical insulation property.

Basic cloth of this 0.5mm silicone coated fabric is 430g/m2 satin weaving fiberglass fabric. Total weight is 510g/m2 and 0.55mm, coating weight is 40g/m2 per side.

The basic cloth - fiberglass fabric can withstand a temperature below 550℃ continuously. Silicone coating can withstand heat below 260℃. Base on the fire resistance and other features, silicone coated fiberglass fabric are mainly used for fire/welding blanket, fabric expansion joints, hot tunnel curtains and removable thermal insulation jacket materials.

Specification:
Item Silicone Coated Fiberglass Fabric
Material E-glass Fiberglass
Weave 4H Satin
Warp Count 20 Ends/CM
Weft Count 11 Ends/CM
Weight 510g/m2
Thickness 0.5mm
Width 100cm
Servise Temperature

Coating below 260℃

Fiberglas cloth below 550℃


Features:

  • Anti chemical agents
  • Electrical insulation
  • Tear resistance
  • Abrasion resistance
  • Corrosion resistance


Application:

  1. Welding, fire blanket
  2. Fabric expansion joint
  3. Electrical insulation materials
  4. Aerospace, chemical industry
  5. Automotive insulation

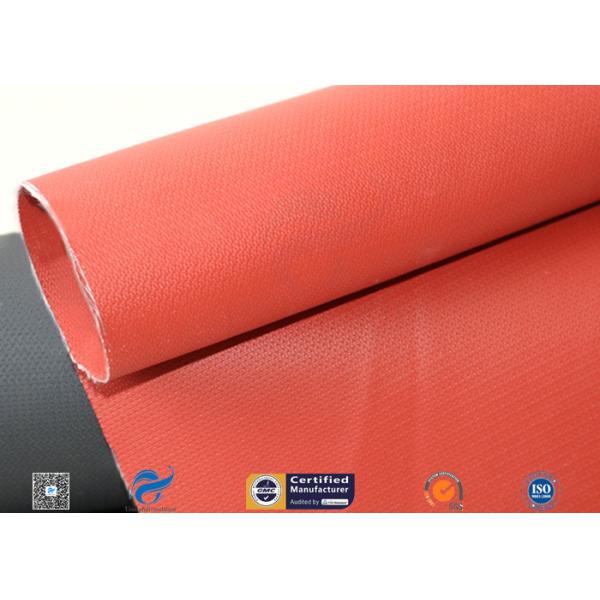

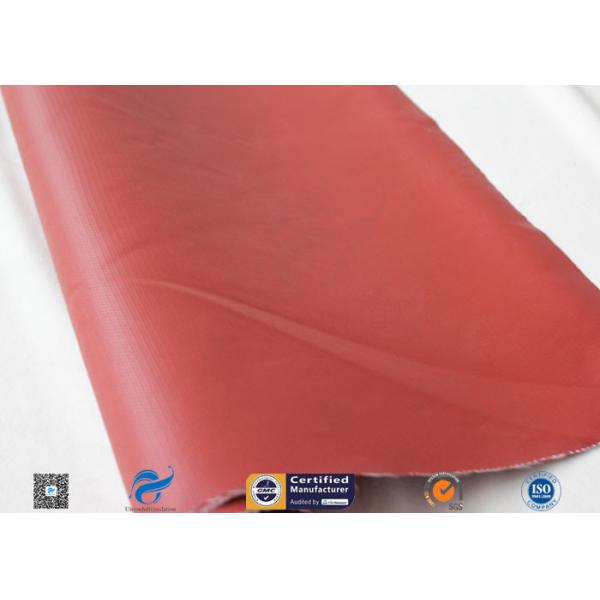

Picture:

510gsm 0.5mm Red Silicone Coated Fiberglass Fabric Oil Resistant Material510gsm 0.5mm Red Silicone Coated Fiberglass Fabric Oil Resistant Material
