5.9oz 0.2mm Plain Weave Fiberglass Fabric , Electronic Fiber Glass Cloth
5.9oz 0.2mm Plain Weave Fiberglass Fabric , Electronic Fiber Glass Cloth
5.9oz 0.2mm Plain Weave Fiberglass Fabric , Electronic Fiber Glass Cloth
5.9oz 0.2mm Plain Weave Fiberglass Fabric , Electronic Fiber Glass Cloth
5.9oz 0.2mm Plain Weave Fiberglass Fabric , Electronic Fiber Glass Cloth
5.9oz 0.2mm Plain Weave Fiberglass Fabric , Electronic Fiber Glass Cloth
5.9oz 0.2mm Plain Weave Fiberglass Fabric , Electronic Fiber Glass Cloth
5.9oz 0.2mm Plain Weave Fiberglass Fabric , Electronic Fiber Glass Cloth
Specifications
Model Number :
JT8200W-20-100
Certification :
ISO9001:2008, SGS
Place of Origin :
China
MOQ :
500meters
Price :
$0.80--1.35/m2
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
150000 Square Meters Per Day
Delivery Time :
20 Working Days After Payment
Packaging Details :
100m one roll in poly bag
Yarn :
ECG 75 1/0
Weave :
Plain
Weight :
200gsm
Thickness :
0.2mm
Width :
100cm
Roll Length :
100meters
Feature :
Light Weight, Clear, Fire Resistant
Apolication :
Surfboard Building, Copper clad lamination
Description

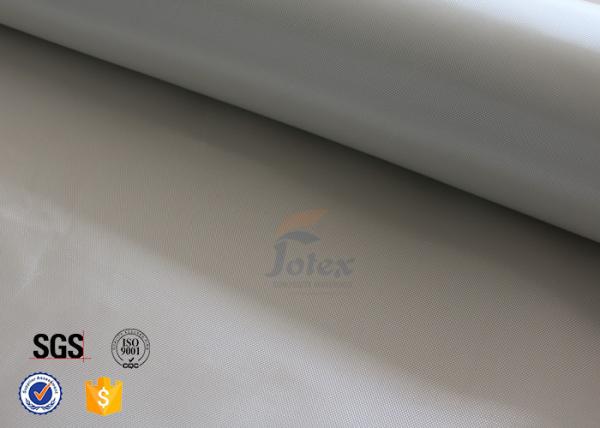

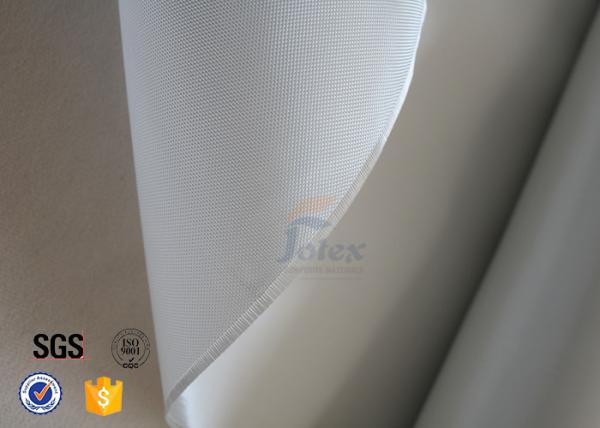

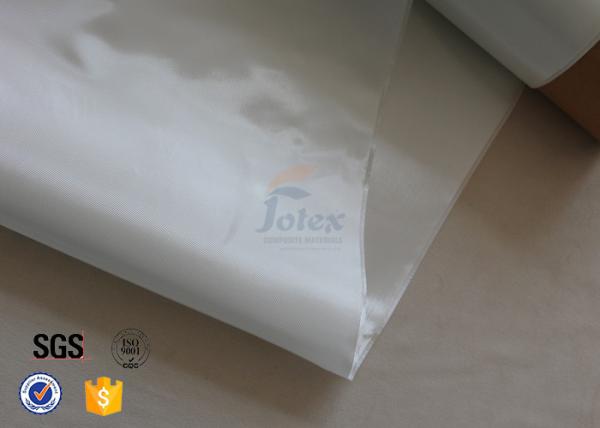

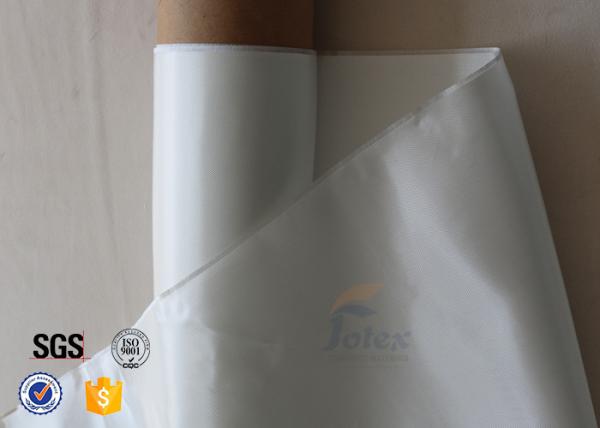

5.9oz 0.2mm Plain Weave Fiber Glass Cloth Electronic Fiberglass Fabric

This 7628 fiber glass cloth is a light and thin fabric which is in plain weave. It is a kind of electronic cloth, the product number 7628 is also the serial number of electronic cloth. In the past, this fabric is used widely in electronic application. However, because of its light weight and combinations to other resins, now it is also produced for many other industries application.
It is widely used in the industry, electronics, civil, construction and military industry, etc.
Data Sheet Of 7628 Fiberglass Cloth
Item No. 7628
Description Electronic Series Fiberglass Fabric
Weave Plain Woven
Yarn Type Warp EC9 68 1X0 ECG 75 1/0
Weft EC9 68 1X0 ECG 75 1/0
Weight 200 g/m 5.90 OZ/YD2
Thickness 0.2 mm 0.008 inch
Thread Count Warp 17.3 per cm 44 per inch
Weft 13 per cm 31 per inch

Tensile

Strength

 Warp 438 N/cm 250 lbs/inch
Weft 350 N/cm 200 lbs/inch
LOI ＜4% ＜4%
Color White
Service Temperature ≤550℃

Properties:

  • Fire resistance, thermal insulation
  • Light weight, thin, easily wet out by resin
  • Physical/chemistry stability
  • Oil resistance
  • Harmonious well with basic resins
  • High strength, teat resistant

Application:

  • Copper clad lamination
  • Coated with different glue for special needs
  • Thermal insulation
  • Aircraft, automobiles parts
  • Boat, surfboard building
  • Water tanks, swimming pools
