3732 0.4mm Satin Glass Fibre Cloth / Fire Resistant Fiberglass Fabric
3732 0.4mm Satin Glass Fibre Cloth / Fire Resistant Fiberglass Fabric
3732 0.4mm Satin Glass Fibre Cloth / Fire Resistant Fiberglass Fabric
3732 0.4mm Satin Glass Fibre Cloth / Fire Resistant Fiberglass Fabric
3732 0.4mm Satin Glass Fibre Cloth / Fire Resistant Fiberglass Fabric
3732 0.4mm Satin Glass Fibre Cloth / Fire Resistant Fiberglass Fabric
3732 0.4mm Satin Glass Fibre Cloth / Fire Resistant Fiberglass Fabric
3732 0.4mm Satin Glass Fibre Cloth / Fire Resistant Fiberglass Fabric
Specifications
Brand Name :
Unionfull
Model Number :
JT8430W-40-100
Certification :
ISO9001:2008, SGS
Place of Origin :
China
MOQ :
500 Meters
Price :
$1.4--$1.55/Square Meter
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
100000 square meters per day
Delivery Time :
30 Days after the payment
Packaging Details :
50m/roll in poly bag
Style :
3732 Fiberglass Fabric
Weight :
430gsm
Thickness :
0.4mm
Weave :
Satin/Cross Twill
Yarn Type :
E-glass
Feature :
Fire Resistant, Heavy Duty, High Strength
Application :
Fire Blanket, Welding Protection
Keyword :
3732 Fiberglass Fabric
Description

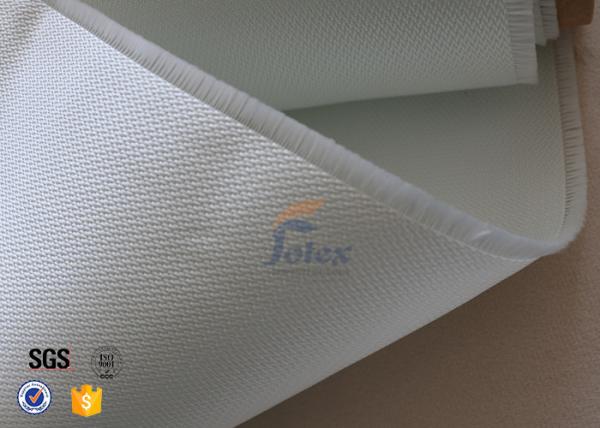

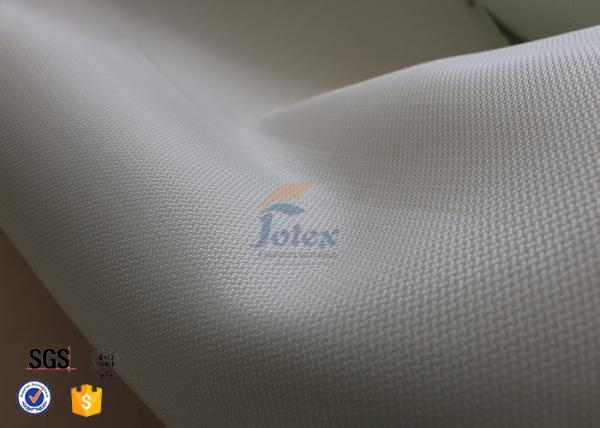

3732 0.4mm Satin Fiber Glass Cloth/ Fire Resistant Fiberglass Fabric

3732 fiberglass fabric is one of the industrial used fiberglass woven fabric which is in satin method with E-glass fiberglass yarns. The fiberglass cloth is weighed at 430g/m2. And thickness is 0.4mm. Satin weave is also called cross twill or break twill weave, compared with plain weave, it is a higher density, more flexible and loose structural weave.

This e-glass fiberglass cloth can be wet out with resin easily; What's more, this fiberglass fabric performs great in chemical resistance, heat protection, thermal insulation and durability. Therefore, it is used in glass fiber reinforced industrial application and in other fields.

E-glass fiberglass cloth can resist 550°C(about 1022°F) continuously. It is widely used for applications such as thermal insulation cover, heat/welding protection products, removable exhaust blanket(usually with silicone coating) for pipe/valve/pump, fireproof bags, fabric duct connector and expansion joint.

We usually coat this 3732 fiberglass fabric in order to achieve some peculiarities or meet special purpose. For example, for fireproof and waterproof we coat it with PTFE/PVC. For reflective application, aluminium foil laminating. For electrical insulation and heat resistant uaually use silicone/PU coating.

Specification Sheet

Items 3732 Fiberglass Fabric
Weave Satin/Cross Twill
Yarn Warp
Weft		 G37 1/0 0.7Z
G37 1/0 0.7Z
Thickness 0.43mm
Weight 430g/m²
Yarn Count Warp
Weft		 19.6/cm
11.5/cm
L.O.I% 0.5
Width 100cm, 127cm, 155cm
Working Temperature 550°C

Properties:

  1. Tear resistance, high tensile strength
  2. Chemical resistance
  3. High strength in both direction
  4. Heat resistance, thermal insualtion
  5. Electrical insulation
  6. Easily wet out by resin or Silicone/PTFE/PVC coating

Appplications:

  • Fire blanket
  • Jacketed vessel thermal insulation covers
  • Exchanger blanket
  • Welding protective product
  • Fabric expansion joints
  • Fire doors & fire curtains
  • Fireproof product: fireproof bag

Other Common Used Fiberglass Fabric:

Model

Yarn Count

(cm)

Mass Per Unit

(g/m2)

Thickness

(mm)

 Weave

Roll Length
3784 18/12 840 0.8 8HS Satin 1m*50m
3785 15/15 1050 1 8HS Satin 1m*50m
3786 17/11 1300 1.3 8HS Satin 1m*50m
3788 18/13 1600 1.6 8HS Satin 1m*50m
