Chemical Resistant Grey Silicone Coated Fiberglass Fabric Electric Insulation
Chemical Resistant Grey Silicone Coated Fiberglass Fabric Electric Insulation
Chemical Resistant Grey Silicone Coated Fiberglass Fabric Electric Insulation
Chemical Resistant Grey Silicone Coated Fiberglass Fabric Electric Insulation
Chemical Resistant Grey Silicone Coated Fiberglass Fabric Electric Insulation
Chemical Resistant Grey Silicone Coated Fiberglass Fabric Electric Insulation
Chemical Resistant Grey Silicone Coated Fiberglass Fabric Electric Insulation
Chemical Resistant Grey Silicone Coated Fiberglass Fabric Electric Insulation
Specifications
Brand Name :
Unionfull
Model Number :
UPSE-8732D160
Certification :
ISO9001:2008, SGS;TUV
Place of Origin :
China
MOQ :
500 Meters
Price :
$2.85-3.40/ Square Meter
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
50000 square meters per day
Delivery Time :
15 Working Days After Receiving Payment
Packaging Details :
50 meters per roll with poly bag
Base Cloth :
3732 Fiberglass Fabric
Coating :
Silicone, 80gsm per side
Total Thickness :
0.5mm
Weight :
590g
Width :
155cm
Feature :
Fireproof, High Strength, Electric Insulation
Weave :
Satin Weave
Keyword :
silicone coated fiber glass fabric
Description

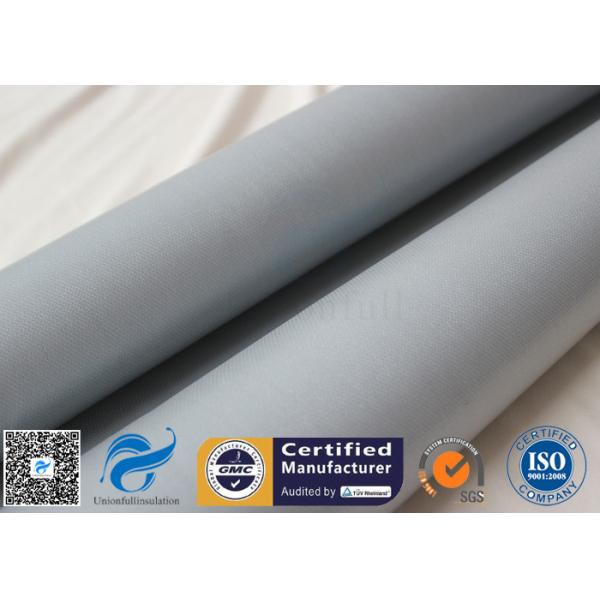

Chemical Resistant 3732 Grey Silicone Coated Fiber Glass Fabric

This silicone coated fiber glass fabric is 3732 fiberglass base cloth with 80g/m2 grey silicone coating each side. The base fiber glass cloth can used below 550℃ continuously. Silicone coating can be used below 260℃.

Woven fiber glass cloth are very common used for marine and composite construction and repair. This light weight but high strength cloth provide smooth finish and are excellent for producing a waterproofing layer or other treatment when is combined with the appropriate resin. Heavier cloths will provide greater strength and overall rigidity. Fiberglass cloths of Unionfull are compatible for use with polyester resins, epoxy resins or vinyl ester resin.

Base on silicone coating's properties, major application of silicone coated fiber glass cloth, rubber coated fabric are fire/welding blanket, fire curtains, fabric expansion joints, thermal insulation, removable insulation blankets, food handling operations and release sheet material.

Yarn type of e-glass 3732 fabric is e-glass G37 1/0 0.7Z fiberglass yarn.
Total weight is 510g/m2. 430g/m2+40g/m2 per side.
Common widths Unionfull produce are 100cm, 127cm and 155cm.

Technical Data Of 3732 Fabric
Number Thread Count Thickness Weight Width
3732

20 Ends/CM

11 Ends/CM

 0.4mm 430g/m2 0.9m-4.2m


Specification
Item Silicone Coated Fiberglass Fabric
Material E-glass Glass Fiber Yarn
Weave Satin Weave
Warp Density 20 Ends/CM
Weft Density 11 Ends/CM
Mass Per Unit 590g/m2(430+80+80)
Thickness 0.5mm
Width 155cm
Temperature

Cloth below 550℃
Coating below 260℃


Properties

  • Non-stick
  • Chemical Resistant
  • Excellent release features
  • High strength
  • Great Tear resistance
  • Electric Insulation
  • Working temperature range from -50℃ to +260℃


Application

  1. Welding blanket for welding spark/splash shield
  2. Conveyor belt
  3. Thermal insulation fabric
  4. High temperature fabric cloth
  5. Fabric duct and expansion joints
  6. Chemical corrosion resistant packing materials
  7. Electric insulation/fireproof covers for electric generator
  8. Aerospace, marine, chemical industry, automotive, construction


Picture:

Chemical Resistant Grey Silicone Coated Fiberglass Fabric Electric InsulationChemical Resistant Grey Silicone Coated Fiberglass Fabric Electric Insulation

About Fiber Glass

Extremely soft weave allows lay-up into the tightest parts. Can be used in many high performance composite parts where good drapability is needed.

Currently available in 39", 50" and 61" width.

E-glass fiberglass fabrics are most common used. It is high strength and fireproofing. S-Glass will has the same working qualities as a standard E-glass. But you will get an approximate 25-30% increase in breaking strength. Used in applications where the most possible strength is required while keeping weight to a minimum.
