LC APC LC UPC Fiber Optical Cable Singlemode Single Core OS2 Pigtail
LC APC LC UPC Fiber Optical Cable Singlemode Single Core OS2 Pigtail
LC APC LC UPC Fiber Optical Cable Singlemode Single Core OS2 Pigtail
LC APC LC UPC Fiber Optical Cable Singlemode Single Core OS2 Pigtail
LC APC LC UPC Fiber Optical Cable Singlemode Single Core OS2 Pigtail
LC APC LC UPC Fiber Optical Cable Singlemode Single Core OS2 Pigtail
Specifications
Model Number :
LC/APC~LC/UPC
Place of Origin :
China
MOQ :
1pcs
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Delivery Time :
3-5days
Packaging Details :
Standard Packing
Part number :
LC/APC~LC/UPC
Mode :
Single Mode
Number of cores :
SX
Insertion loss :
≤0.3dB
Return loss :
≥55dB
Fiber type :
OS2
Outer sheath material :
PVC(default),LSZH,OFNP
Test wavelength :
1310nm~1550nm
Description

Optical Fiber Cable LC/APC~LC/UPC Single-Mode Single-Core Carrier-Grade OS2 Pigtail

Prodcuct Parameters
Interface model:LC/APC~LC/UPC Mode:Single Mode
Insertion loss:≤0.3dB Number of cores:SX
Return loss:≥55dB Ferrule type:Class A ceramic ferrule
Reliability:≤0.2dB Operating temperature:'-40℃to +85℃
Repeatability:≤0.1dB Fiber type:OS2
Tensile strength:45KG Outer sheath material:PVC(default),LSZH,OFNP
Tensile strength:≥200N Test wavelength:1310nm~1550nm
Mating times:≥1000times Cable outer length:0.9mm,2.0mm(default)3.0mm
Minimum bending radius:38mm Optical fiber specifications:9/125µm

Offer OEM/ODM Service
LC APC LC UPC Fiber Optical Cable Singlemode Single Core OS2 Pigtail

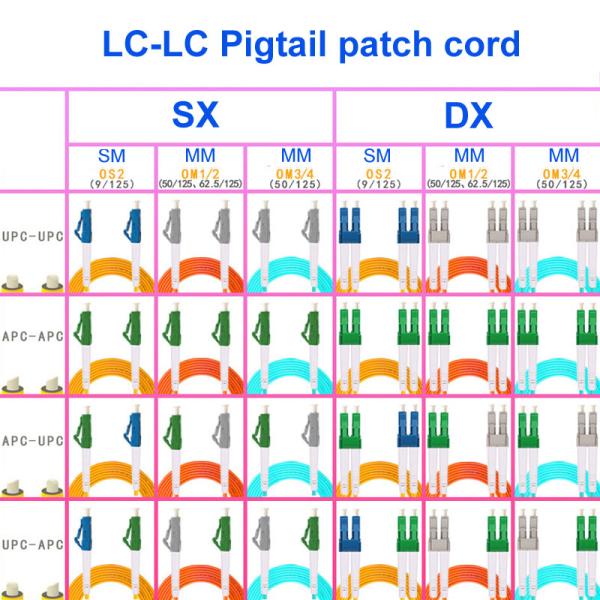

1 Connector A SC FC LC ST ...
2 Grinding type A PC,UPC,APC
3 Connector B SC FC LC ST ...
4 Grinding type B PC,UPC,APC
5 Fiber diameter 0.9MM,2.0MM,3.0MM...
6 Fiber length 1M,2M,3M,5M,10M,15M,20M,30M,50M,100M...
7 Outer sheath material PVC,LSZH,OFNP
8 Transmission mode SM9/125-OS2, MM62.5/125-OM1,MM50/125-OM2,MM50/125-
OM3,MM50/125-OM4...
9 Number of working cores SX, DX
10 Fiber type G652D,G657A1,G657A2...

Item Test Conditions SM MM
Optical properties Insertion loss upc SM:1310-1550nm ≤0.2dB ≤0.3dB
MM:850-1300nm
apc 1310-1550nm ≤0.3dB
Return loss upc SM:1310-1550nm ≥55dB ≥35dB
MM:850-1300nm
apc 1310-1550nm ≥65dB
Mechanical properties Impact test Height 1.8,8times <0.1dB <0.1dB
Vibration test 10~60HZ,1mmFull amplitude
Plug life ≥1000times
tensile strength >100N
Pressure test 45kg
Environmental characteristics High and low temperature cycle test -25℃to +70℃ 2cycles <0.2dB <0.2dB
High temperature test +80℃,2hours
Low temperature test -40℃,2hours
Warm test +40℃90~95%RH,2hours


LC APC LC UPC Fiber Optical Cable Singlemode Single Core OS2 Pigtail
