Specifications
Model Number :
12 fiber optic cable Aerial GYXTW
Certification :
CE Rohs SGS ISO
Place of Origin :
China
MOQ :
MOQ : 1000meter
Price :
Price : Negotiable
Payment Terms :
Payment Terms:T/T, L/C,paypal,Western Union
Supply Ability :
Supply Ability : 6,000,000 KM per year
Delivery Time :
Delivery Time :3 to 5 days for sample orders, 7 to 15days for bulk order
Packaging Details :
Packaging Details : according to the quantity of the order
Product Name :
12core Fiber optic cable GYXTW
Suitable Temperature: :
-40~70℃
Application :
Telecom Comunication
Fiber :
G652D/SM
Allowable tensile strength :
1500N
Allowable crush resistance :
1000N
Color :
Black
Description

12 core Fiber optic cable GYXTW G652D / SM Telecom Comunication

Description :

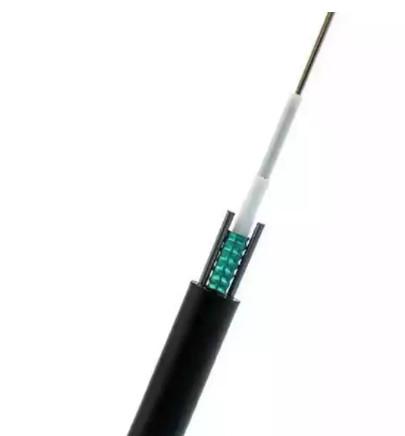

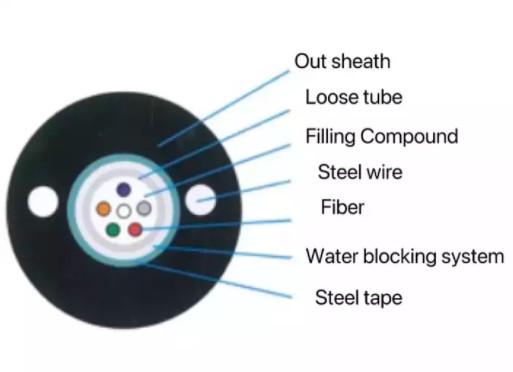

The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of PSP longitudinally. Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape. The cable is completed with a polyetene (PE) sheath.

12 Fiber Aerial Optical Fiber Cable GYXTW G652D / SM 1500N For Telecom Comunication

● The central loose tube protects the primary coated optical fiber

● The optical fiber is concentrated in the center of the cable, and the reinforcements are distributed on both sides of the cable sheath

● Water resisting layer is set between steel belt and cable core

Double side plastic coated corrugated steel strip - polyetene bonded outer sheath

● Double steel wire parallel reinforcement

Features:

● Small outer diameter, light weight and convenient construction

● Fiber excess length control is stable

● After cabling, the additional attenuation of the optical fiber is close to zero, and the dispersion value does not change

● Excellent environmental performance

Scope of application:

Long distance communication and inter office communication

Performance characteristics :

● Excellent water resisting layer with good seepage resistance

● The steel strip is bonded to the outer sheath and strengthened with metal, with excellent tension performance

● The central design of the bundle tube minimizes the influence of the optical fiber on the lateral force resistance of the optical cable

Note: rows of non-metallic structures can be designed according to user requirements
