High Power POE SFP Fiber Switch 16 POE Ports 2 SFP Ports 2 Uplink Ports
High Power POE SFP Fiber Switch 16 POE Ports 2 SFP Ports 2 Uplink Ports
Specifications
Brand Name :
AEO
Certification :
CE, FCC
Place of Origin :
China
MOQ :
1 pair
Price :
negotiation
Payment Terms :
T/T
Supply Ability :
10000 pairs/month
Delivery Time :
2-3 working days
Packaging Details :
package and carton
Voltage Range :
AC 100～240V
2 uplink Ethernet Port :
0-100M
POE power supply :
<260W
POE Agreement :
IEEE802.3 af/at standards
MTBF :
50000 hours
Switch Capacity :
40G
MAC Address :
8K
Working Temperature :
-10℃～55℃
Storage Temperature :
-40℃-85℃
Humidity(non-congeal) :
0~95%
Gigabit POE ports :
16
Gigabit SFP ports :
2
Gigabit Uplink port :
2
Description

Full Gigabit POE SFP Fiber Switch 16 POE Ports + 2 SFP Ports + 2 Uplink Ports

Technical Parameters

Item Description
Model AEO-816GP-2G2SFP
Power Supply Voltage Range AC 100-240V
Power Consumption The device <5W, POE power supply <260W
Network Port Parameter Network Ports

1～16 Ports: 10/100/1000Mbps Ethernet port, adaptive control

2-Port 10/100/1000Mbps RJ45 interface for uplink

2 1.25Gbps SFP
Transmission Distance

1~18 Ethernet Port:0~100m

19-20 SFP: according to SFP module
Transmission Media 1~18 Ethernet Port:Cat5e/6 standard UTP cable
POE Agreement IEEE802.3 af/at standards
PoE Power Supply Mode End-span method
PoE Power Supply Wattage Each port≤30W,Whole device<260W
Network Switch Specification Network Standard IEEE802.3 10BASE-T, IEEE802.3u 100BASE-TX, IEEE802.3ab 1000BASE-T
Swap Mode Store-and- forward
Switch Capacity 40Gbps
MAC Address List 8K
Status Indicators Power Indicator Light One power light (green)
PoE Indicator 1~16 PoE indicator light(yellow)
Network Port LED

1~18 port ( green light on RJ45 jack) Keeps on when normally connected, Blinking when transceiver data

19-20 Keeps on when working
Protection Level Surge Immunity Level 3, executive standard:IEC61000-4-5
Electrostatic Protection 1a touch electric discharge: level 3 1a Air discharge: level 3 Executive standard:IEC61000-4-2
Operating Environment Working Temperature -10℃～55℃
Storage Temperature -40℃-85℃
Humidity(non-congeal) 0~95%
Mechanical Attributes Dimensions (L*W*H) 440mm×260mm×44mm
Color Blue
Weight 3kg
Reliability Mean time between failures (MTBF) ＞50000h

Product Overview

To fulfill the demand of High Power PoE for network applications with Gigabit transmission, AEO-816GP-2G2SFP PoE Gigabit Ethernet Switch is an ideal solution. Each 10/100/1000Mbps port of the it features IEEE 802.3af and IEEE 802.3at Power over Ethernet (PoE) that combine up to 260-watt PoE budget on the whole system. All RJ45 copper interfaces of it support 10/100/1000Mbps auto-negotiation for optimal speed detection through RJ45 Category 6, 5 or 5e cables. It also supports standard auto-MDI/MDI-X that can detect the type of connection to any Ethernet device without requiring special straight or crossover cables.

Product features

  • Complies with IEEE 802.3, 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T
  • 16-Port 10/100/1000Mbps supports 52V DC power to PoE Powered Device
  • 2-Port 10/100/1000Mbps RJ45+2 1.25Gbps SFP interface for uplink
  • Complies with IEEE 802.3af/802.3at Power over Ethernet End-Span AEO
  • Up to 16 IEEE 802.3af devices powered
  • Supports PoE Power up to 15.4 watts for each PoE port
  • Up to 8 IEEE 802.3at devices powered
  • Supports PoE Power up to 30 watts for each PoE port
  • 260-watt PoE budget
  • Auto detects powered device (PD)
  • Circuit protection prevents power interference between ports
  • Remote power feeding up to 100m
  • Hardware based 10/100/1000Mbps auto-negotiation and auto MDI/MDI-X
  • Features Store-and-Forward mode with wire-speed filtering and forwarding rates
  • Integrates address look-up engine, supporting 8K absolute MAC addresses
  • Automatic address learning and address aging
  • Made of metal, desktop size and wall-mount design

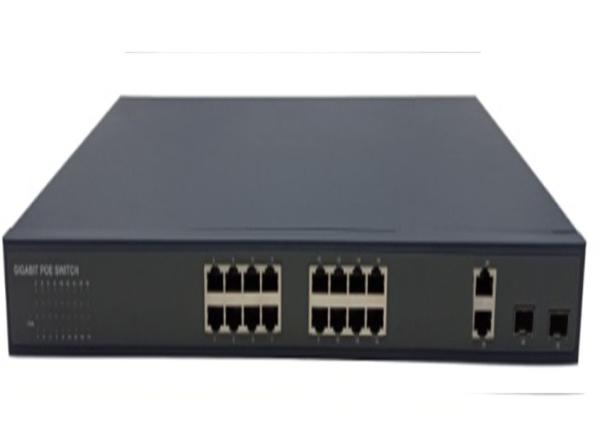

Product Picture

High Power POE SFP Fiber Switch 16 POE Ports 2 SFP Ports 2 Uplink Ports

Packaging & Shipping

● All of our package are international standard package

● We will deliver our products as soon as the order confirmed

High Power POE SFP Fiber Switch 16 POE Ports 2 SFP Ports 2 Uplink Ports
