Industrial POE Ethernet Fiber Switch Full Gigabit 1 SFP and 8 POE Ports
Industrial POE Ethernet Fiber Switch Full Gigabit 1 SFP and 8 POE Ports
Specifications
Brand Name :
AEO
Certification :
CE, FCC, ROHS
Place of Origin :
China
MOQ :
1 piece
Price :
negotiation
Payment Terms :
T/T
Supply Ability :
10000 pcs/month
Delivery Time :
5-8 working days
Packaging Details :
package and carton
Gigabit SFP port :
1
Gigabit POE ports :
8
Wave Length :
1310/1550nm
Transmission distance :
0-100km
Operating temperature :
-40℃ ~ + 85℃
Working Humidity :
5%~95 % (no condensation)
Description

Industrial POE Ethernet Fiber Switch Full Gigabit 1 SFP and 8 POE Ports

Main Advantages of the SFP Fiber Switch:

1. IPC Extender: the distance can be 250m from the camera to the media converter

2. VLAN is to inhibit the network storm.

3. CBIT is to ensure the image more steady and clear

4. Transmission distance can be 20-100km

5. Single/multimode single/dual fiber

6. SC/ST/FC/LC is optional

Technical Parameters

Backboard capacity 20G
Cache 2M
MAC address 16K
Max frame 10Kbytes
Ethernet port 8 POE 10/100/1000Mbps rj45 ports
Optic interface SFP
Ethernet port (10/100/1000Mbps) 8
Optic interface (10/100/1000Mbps) 1
Optical type Single fiber single mode, 9/125um (multi-mode, 50um/125unu)
Optical interface FC, SC, LC,ST for option
Transmission distance Standard 20Km (single fiber single mode), it is customized for max. 100Km
Input voltage DC44V - 57V
Working temperature -40℃ ~ 85℃
Relative humidity 5% ~ 90% (Non-Condensing)
Shell Material Iron
Heat dissipation Built-in passive heatsink cooling, Silent fanless design
Surge protection (Ethernet) Common mode ±4KV(10/700µS), Differential mode ±2KV(10/700µS)
Surge protection (Power) 2000A (8/20µS)
POE Standard Protocol IEEE 802.3af/at
Pin Definition V+,V+,V-,V- Corresponding to 1,2,3,6
The Output Power IEEE802.3af:15.5W IEEE802.3at:25.5W
Power consumption

Full load≤5W
Mean Time Between Failure (MTBF) 100,000 hours
Dimension (mm) 135x105x44mm

System Overview

Industrial grade media converter adopts industrial-grade design solution, through Electro-optical technique conversion, it can transfer data signal by different transmission media of twisted pair and fiber in new high-speed Ethernet network, multi-channel of HD 1080P network signals can be transferred without delay, it can meet the user’s requirements of long range transmission and high-speed transmission, the max high-speed transmission distance of HD network signals can reach 100 Km without repeater.

Product Features

Built-in United States Marvell industrial-grade network switching chips, performance is stable and reliable

Automatically compatible with IEEE802.3, IEEE802.3U, IEEE802.3X network protocols

Supports full duplex and half duplex transfer modes, and with auto-negotiation skills

Adaptive parallel line / crossover cable connection

With APC circuit, constant output optical power, large dynamic range.

Advanced adaptive technologies, without the need for on-site electrical or optical adjustment when using

Power port and network signals comply with Three-level lightning protection technology

Industry-standard design, IP30 shell protection

Desktop style and din rail style installation for option

Supports a variety of power supply wiring, power overload protection, anti-reverse polarity protection

POE solution (optional): compatible with standard protocol IEEE802.3af /at.

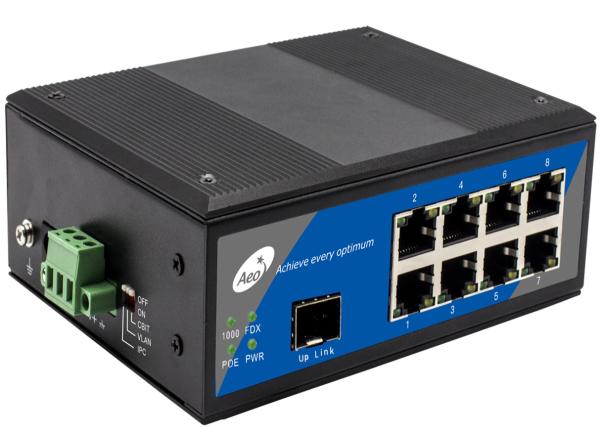

Product Pictures

Industrial POE Ethernet Fiber Switch Full Gigabit 1 SFP and 8 POE Ports

Packaging & Shipping

● All of our package are international standard package

● We will deliver our products as soon as the order confirmed

Industrial POE Ethernet Fiber Switch Full Gigabit 1 SFP and 8 POE Ports
