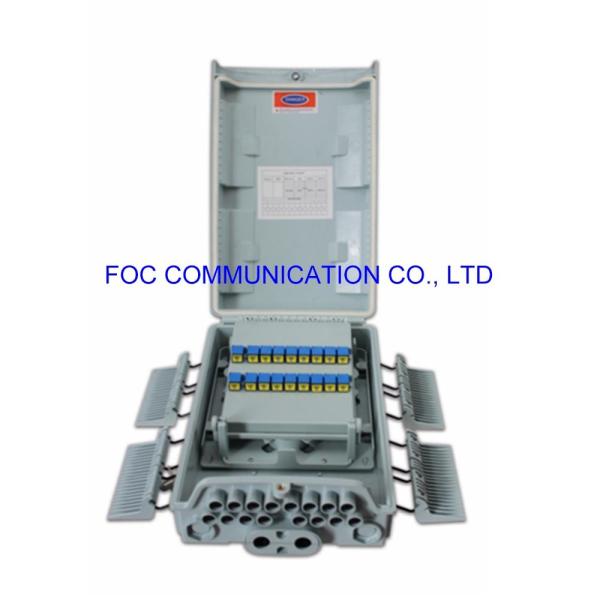

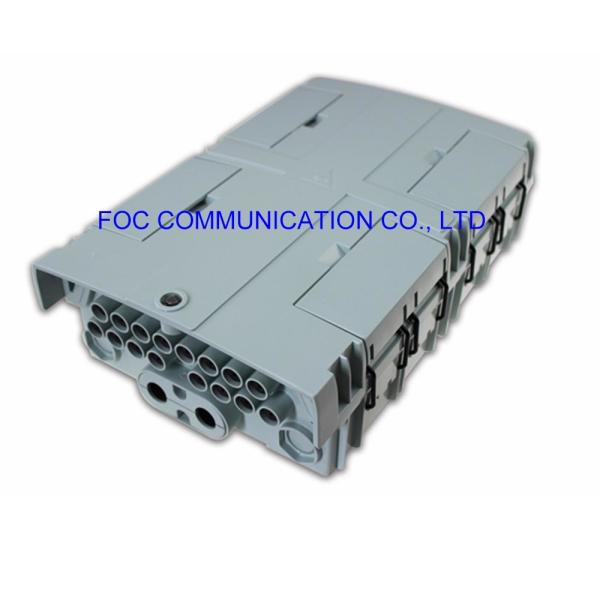

FTTH 16ports Fiber Optic Termination Box 120F FATB-0416S
FTTH 16ports Fiber Optic Termination Box 120F FATB-0416S
FTTH 16ports Fiber Optic Termination Box 120F FATB-0416S
FTTH 16ports Fiber Optic Termination Box 120F FATB-0416S
Specifications
Brand Name :
FOCABLE
Model Number :
Fiber Access Terminal Box FATB-0416S
Certification :
RoHS Compliant, SGS Certificate, ISO Certificate
Place of Origin :
China
MOQ :
10PCS
Supply Ability :
10000pcs/month
Delivery Time :
3-5days
Packaging Details :
1PCS/Carton
Reinforced Adapter :
16pcs SC/UPC or 16pcs SC/APC
Port :
16ports
IP Protection Level :
IP65 Protection Level
Fiber :
120 Fibers
Quality Control :
100% test before shipping
Splitter :
1*8 or 1*16 Splitter can be installed
Description

Fiber Access Termination Box FATB-0416S with two-steps Splitter Cassettes

Fiber access termination box FATB-0416S is able to hold up to 16 subscribers. It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.


 Features
 Water-proof design with IP-65 Protection level. Integrated with splice trays and two-steps splitter cassettes. Maximum 12F splice capacity, stainless anti-rust bolts and nuts. Easy for maintenance and expansion. Fiber bend radius control more than 40mm. 180 degree access with buckled lock structure. 1*8 PLC Splitter can be installed in each splitter cassette. 16 pcs of mechanical ports for 3-7mm drop cable. 1 mid- span cable entrance(10-16.5mm) for uncut cable and 2 reserved cable entrances for distribution cable gland(8-13.5mm).
  Configuration
 Fiber Access Terminal Box FATB-0416S Parameter

 Material

 Size

 Max Capacity

 Reinforced Adapter

 Weight

 Color

 PC+ABS

 AxBxC(mm)

 Splice 120 Fibers

 PLC splittter

 18pcs SC/UPC

 1.85kg

 Grey/Black

 340x220x95


 2pcs of 1x8(SC)

 or 18pcs SC/APC

  Application
 ● Wall-mounted installation ● Pole-mounted installation ● Aerial-hanging installation ● Suitable for 2*3mm indoor FTTH drop cable an outdoor 4-7mm figure-8 self-supporting drop cable

Standard Accessories
Splice cassette and cable management tool, installation nuts and bolts, protection sleeves, cable tube, key, wrench, rubber seal for cable entrance.

Optional Accessories
Pole mounted kits
