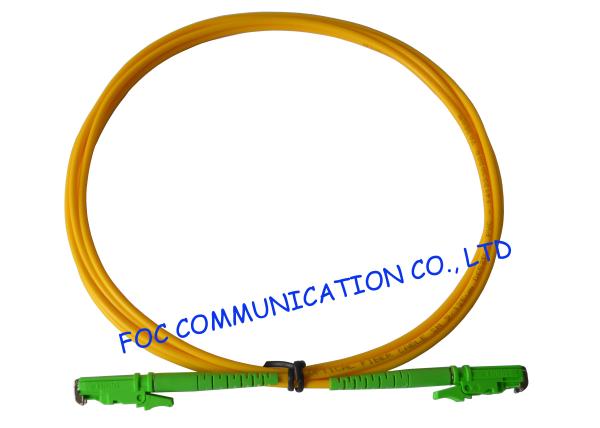

E2000 Fiber Optic Patch Cord SM G.652D Fiber Simplex 3.0mm For Telecom Networks
E2000 Fiber Optic Patch Cord SM G.652D Fiber Simplex 3.0mm For Telecom Networks
Specifications
Brand Name :
FOCABLE
Model Number :
E2000/APC SM Fiber Optic Patch Cord Simplex
Certification :
RoHS Compliant, SGS Certificate, ISO Certificate
Place of Origin :
China
MOQ :
10PCS
Delivery Time :
3-5days
Packaging Details :
1PCS/PE Bag
Fiber Type :
SM, OM1, OM2, OM3, OM4
Cable Material :
PVC, LSZH, OFNP, OFNR, Hytrel
Cable Diameter :
0.9mm, 1.6mm, 1.8mm, 2.0mm, 2.4mm, 3.0mm
Connector :
SC/APC, SC/UPC, FC/APC, FC/UPC, LC/APC, LC/UPC, ST, E2000, MU, MPO, MTRJ
Cores :
Simplex, Duplex, 4cores, 6cores, 8cores, 12cores, 24cores, 48cores
Length :
1M, 2M, 3M, 5M or as per customer request
Description

E2000 APC Fiber Optic Patch Cord Customized For FTTX

E2000 fiber optic patch cord is with low Insertion Loss and high Return Loss. The patch cable contacting different connector or interface is called single mode patch cable. We apply the advanced technology and equipment to large-scale produce, producing the products of superior performance and reliable quality.

1.All ceramic ferrules for maximum optical and mechanical performance.

2.All patch cords are 100% optically inspected and tested individually.

3.A variety of fiber and cable types available

4.A variety of boot styles and colors available.

5.Custom print length and jacket colors available

Features:
Low insertion loss, high return loss
High dense connection, easy for operation
High credibility and stability
Good in repeatability and exchangeability


Application:
Testing equipment
FTTX+LAN
Optical fiber CATV
Optical communication system
Telecommunication

Specification:

Parameter

Unit

FC, SC, LC/ Armoured fiber patch cord

ST, MU

MT-RJ, MPO

E2000

SM

MM

SM

MM

SM

MM

SM

PC

UPC

APC

PC

PC

UPC

PC

PC

UPC

PC

PC

APC

Insertion loss(typical)

dB

≤0.3

≤0.2

≤0.3

≤0.2

≤0.3

≤0.2

≤0.2

≤0.3

≤0.2

≤0.2

≤0.3

≤0.3

Return loss

dB

≥45

≥50

≥60

≥30

≥45

≥50

≥30

≥45

≥50

≥35

≥55

≥75

Operating wavelength

nm

1310, 1510

1310, 1510

1310, 1510

1310, 1510

Exchangeability

dB

≤0.2

≤0.2

≤0.2

≤0.2

Vibration

dB

≤0.2

≤0.2

≤0.2

≤0.2

Operating temperature

°C

-40~75

-40~75

-40~75

-40~75

Storage temperature

°C

-45~85

-45~85

-45~85

-45~85

Cable diameter

mm

φ3.0, φ2.0, φ0.9

φ3.0, φ2.0, φ0.9

φ3.0, φ2.0, φ0.9

φ3.0, φ2.0, φ0.9

Order Ordering information

Interface

Connector

Length

OD

Color of jacket

Jacket

Fiber Type

Cores

P-PC

FC-FC

1M

0.9mm

B-Black

P-PVC

SM

Simplex

U-UPC

SC-SC

3M

1.6mm

Y-Yellow

L-LSZH

MM 50/125um

Duplex

A-APC

LC-LC

5M

1.8mm

W-White

OFNR

MM 62.5/125um

4cores

ST-ST

10M

2.0mm

Customized

OFNP

MM OM3

6cores

MU-MU

Customized

3.0mm

Customized

MM OM4

8cores

MTRJ-MTRJ

Customized

12cores

E2000-E2000

24cores

DIN

Customized

Customized
