Multimode Outdoor Optical Fiber Cable GYFTY53 With FRP Strength Member For Buried
Multimode Outdoor Optical Fiber Cable GYFTY53 With FRP Strength Member For Buried
Specifications
Brand Name :
FOCABLE
Model Number :
Fiber Optic Cable GYFTY53
Certification :
ISO Certificate, RoHS Compliant
Place of Origin :
China
MOQ :
1KM
Payment Terms :
T/T, Western Union
Supply Ability :
1000KM/Month
Packaging Details :
1KM/drum
Jacket Material :
PE Jacket
Cores :
12Cores, 24Cores, 36Cores, 48Cores, 72Cores, 96Cores
Fiber Type :
SM G.652D, SM G.657, MM 50/125um, MM 62.5/125um, OM3, OM4
Jacket Color :
Black or Customer Request
Description

Multimode Outdoor Fiber Optic Cable GYFTY53 With FRP Strength Member For Buried​

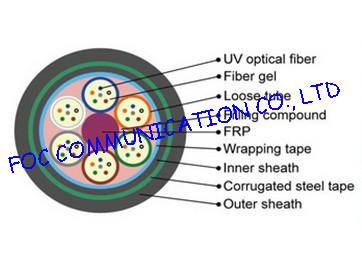

The fibers, 250μ m, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A Fiber Reinforced Plastic (FRP) locates in the center of core as a non-metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular core. After the cable core is filled with the filling compound to protect it from water ingress, the cable is completed with a PE sheath.

Fiber optic cable GYFTY53 is non-metallic cable used for power transmission system, excessive thunder areas and high electromagnetic interface. The main applications for GYFTY53 cable is for buried. GYFTY53 cable is used in high voltage area for long distance communications.

Features
Jelly-filled loose tube
Central non-metallic strength member
Nonmetallic reinforcement (if necessary)
PE outer sheath, double jacket design enhancing the crushing performance
Low loss, low chromatic dispersion
Excellent flexible capability and protection capability against bending
Filling water-blocking jelly brings entirely cross section double water-blocking capability
All non-metallic structure brings good anti-electromagnetic interference capability

Accurate fiber excess length ensures good mechanical and temperature performance

High strength loose tube tube that is hydrolysis resistant and special tube filling compound ensure a critical protection of fiber

Specially designed compact structure is good at preventing loose tubes from shrinking

Crush resistance and flexibility

The following measures are taken to ensure the cable watertight:

100% cable core filling

PSP enhancing moisture-proof

Water-blocking material

Laying method

Aerial and duct

Specifications

Fiber Count

Outer Diameter

(mm)

Cable Weight

(kg/km)

Max.Tensile Strength(mm)

Max.Crush Resistance(N/10mm)

Max.Radius Resistance(mm)

Static

Dynamic

Short term

Long term

Short term

Long term

2~144

12.0~17.0mm

110 kg/km ~270 kg/km

1500

600

1000

300

(10D)mm

(20D)mm

Ordering Information

1. Ariel Fiber Optic Cable

Model Specification
GYXTC8A(S) 9/125, 50/125,62.5/125, 4~144 cores, aluminum tape or steel tape
GYTC8A(S) 9/125, 50/125,62.5/125, 4~144 cores, aluminum tape or steel tape

2. Duct Fiber Optic Cable

Model Specification
GYTA(S) 9/125, 50/125,62.5/125, 4~144 cores, aluminum tape or steel tape
GYXTW 9/125, 50/125,62.5/125, OM3, OM4 ,4~12 cores
GYXY 9/125, 50/125,62.5/125, 4~12 cores

3. Direct Burial Fiber Optic Cable

Model Specification
GYTA53 9/125, 50/125,62.5/125, 4~144 cores
GYTS53 9/125, 50/125,62.5/125, 4~144 cores

4. ADSS Fiber Optic Cable

5. Indoor Fiber Optic Cable

Model Specification
Simplex patchcord cable 2.0/3.0mm, 9/125,50/125,62.5/125, OM3-150, OM3-300,OM3-550, PVC/LSZH jacket, high strength yarn/Aramid yarn
Duplex patchcord cable 2.0/3.0mm, 9/125,50/125,62.5/125, OM3-150, OM3-300,OM3-550,PVC/LSZH jacket,high strength yarn/Aramid yarn
Indoor distribution cable 9/125,50/125,62.5/125,OM3-150,OM3-300,OM3-550,2~24 cores, PVC/LSZH
Indoor breakout cable unit cable 2.0/3.0mm, 9/125,50/125,62.5/125,OM3-150,OM3-300,OM3-550,2~12 cores, PVC/LSZH

6.FTTH Drop Cable

Model Specification
FTTH cable 1~2 cores, SM/MM, PVC/LSZH, Metallic/FRP strength member
FTTH drop cable 1~2 cores, SM/MM, PVC/LSZH, Metallic/FRP strength member

Fiber Optic Cable, Optical Fiber Cable, Tight buffered cable, Fiber Cable
