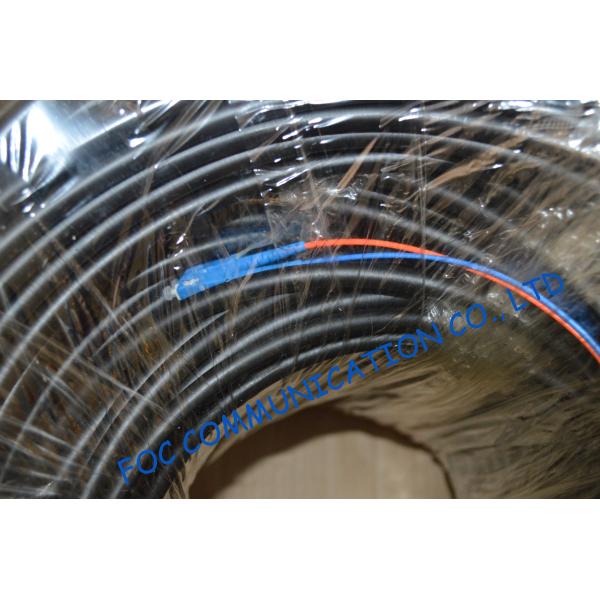

Waterproof Fiber Optic Patch Cord FC / APC Multicore for CATV System
Waterproof Fiber Optic Patch Cord FC / APC Multicore for CATV System
Waterproof Fiber Optic Patch Cord FC / APC Multicore for CATV System
Waterproof Fiber Optic Patch Cord FC / APC Multicore for CATV System
Specifications
Brand Name :
FOCABLE
Model Number :
Waterproof FC/APC-FC/APC SM Duplex Armored Fiber Optical Patch Cord
Certification :
RoHS Compliant, SGS Certificate, ISO Certificate
Place of Origin :
China
MOQ :
10PCS
Delivery Time :
3-5days
Packaging Details :
1PCS/PE Bag
Fiber Type :
SM, OM1, OM2, OM3, OM4
Cable Material :
PVC, LSZH, OFNP, OFNR, Hytrel
Cable Diameter :
0.9mm, 1.6mm, 1.8mm, 2.0mm, 2.4mm, 3.0mm
Connector :
SC/APC, SC/UPC, FC/APC, FC/UPC, LC/APC, LC/UPC, ST, E2000, MU, MPO, MTRJ
Cores :
Simplex, Duplex, 4cores, 6cores, 8cores, 12cores, 24cores, 48cores
Length :
1M, 2M, 3M, 5M or as per customer request
Description

Waterproof Fiber Optic Patch Cord FC / APC Multicore for CATV System

Waterproof patch cable is mainly used in outdoor connection of the optical transmitter and provide protection from harsh enviroments. Better environment flexibility, easily and reliable installment, long life, good toughness, and well done in the serious environment are their characteristics.

FOC COMMUNICATION CO., LTD is the professional manufacture of fiber optic components. We produce the whole series fiber optic patc cord, including breakout cable patch cord, ribbon fan out patch cord, indoor armored patch cord, outdoor armored patch cord, waterproof patch cord, OM3 and OM4 patch cord.

Features

The fan-out cable sealed with stainless metal branch unit
High return loss and low insertion loss
Currency waterproof, be the same with atrocious weather
Good reliability and stability

Applications

FTTH, LAN, Testing equipment, Military Industry

Fiber optic communication system

Optical active component and equipment

Measuring equipments

Specification

Model NO. Fiber Optic Patch Cord
Style LC,SC,ST,FC.MU,MPO, SC/APC,FC/APC,LC/APC.MU/APC
Simplex/Duplex MTRJ/Female, MTRJ/Male
Fiber Type 9/125 SMF-28 or equivalent (Singlemode) OS1 50/125, 62.5/125 (Multimode) OM2&OM1 50/125,
10G (Multimode) OM3
Cable Type Simplex, Duplex (Zipcord) Φ3.0mm, Φ2.0mm, Φ1.8mm Φ1.6mm PVC or LSZH Φ0.9mm, Φ0.6mm buffered fiber
PVC or LSZH
Polishing Manner UPC,SPC,APC (8°& 6°)
Insertion Loss ≤ 0.1dB (For Singlemode Master) ≤ 0.25dB (For Singlemode Standard) ≤ 0.25dB (For Multimode)
Return Loss (For Singlemode) UPC ≥ 50dB SPC ≥ 55dB APC ≥ 60dB (typ.65dB)
Repeatability ±0.1dB
Operating Temperature -40°C~+85°C
Geometry Requirement (For Singlemode) Ferrule Endface Radius 7mm ≤ R ≤ 12mm (For APC) 10mm ≤ R ≤ 25mm (For Standard) Apex Offset ≤ 30 μm (For Master) Apex Offset ≤ 50 μm (For Standard) Undercut -50nm ≤ U ≤ 50nm

Waterproof Fiber Optic Patch Cord FC / APC Multicore for CATV System

Fiber Optic Patch Cord, Optical Fiber Patch Cord, Fiber Optic Assemblies, Fiber Jumpers
