User self - calibration Handheld fiber optic power meter up to 80dB LC Connector
User self - calibration Handheld fiber optic power meter up to 80dB LC Connector
Specifications
Brand Name :
FOCABLE
Model Number :
Fiber Optic Power Meter FO3211
Certification :
RoHS Compliant, ISO Certificate
Place of Origin :
China
MOQ :
1PCS
Payment Terms :
Western Union, T/T
Supply Ability :
5000PCS/MONTH
Packaging Details :
1PCS/BOX
Type :
Handheld or Bench-top
Wavelength :
850nm, 1300nm, 1310nm, 1490nm, 1550nm, 1625nm
Measurement Range :
-70～+26dBm
Connector :
SC, FC, LC
Description

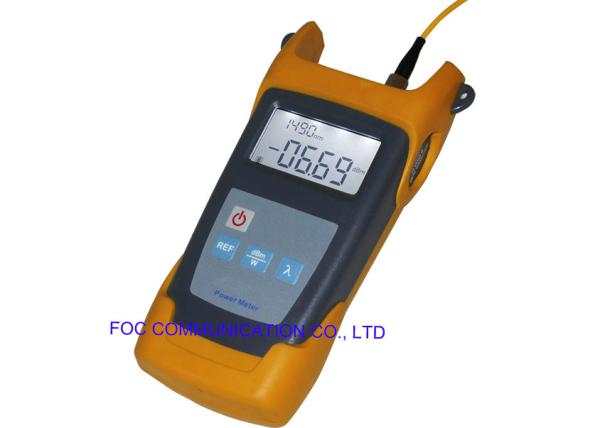

Handheld Fiber Optic Power Meter FO3211 Small Size New Design For Fiber Networks

General information

FO3211 optical power meter is a handheld optical power meter, newly released in 2007, which can be used for absolute optical power measurements as well as for relative loss measurements in optic fiber networks . Its photosensitive area photodiode is used to significantly improve the stability and the reliability. It features ingenious appearance, wide range of power measurement, high accuracy, user self-calibration function and reference power level storage.

Key Features

Wide dynamic measurement range (up to 80dB)

Reference power level storage(Ref Setting)

User self-calibration function

Comfortable LCD display and backlight LCD display supports night operation.

Power measurements in dBm or mw and insertion loss in dB

10 minutes Auto-off function can be activated or deactivated.

AA alkaline batteries can last more than 140 hours, AC adaptor also available

Low battery indication

Specifications

Model

FO3211A

FO3211C

Wavelength(nm)

800~1700nm

Detector type

InGaAs

Detector Size

ф 1.0mm

Measurement Range(dBm)

-70～+10

-50～+26

Uncertainty (dB)

±0.25

Calibrated Wavelength(nm)

850,1300,1310,1490,1550,1625

Display resolution(dB)

0.01

Optical Connector type

FC,SC,ST interchangeable

Alkaline battery

3*AA,1.5V, AC Adaptor(8.4V)

Power Supply Adaptor(V)

8.4

Battery Operating time (h)

140 h with 1.5V Battery(3pcs)

Operation Temperature(℃)

-10～+60

Storage Temperature(℃)

-25～+70

Relative Humidity

0 to 95% (non-condensing)

Outline size(mm)/weight

192*102*50(300g)

Standard Package

MODEL INCLUDES
All 3211 Models 3211 Optical Power Meter, 3pcs 1.5V batteries, AC Adaptor, User Manual, Cotton swabs and Soft carrying case.
