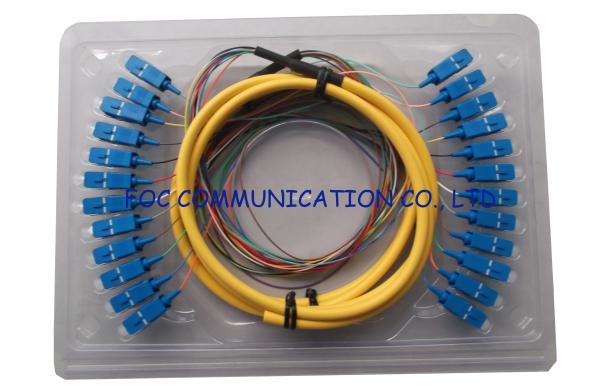

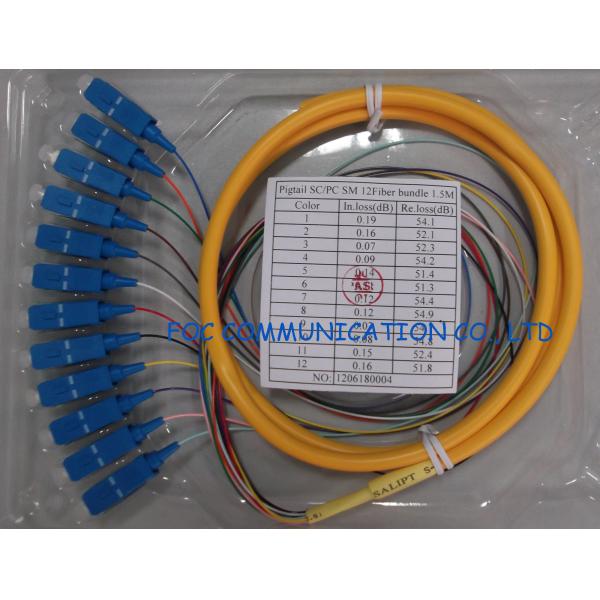

LSZH SC Fiber Optic Pigtail Multi Core Distribution Fan Out Singlemode
LSZH SC Fiber Optic Pigtail Multi Core Distribution Fan Out Singlemode
Specifications
Brand Name :
FOCABLE
Model Number :
SC/UPC 12Core Fan Out Pigtail
Certification :
ISO, RoHS Compliant
Place of Origin :
China
MOQ :
10pcs
Packaging Details :
1PCS/Blister Box
Cable :
PVC, LSZH, OFNP, OFNR, Hytrel
Cores :
Simplex, Duplex, 2core, 4core, 6core, 8core, 12core, 24core
Fiber :
OS1, OS2, OM1, OM2, OM3, OM4
Outer Diameter :
0.9mm, 1.6mm, 2.0mm, 2.4mm, 3.0mm
Connector :
FC, FC/APC, SC, SC/APC, LC, LC/APC, ST, E2000, MU, MTRJ, MPO
Length :
1M, 2M, 3M, 5M or as per customer request
Description

LSZH SC Fiber Optic Pigtail Multi Core Distribution Fan Out Singlemode

Fiber pigtail is a similar product of fiber patch cable. The difference is that fiber pigtail has only one fiber connector on the end and a length of exposed fiber cable at the other end on the other end. Fiber pigtail usually comes with usually unbuffered optical fibre one side of the cable, there are single mode and multimode fiber optic pigtails, which can be assembled by various types of fiber optic terminations such as SC, FC, ST, LC, MU, MTRJ, MTP, MPO, etc.

The cable end of fiber pigtail is always used to be fusion spliced to a single fibre of a multi-fibre trunk to break out the multi-fibre cable into its component fibres for connection to the end equipment. Therefore, A good quality fiber pigtail is a basic and very important solution to fiber optic cablings.

Features
Simplex, and multi-fiber assemblies are available

PC or APC finish
Compliant with Telcordia GR-326-CORE specification
Applicable connector: FC, SC, ST, LC…
Cable material: PVC, LSZH,

Fiber Type: SM, MM OM1, OM2 or OM3 optional
Cable size: Φ 0.9mm, Φ 2.0mm, Φ 3.0mm

Application
Test equipment
Optical CATV & LAN
Telecommunication networks
Optical communication networks

Specifications

Mode Single mode Multimode
Polish UPC APC PC
Insertion Loss ≤0.3dB ≤0.3dB ≤0.3dB
Return Loss ≥55dB ≥65dB ≥35dB
Interchangeability ≤0.2dB
Salt Spray ≤0.1dB
Repeatability ≤0.1dB (1000 times)
Vibration ≤0.2dB (550Hz 1.5mm)
Temperature ≤0.2dB (-40+85 sustain 100 hours)
Humidity ≤0.2dB (+25+65 93 R.H.100 hours)
Apex Offset 0μm ~ 50μm
Radius of Curvature 7mm ~ 25mm

LSZH SC Fiber Optic Pigtail Multi Core Distribution Fan Out Singlemode

Fiber Optic Pigtail, Optical Fiber Pigtail, Fiber Pigtail, Fiber Pigtails
