VFL650-5S Visual Fault Locator Fiber Optic Test Equipment RoHS Compliant
VFL650-5S Visual Fault Locator Fiber Optic Test Equipment RoHS Compliant
VFL650-5S Visual Fault Locator Fiber Optic Test Equipment RoHS Compliant
VFL650-5S Visual Fault Locator Fiber Optic Test Equipment RoHS Compliant
Specifications
Brand Name :
FOCABLE
Model Number :
Visual Fault Locator VFL650-5S
Certification :
RoHS Compliant, ISO Certificate
Place of Origin :
China
MOQ :
1PCS
Payment Terms :
Western Union, T/T
Supply Ability :
5000PCS/MONTH
Packaging Details :
1PCS/BOX
Type :
Handheld
Wavelength(nm) :
650
Output power :
5mW, 10mW, 20mW, 30mW
Optical Connector :
FC
Description

Fiber Optic Test Equipment Visual Fault Locator VFL to Inspect Fiber Failure

General information

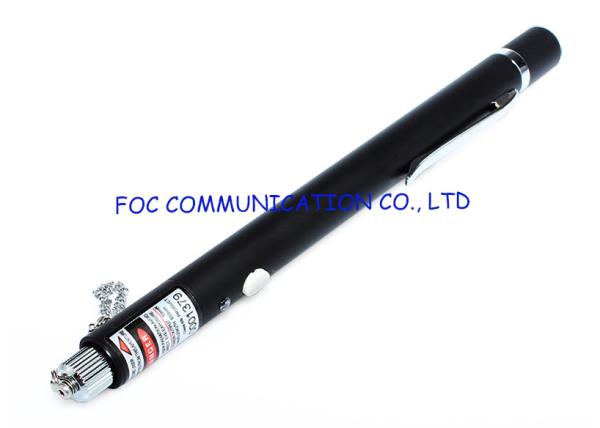

This pen-style VFL is a 650 nm wavelength visual fault finder. The handheld visual fault finder locates macro bends, poor splices and bad connectors.

  • The pen red light emitting device by using 650nm semiconductor laser to emit red light, stable, and optical interface is connected into themultimode and single-mode optical fiber, optical fiber fault detection function.
  • Optical engineering construction, network maintenance, fiber optical devicesindispensable production and research tools.
  • Application:Telecom, CATV engineering and maintenance Integrated wiring construction and maintenance The production and research of optical devices
  • Laser case ground design prevents ESD damage, LED indicator for Power,Battery Low and CW/Pulse indicators

Applications

  1. Optic fiber communication and maintenance
  2. Security system optic fiber transmitter setup and maintenance
  3. Optic fiber CATV system and maintenance
  4. Optic fiber sensing research
  5. Optical devices manufacture and research

Features

  1. Well LD as light source
  2. CW and MOD mode
  3. Detection distance
  4. Stable power output
  5. Low power
  6. Multiple electrostatic protection
  7. Rugged enclosure
  8. Pen shape design, convenient to carry and use

Function

  1. Fiber breakage, bending failure location Fault check
  2. OTDR dead zone
  3. End-to-end optical recognition
  4. Mechanical connection point optimization

Technical Specifications

Model

VFL650-5S

Central wavelength

650nm±10nm (635nm is available on request)

Emitter type

FP-LD

Output power

5mw

10mw

20mw

30mw

Laser Range

≥5KM

≥10KM

≥20KM

≥30KM

Optical connector

2.5mm universal connector, for 1.25mm connectors, FC (Male)-LC. (Female) convertor can be provided on request

Operating model

Both CW and Pulse available

Pulse frequency

2Hz to 3Hz/9Hz

Power supply

2AA alkaline batteries

Battery

AA alkaline battery

Operating temperature

-20°C to 60°C

Storage temperature

-40°C to 85°C

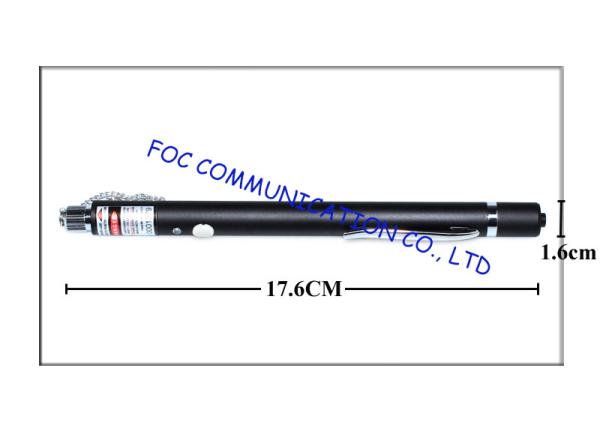

Dimension

176*16mm

Weight

100g (without battery)

Standard Packages – Pen-type Visual Fault Locator

Model

Includes

VFL-650-2S

Main unit, User Manual

VFL650-5S Visual Fault Locator Fiber Optic Test Equipment RoHS Compliant

Fiber Optic Visual Fault Locator, Optical Fiber Visual Fault Locator, Handheld Fiber Visual Fault Locator, Bench-top Visual Fault Locator
