144 Core ODF Optical Distribution Frame
144 Core ODF Optical Distribution Frame
144 Core ODF Optical Distribution Frame
144 Core ODF Optical Distribution Frame
144 Core ODF Optical Distribution Frame
144 Core ODF Optical Distribution Frame
144 Core ODF Optical Distribution Frame
144 Core ODF Optical Distribution Frame
144 Core ODF Optical Distribution Frame
144 Core ODF Optical Distribution Frame
Specifications
Brand Name :
CY COM
Model Number :
CY-ODF-96 144
Certification :
ISO9001,ROHS,TLC,
Place of Origin :
China
MOQ :
20PCS
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
20K/Month
Delivery Time :
5-10 days
Packaging Details :
Wooden Frame
Product name :
96 144 Ports Fiber Optic Patch Panel
Type :
Full Load
Specification :
Standard 19" Rack
Application :
Telecommunication
Material :
Plastic parts ABS, box cold rolled sheet
Application range :
Building, office and wireless base station
Description

Odf 96 144 Core FTTH Rack Mount Full Load 96 144 Port Fiber Optic Terminal Box ODF

Description:
An optical distribution frame (ODF) is a frame used to provide cable interconnections between communication facilities, which can integrate fibre splicing, fibre termination, fibre optic adapters & connectors and cable connections together in a single unit. It can also work as a protective device to protect fibre optic connections from damage.

Features:
1) Standard size, light weight and reasonable structure

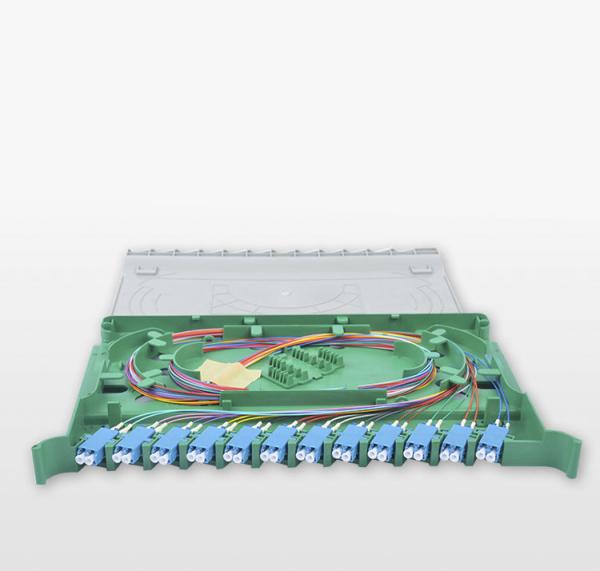

2) Splice tray inside changeable
3) Can be used in 19'', 23'' standard distribution frame
4) Suitable for ribbon and single fiber
5) Various panel plate to fit different adapter interface
6) Front mark on the plate is easy for identification and operation
7) 24C, 36C, 48C, 72C 96C optional, with or without fiber optic pigtails and adapters
8) Easy for management and operation

Application:
1) Telecommunications subscriber loop
2) Fiber to the home (FTTH)
3) LAN/WAN
4) CATV

We support fiber capacity 12/24/48/72/96/144 cores
Fiber Port FC, SC, ST and LC
Number of ODF disks 12 for 1, 24 for 2, 48 for 4, 72 for 6, 96 for 8, and 144 for 12
Working temperature -10 °C ~ +40 °C
Storage temperature -25 ° C ~ +55 ° C
Relative humidity ≤ 85% (+30 ° C)
Atmospheric pressure 70Kpa~106Kpa
Nominal operating wavelength 850nm, 1310nm, 1550nm
Insertion loss ≤ 0.5dB
Return loss PC ≥ 40dB, UPC ≥ 50dB, APC ≥ 60dB
Electrical strength ≥3KV(DC)/1min without breakdown
Insulation resistance ≥1000MΩ/500V (DC)
Life ≥1000 times
Application range Small and medium-sized wiring system for fiber to the cell, fiber to the building, remote module office and wireless base station

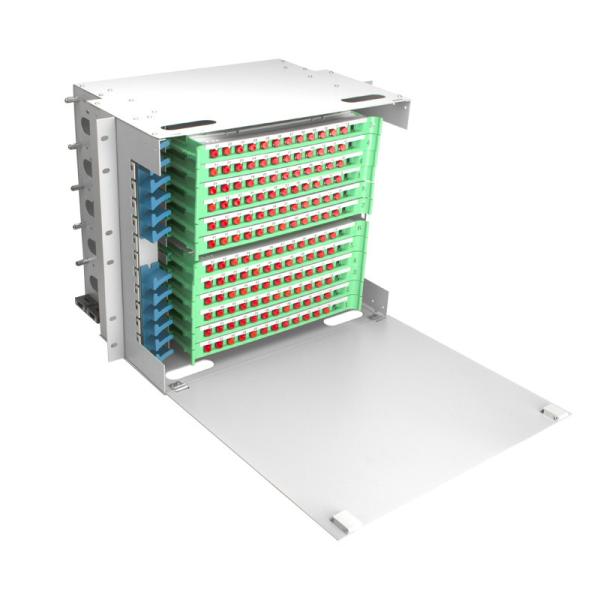

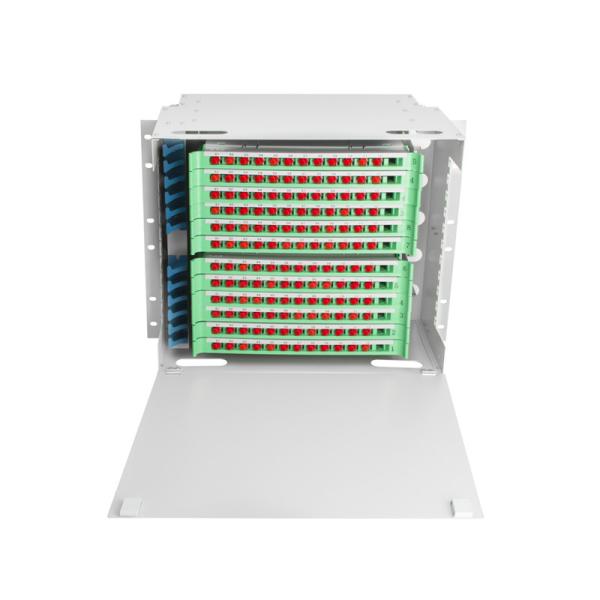

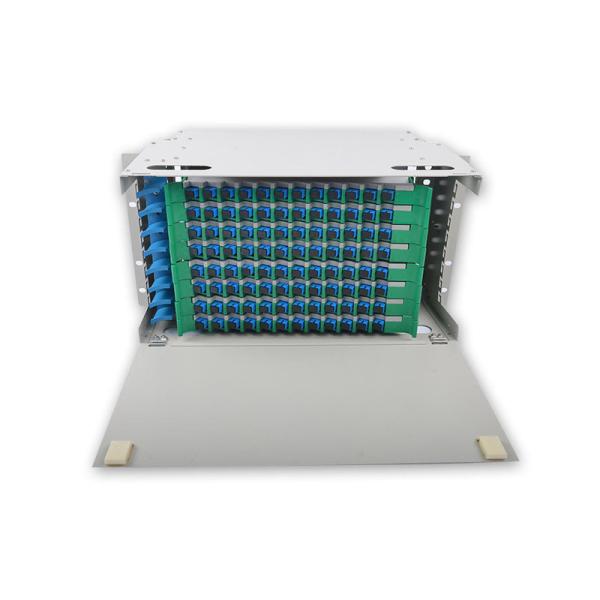

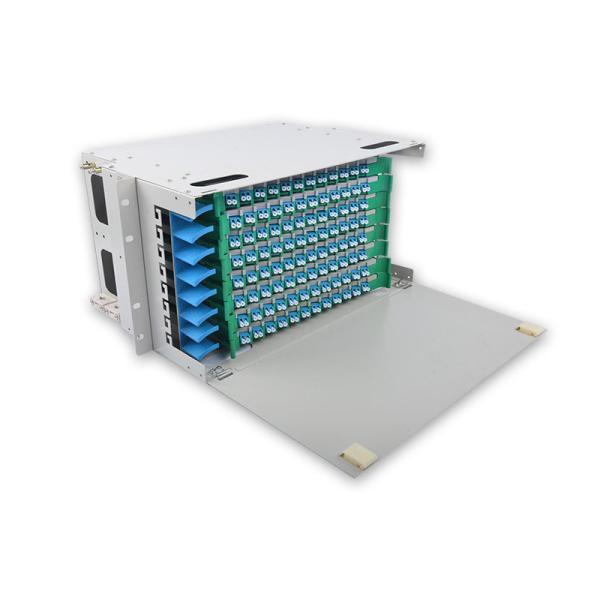

Product show

144 Core ODF Optical Distribution Frame144 Core ODF Optical Distribution Frame

144 Core ODF Optical Distribution Frame144 Core ODF Optical Distribution Frame144 Core ODF Optical Distribution Frame

144 Core ODF Optical Distribution Frame

144 Core ODF Optical Distribution Frame
