Specifications
Brand Name :
Corning /CY COM
Model Number :
GJYXCH / GJYXFCH
Certification :
ISO9001/CE/ROHS
Place of Origin :
Shenzhen,China
MOQ :
1000M
Payment Terms :
T/T, Western Union
Supply Ability :
200KM Per week
Delivery Time :
3-7days
Packaging Details :
Wooden Reel
Fiber type :
OS1 / OS2 / OM1 / OM2 / OM3 / OM4
Jacket Material :
PE
Fiber quality :
1-2 / 4-6 / 8-24
Jacket Color :
Black/Customized
Cable diameter :
2.0x5.0/ 2.0x5.0 /3.0x9.0
Package :
Wooden reel ,3KM/reel
Application :
FTTH
Description

FTTH HOME CABLING SYSTEM GJYXCH GJYXFCH Fiber optic Drop Cable With steel wire

Description:

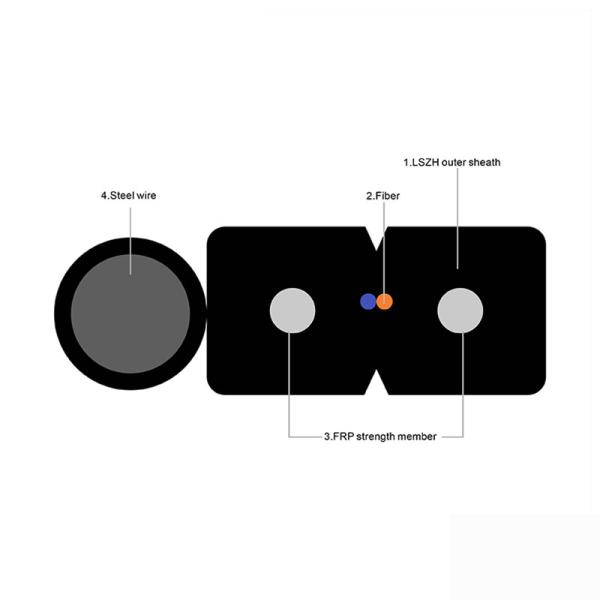

FTTH fiber optic cable is Fiber to Home, which used for linking the equipment and components in the fiber optic network. The fibers is position between two parallel FRP / steel wire. Then it is self-supported by diameter 1.0mm steel wire. Last this cable is completed with black or white LSZH sheath.

Features:

1. Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property.
2. Two parallel FRP/Steel wires strength members ensure good performance of crush resistance to protect the fiber.
3. Single steel wire or messengers as the additional strength member ensures good performance of tensile strength.
4. Simple structure, light weight and high practicability.
5. Novel flute design, easily strip and splice, simplify the installation and maintenance.
6. Low smoke, zero halogen and flame retardant sheath.

Application:

1. Outdoor aerial application
2. Used in the FTTH projects
3. High speed optical routes in building
4. High performance optical network operation

Technical Data

Part Number
Self-supportiing Drop Cable GJYXCH
Fiber Count
4 core (1 core, 4 core also)
Strength Member
One self-supporting 1.0mm steel wire and Two parallel 0.45mm steel wire
Cable Dimension (WxH approx.)
(2.0±0.2)x(5.0±0.2)mm
Out Jacket
LSZH
Out Jacket color
black or white
Application
FTTH cable (Fiber to the home), used indoor, Access network

Items
Unit
G.657A1 Specification
Mode Field Diameter
1310nm
μm
9.0±0.4
1550nm
μm
10.1±0.5
Cladding Diameter
μm
124.8±0.7
Cladding Non-Circularity
%
≤0.7
Core-Cladding Concentricity Error
μm
≤0.5
Coating Diameter
μm
245±5
Coating Non-Circularity
%
≤6.0
Cladding-Coating Concentricity Error
μm
≤12.0
Cable Cutoff Wavelength
nm
λcc≤1260
Attenuation (max.)
1310nm
dB/km
≤0.35
1550nm
dB/km
≤0.21
Macro-Bending Loss
1turn×10mm radius@1550nm
dB
≤0.75
1turn×10mm radius@1550nm
dB
≤1.5

Performance

NO.
Item
Requirement
1
Allowable Tensile Strength
Short Term
600N
Long Term
300N
2
Allowable Crush Resistance
Long Term
2200 (N/100mm)
Long Term
1000 (N/100mm)
3
Minimum Static Bend Radius
10 times
4
Minimum Dynamic Bend Radius
20 times
5
Operation Temperature
40℃~+70℃
6
Nominal Cable
Diameter
(2.0±0.2)x(3.0±0.2)mm
Weight
21.5kg/km
7
Fiber Color Code
01- Blue, 02- Orange, 03- Green, 04- Brown
