Specifications
Brand Name :
CY COM
Certification :
ISO9001:2015 ;ROSH
Place of Origin :
Shenzhen China
MOQ :
20pcs
Payment Terms :
Western Union, T/T
Supply Ability :
2K/Month
Delivery Time :
4-8 days
Packaging Details :
Carton and Wooden
Splitter type :
1x2 /1x4 / 1x8 Splitter
Apply port :
SC/FC/LC/ST
Capacity :
14PCS Spliiter Patch Panel
Height :
3U
Material :
Aluminum/Cold-roll steel
Color :
Black / Gray / White
Description

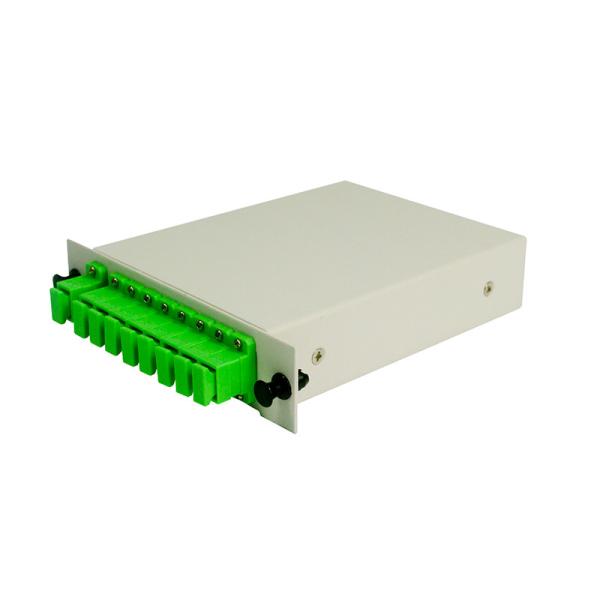

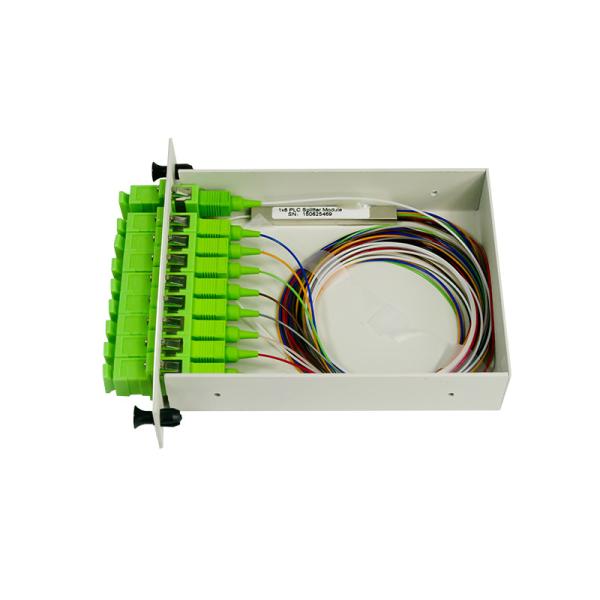

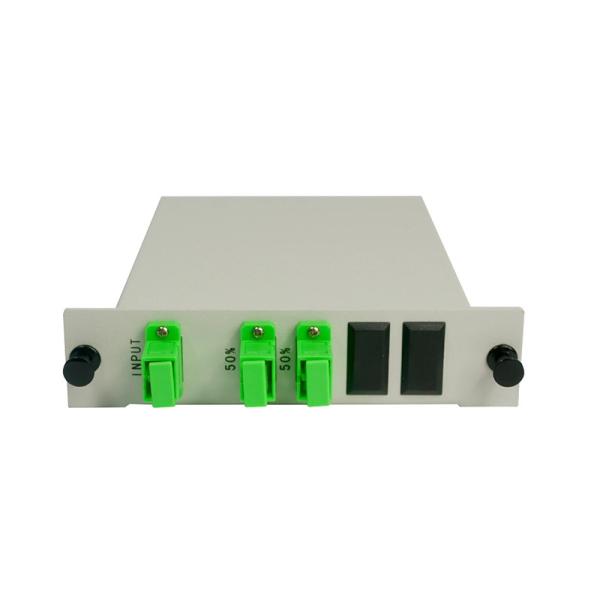

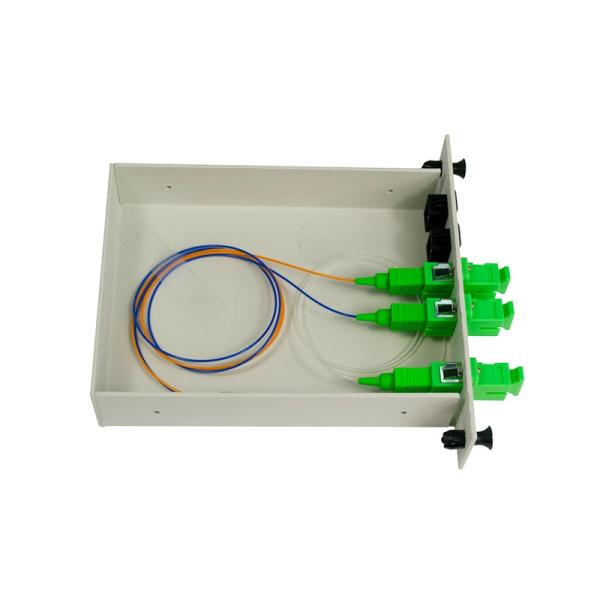

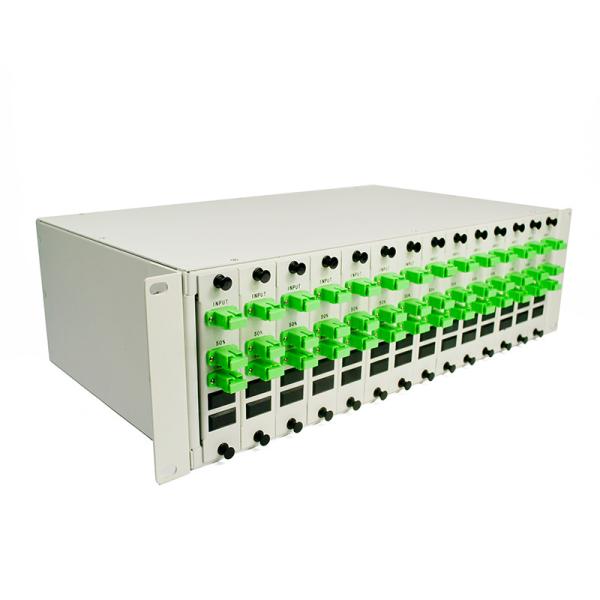

3U 19" Fiber Optical 1x2 1x4 1x8 LGX PLC Splitter Patch Panel /Rack Mount Fiber optic Chassis

Description:

Planar waveguide light optical distributor (PLC Splitter), is a kind of planar waveguide integrated optical device, it can be 1260nm ~ 1650nm such a wide range of wavelengths of light power reservation in realization, the distribution of wavelength range covers EPON technology used1310nm, 1490nm and 1550nm three wavelengths. Especially suitable for EPON Ethernet passive optical network access technology FTTP fiber network system, broadband passive optical distributor (POS) use.

Application:

FTTx Systems
Digital, hybrid and AM-Video systems
LAN,WAN and Metro Networks
CATV systems
Other applications in fiber optic systems

Features:

Low Insertion loss and Low PDL
Uniform power splitting
High reliability
Excellent environmental stability
Compact size and various package

Specification:

Parameter/Type
Nx2(N=1or2)
Nx4(N=1or2)
Nx8(N=1or2)
Nx16(N=1or2)
Nx32(N=1or2)
Nx64(N=1or2)
Fiber
9/125 um SMF-28e or customer appoint
Operating Wavelength(nm)
1260~1650(nm)
Insertion Loss
≤3.9dB
≤7.1dB
≤10.3dB
≤13.3dB
≤16.3dB
≤19.8dB
Loss Uniformity(dB)
≤0.6dB
≤0.6dB
≤0.8dB
≤1.2dB
≤1.5dB
≤2.0dB
Polariation Dependent Loss
≤0.15dB
≤0.15dB
≤0.2dB
≤0.2dB
≤0.2dB
≤0.3dB
Return Loss
UPC≥50dB APC≥60dB
Directivity
≥55dB
Working Temperature(℃)
-40°C to +85°C

PLC splitter with SC APC connector

PLC Rack Mount Patch Panels

LGX PLC splitter with SC APC connector

PLC Rack Mount Patch Panels
