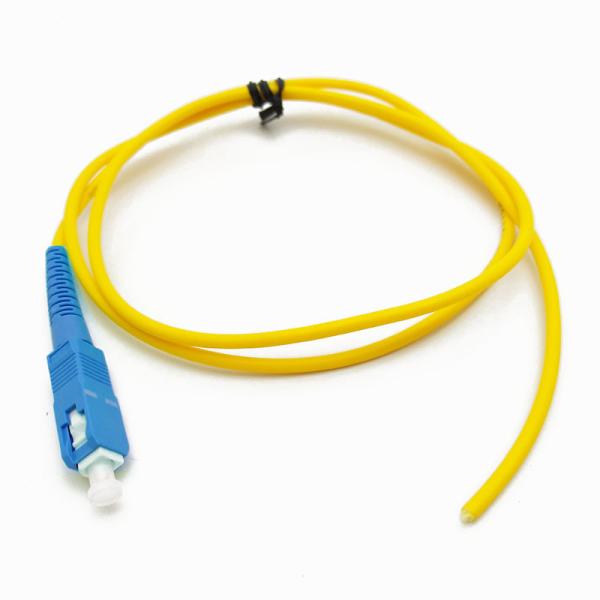

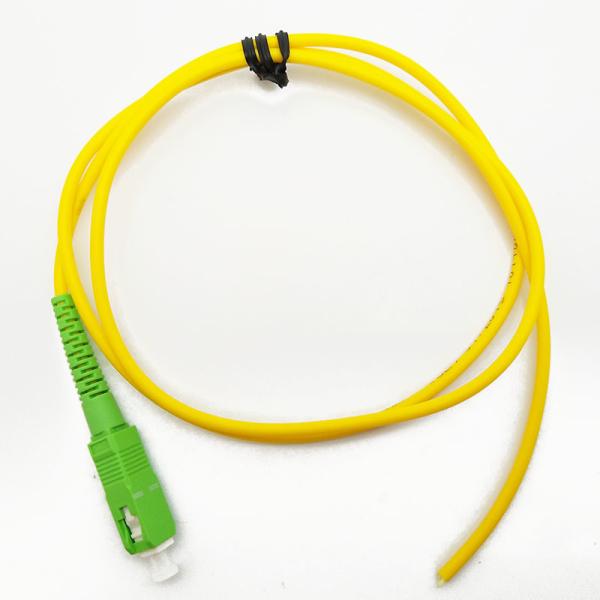

1.5M Singlemode SC/APC UPC 2.0mm Simplex Fiber Optic Pigtail
1.5M Singlemode SC/APC UPC 2.0mm Simplex Fiber Optic Pigtail
1.5M Singlemode SC/APC UPC 2.0mm Simplex Fiber Optic Pigtail
1.5M Singlemode SC/APC UPC 2.0mm Simplex Fiber Optic Pigtail
Specifications
Brand Name :
CY COM
Model Number :
SC LC FC
Certification :
RoHS,ISO9001
Place of Origin :
Shenzhen China
MOQ :
10PCS
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
30000pcs per day
Delivery Time :
3-5 working days
Packaging Details :
PE bag or plastic box and Carton box
Length :
1m or customized
Cable color :
Colors
Connector :
SC,FC,LC
Ferrule End-face :
UPC
Cable diameter :
0.9mm/2.0mm/3.0mm
Return loss :
>50dB
Fiber Count: :
4/6/8/12 Fibers
Description

1.5M Singlemode SC/APC UPC 2.0mm Simplex Fiber Optic Pigtail

2.0mm 3.0mm Simplex Fiber Optic Pigtail 1.5M SC Pigtail Singlemode Fiber SC/APC UPC Pigtail

Description:
Fiber Optic Pigtail is important of optical network.they have same or different connectors which are installed on the end of fiber optic cable. The Fiber Optic Patch Cord series comes with a comprehensive collection of lengths and connectors to fulfill your demand for the deployment.
Features:
1. SC, LC, FC, MU, ST, MT-RJ, E2000 connector available;
2. Superior qualified standard PC, APC, UPC, SPC polishing;
3. φ0.9mm, φ2.0mm, φ3.0mm cable optional;
4. Single mode (9125) or multi mode (50/125 or 62.5/125) fiber available;
5. Available in fiber bunch, ribbon fan-out, pigtail available;
6. Simplex and duplex connector available;
7. Low IL and High RL;
8. Good exchange ability and good durability;
8. Customized specifications are welcomed.
Application:
Telecommunication
Computer networks
CATV networks Active device termination
Instrumentation

Performance Index

Item SM(Single Mode) MM(Multimode)
Fiber Cable Type G652D/G655/G657A1/G657A2 OM1 OM2/OM3/OM4
Fiber Diameter (um) 9/125 62.5/125 50/125
Cable OD (mm) 0.9/1.6/1.8/2.0/2.4/3.0
Endface Type PC UPC APC UPC UPC
Typical Insertion Loss (dB) <0.2 <0.15 <0.2 <0.1 <0.1
Return Loss (dB) >45 >50 >60 /
Insert-pull Test (dB) <0.2 <0.3 <0.15
Interchangeability (dB) <0.1 <0.15 <0.1
Anti-tensile Force (N) >70
Temperature Range (℃) -40~+80

1.5M Singlemode SC/APC UPC 2.0mm Simplex Fiber Optic Pigtail

1.5M Singlemode SC/APC UPC 2.0mm Simplex Fiber Optic Pigtail
