144 Core LC Duplex MPO MTP Chassis
144 Core LC Duplex MPO MTP Chassis
144 Core LC Duplex MPO MTP Chassis
144 Core LC Duplex MPO MTP Chassis
144 Core LC Duplex MPO MTP Chassis
144 Core LC Duplex MPO MTP Chassis
144 Core LC Duplex MPO MTP Chassis
144 Core LC Duplex MPO MTP Chassis
144 Core LC Duplex MPO MTP Chassis
144 Core LC Duplex MPO MTP Chassis
Specifications
Brand Name :
CY COM
Certification :
ISO9001:2015 ;ROSH
Place of Origin :
Shenzhen China
MOQ :
20pcs
Payment Terms :
Western Union, T/T
Supply Ability :
2K/Month
Delivery Time :
5-8 days
Packaging Details :
Carton and Wooden
Fiber qty :
144core
Patch penal :
18 x LC Duplex x 4 part
Height :
1U
Material :
Cold Rolled Steel
Color :
Black
Application :
Network, Telecommunications
Adapter Type :
LC Duplex / SC Simplex
Fiber type :
Singlemode / Mutilmode
Description

19'' 1U MPO/MTP-LC 24F Optical Cassettes 48,72,96,144 Core MPO Fiber Optic Patch Panel

Description

This Big capacity MPO Module is an MPO pre-terminated ultra-high-density wiring box, 19-inch, 1U height up to 144 cores, and can be used in high-density wiring applications such as computer centers, computer rooms, and databases. The front and rear removable top cover, pull-out double guide, detachable front bezel, ABS lightweight module box and other technical applications make this Module easy to use in high-density scenes whether it is in the cable or cable. 144 Module has a total of E-layer trays, each with independent aluminum guide rails, and the sliding distance is 110mm. Four MPO module boxes are installed on each tray, and each module box is installed with 6 DLCs and 12 cores. Each module box has a separate ABS rail for easy sliding installation without restrictions.
Features
Design for MPO/MTP SYSTEM, for quickly network deploy and quick-fix solution
• High-density and small design
• 12 and 24 fiber versions – 144 LC (Duplex) / SC (Simplex) optical parts
• Available Multimode (62.5/125, Standard 50/125 and OM3,OM4) and Single mode(OS1/2) fiber.
• Factory-terminated and -tested cable and apparatus for instant field connections with guaranteed quality and performance
• Metallic shell with high strength protect the inner fibers effectively
• Supports easy reconfiguration for moves, adds, and changes
• Available for the installation of LC/SC adapter
Application

Data center infrastructure

Storage area network

Emerging 40 & 100Gps Protocols

Parallel optics

Enterprise network cabling systerm

Environment

Execution standard: YD/T 778 optical distribution frame
Operating temperature: -5 ° C ~ +40 ° C; storage temperature: -25 ° C ~ +55 ° C
Salt spray experiment: 72 hours
Relative humidity: ≤95% (at +40 °C)
Atmospheric pressure: 76-106kpa
Withstand voltage level: ≤3000V (DC), 1 min without breakdown, no arcing insulation resistance: ≥1000M9/500V (DC)
Insertion loss: UPC≤0.2dB; APC≤0.3dB
Return loss: UPC≥50dB; APC≥60dB
Insertion durability: ≥1000 times
Adhesion: ISO rating: Level 1;
ASTM rating: 4B.

Specification:

Performance Level
Standard
Elite
Connector
Mode
Endface
IL(max) (dB)
RL(min) (dB)
IL(max) (dB)
RL(min) (dB)
MPO/MTP
SM
12F/APC
≤0.70
≥60
≤0.35
≥60
24F/APC
≤0.75
≥60
≤0.35
≥60
48F/APC
≤0.75
≥60
MM
12F/PC
≤0.50
≥20
≤0.35
≥20
24F/PC
≤0.50
≥20
≤0.35
≥20
48F/PC
≤0.50
≥20
LC/SC/FC/ST
SM
≤0.30
≥60
≤0.10
≥60
UPC
≤0.20
≥50
≤0.10
≥50
MM
PC
≤0.20
≥30
≤0.10
≥30

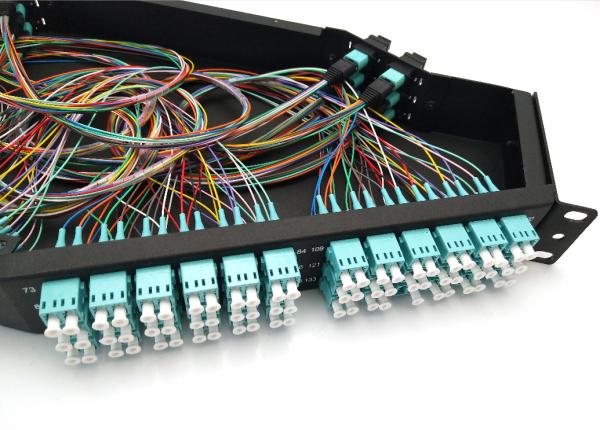

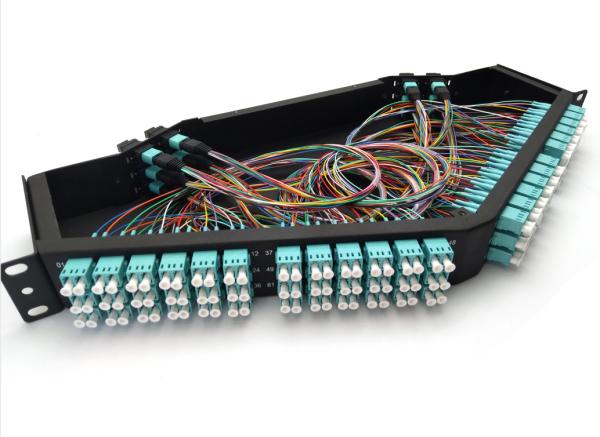

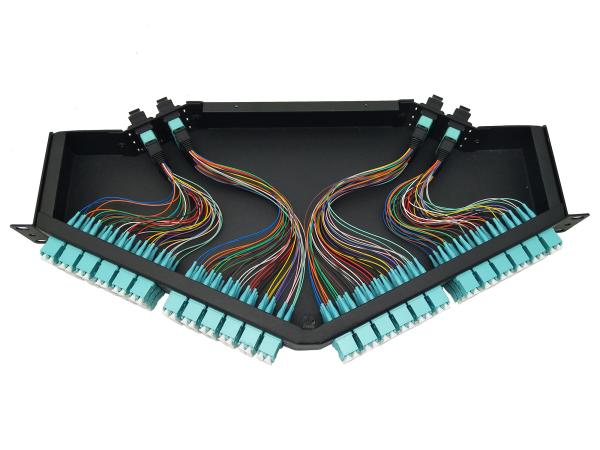

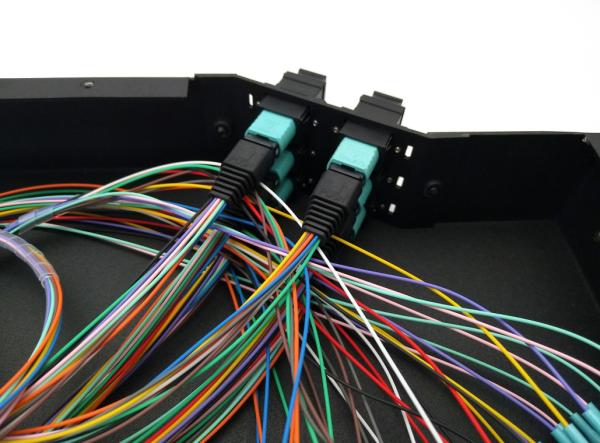

Product Show:

144 Core LC Duplex MPO MTP Chassis144 Core LC Duplex MPO MTP Chassis144 Core LC Duplex MPO MTP Chassis
