MTP Breakout Cable OM4 OFNP Fire Safety-Rated with 0.35dB Low IL for High-Speed Data Center Links
MTP Breakout Cable OM4 OFNP Fire Safety-Rated with 0.35dB Low IL for High-Speed Data Center Links
MTP Breakout Cable OM4 OFNP Fire Safety-Rated with 0.35dB Low IL for High-Speed Data Center Links
MTP Breakout Cable OM4 OFNP Fire Safety-Rated with 0.35dB Low IL for High-Speed Data Center Links
MTP Breakout Cable OM4 OFNP Fire Safety-Rated with 0.35dB Low IL for High-Speed Data Center Links
MTP Breakout Cable OM4 OFNP Fire Safety-Rated with 0.35dB Low IL for High-Speed Data Center Links
Specifications
Brand Name :
CY COM
Model Number :
MPO/MTP
Certification :
ISO9001:2015 , RoHS
Place of Origin :
Shenzhen , China
MOQ :
20
Payment Terms :
L/C,T/T,Western Union payments for offline orders.
Supply Ability :
1 million connector / month
Delivery Time :
3-15 days
Packaging Details :
PE bag
Product Name :
MPO Fiber Optic Patch Cord
Cable Color :
Yellow / Aqua
Cable Shape :
Round / Ribbon
Connector Type :
Female /Male
Cable Materia :
LSZH / PVC
Polarity :
A/B/C
Description

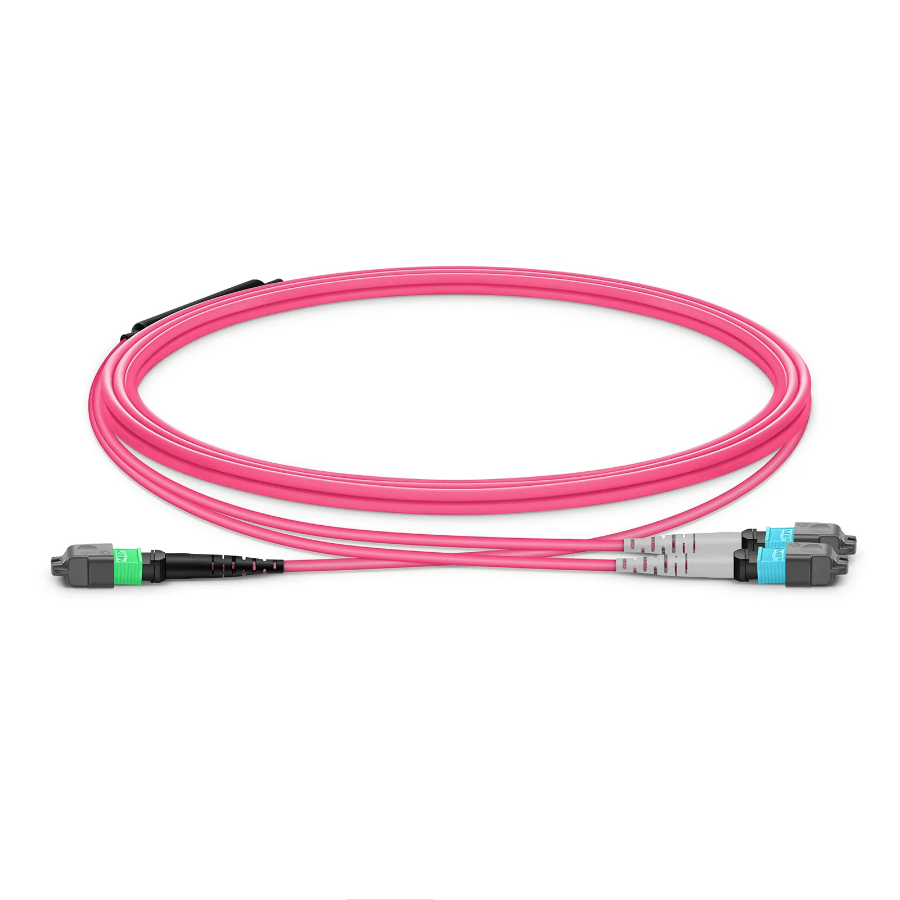

Model MTP Breakout Cable, MTP-16 F APC to 2 x MTP-8 F UPC, 16F, OM4, OFNP, Crossover

The MTP®-16 to 2 x MTP®-8 OM4 cable is a multimode splitter fiber cable, whose MTP®-16 APC end has an 8-degree polished angle to deflect internal optical back reflections from entering the transceiver and distorting the signal quality.

It is designed for linking two 200G optical QSFP56 transceivers transmission to 400G optical QSFP-DD/OSFP transceiver transmission in data center high-speed fiber links. Compared to purchasing and installing separate breakout cassettes, using MTP® breakout cables is more cost-effective and lower-loss.

Key Features
  • US Conec MTP® Connector with Optimal 0.35dB Low IL
    Bend Insensitive Fiber with 7.5mm Min. Bend Radius
    8° APC Endface Minimizes Optical Reflections to Improve Signal Quality
    OFNP Fire Safety-Rated for Use in Plenum Air Spaces
    Designed for Linking QSFP56 and QSFP-DD and OSFP Transceivers
    Convert from 16 to 8 Fibers for 100% Fiber Utilizations
    Compliant to IEC 61754-7, ANSI/TIA-604-5 and ANSI/TIA-568.3-D
Applications
  • Data Center Infrastructure
  • Storage Area Network - Fiber Channel
  • Emerging 40 & 100Gbps Protocols
Technical Specifications
Product Images
Connector A

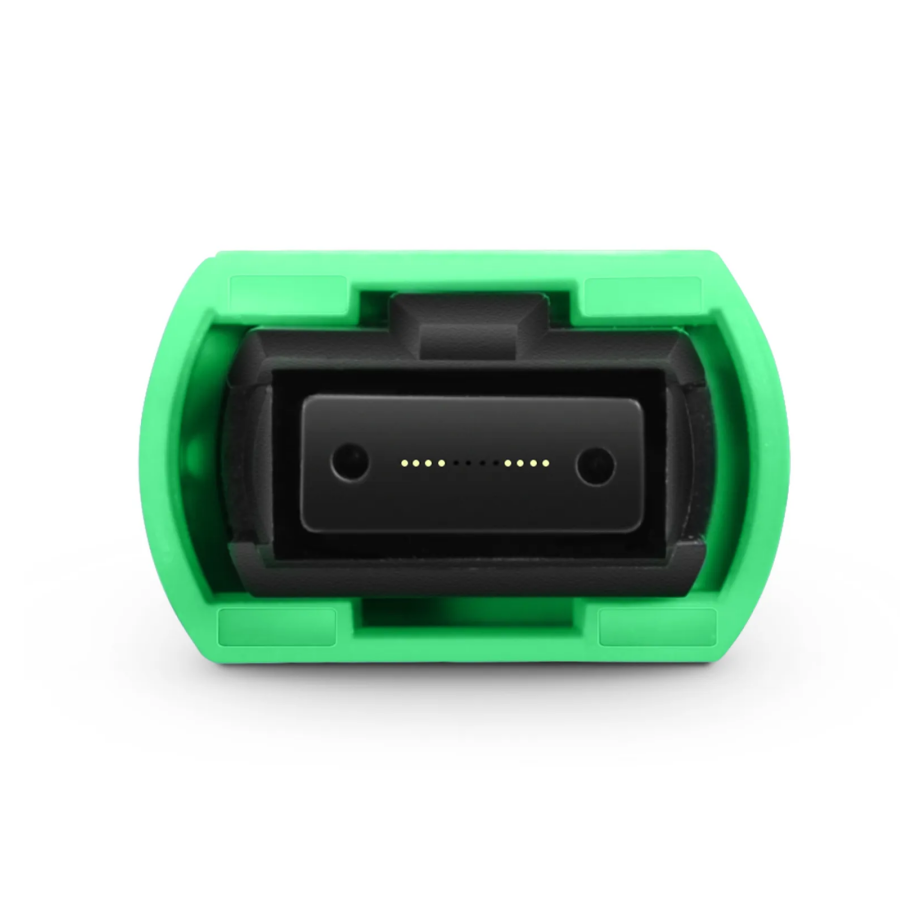

US Conec MTP®-16 Female (Non-Pinned) APC with Offset Key
Connector B

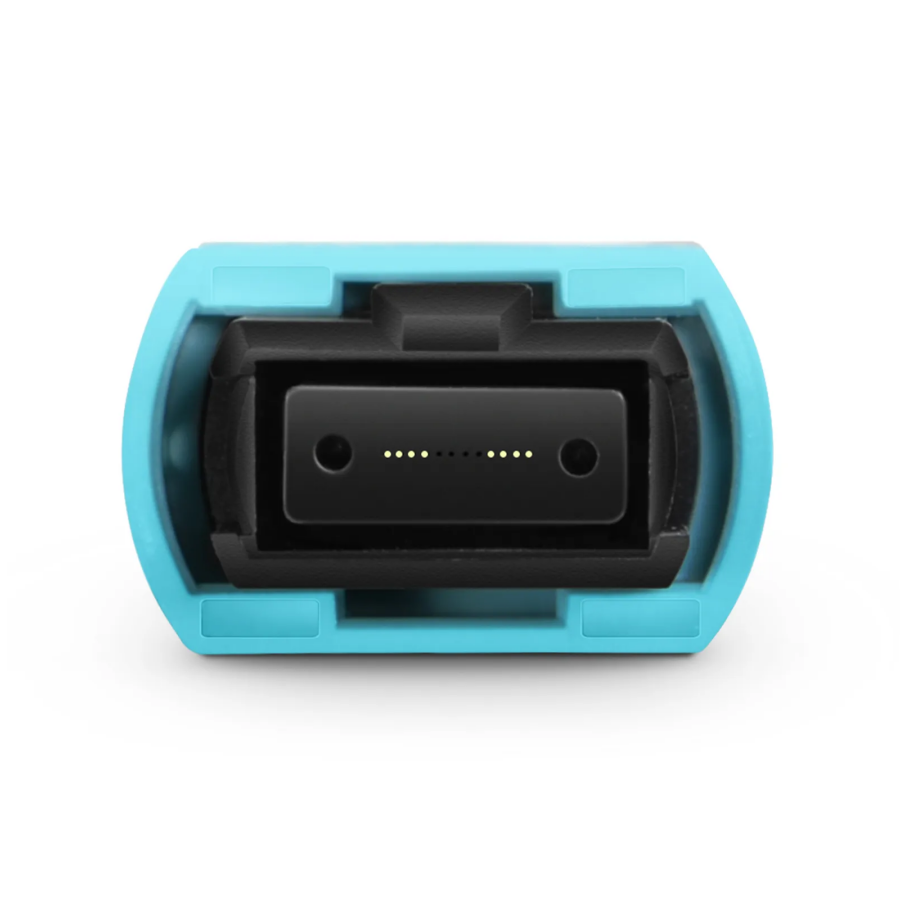

US Conec MTP®-8 Female (Non-Pinned) UPC
Fiber Mode
OM4 50/125μm
Wavelength
850/1300nm
400G Ethernet Distance
50/100m at 850nm
800G Ethernet Distance
50m at 850nm
Glass Fiber
Bend Insensitive Fiber
Polarity
Crossover
Insertion Loss
≤0.35dB (0.15dB Typ.)
Return Loss
≥20dB
Cable Jacket
Plenum (OFNP)
Minimum Bend Radius
7.5mm
Attenuation at 850nm
≤2.3dB/km
Attenuation at 1300nm
≤0.6dB/km
Cable Outside Diameter (OD)
3.0mm
Breakout Length
0.5m
Installation Tensile Load
66N
Tensile Strength
60/120N (Long/Short Term)
Operating Te


mperature
-10 to 60°C (14 to 140℉)
Storage Temperature
-10 to 70°C (14 to 158℉)
