MTP Breakout Cable OM4 50/125μm with 0.35dB Low IL and 8° APC Endface for High-Speed Data Center Links
MTP Breakout Cable OM4 50/125μm with 0.35dB Low IL and 8° APC Endface for High-Speed Data Center Links
MTP Breakout Cable OM4 50/125μm with 0.35dB Low IL and 8° APC Endface for High-Speed Data Center Links
MTP Breakout Cable OM4 50/125μm with 0.35dB Low IL and 8° APC Endface for High-Speed Data Center Links
MTP Breakout Cable OM4 50/125μm with 0.35dB Low IL and 8° APC Endface for High-Speed Data Center Links
MTP Breakout Cable OM4 50/125μm with 0.35dB Low IL and 8° APC Endface for High-Speed Data Center Links
Specifications
Brand Name :
CY COM
Model Number :
MPO/MTP
Certification :
ISO9001:2015 , RoHS
Place of Origin :
Shenzhen , China
MOQ :
20
Payment Terms :
L/C,T/T,Western Union payments for offline orders.
Supply Ability :
1 million connector / month
Delivery Time :
3-15 days
Packaging Details :
PE bag
Product Name :
MPO Fiber Optic Patch Cord
Cable Color :
Yellow / Aqua
Cable Shape :
Round / Ribbon
Connector Type :
Female /Male
Cable Materia :
LSZH / PVC
Polarity :
A/B/C
Description

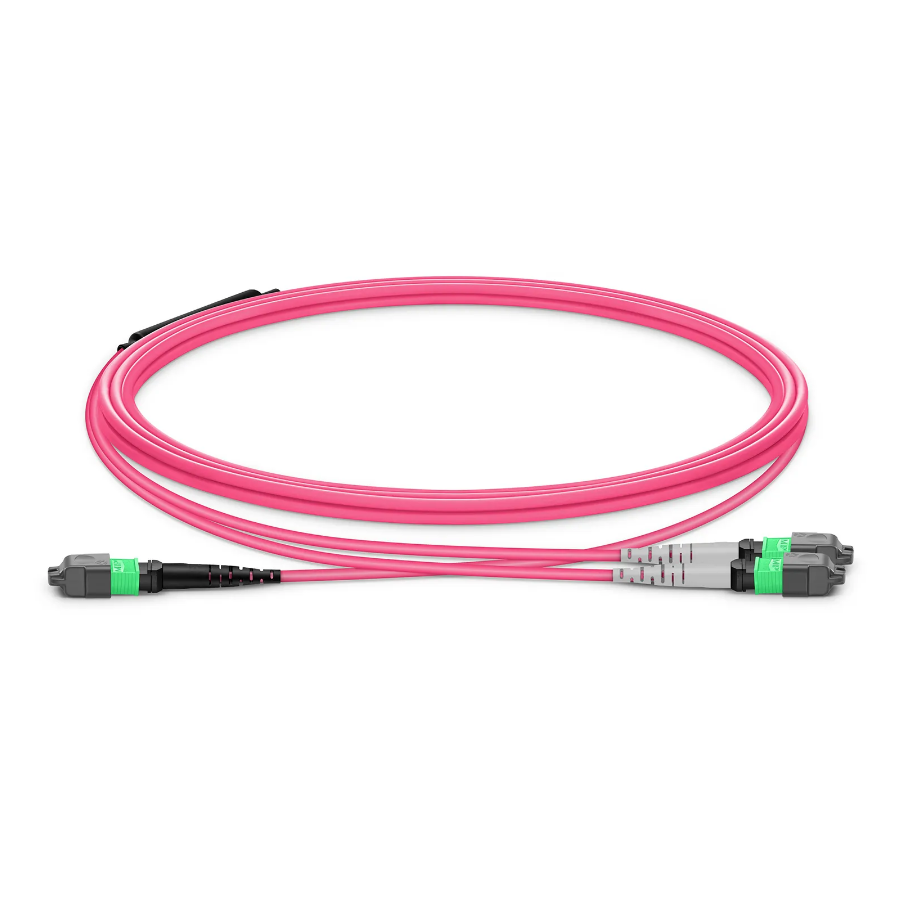

Model MTP Breakout Cable, MTP-16 F APC to 2 x MTP-8 F APC, 16F, OM4, OFNP, Crossover

The MTP®-16 to 2 x MTP®-8 OM4 cable is a multimode splitter fiber cable, whose MTP®-16 APC end has an 8-degree polished angle to deflect internal optical back reflections from entering the transceiver and distorting the signal quality.

It is designed for linking two 400G optical QSFP-DD/OSFP transceivers transmission to 800G optical QSFP-DD transceiver transmission in data center high-speed fiber links. Compared to purchasing and installing separate breakout cassettes, using MTP® breakout cables is more cost-effective and lower-loss.

Key Features
  • US Conec MTP® Connector with Optimal 0.35dB Low IL
    Bend Insensitive Fiber with 7.5mm Min. Bend Radius
    8° APC Endface Minimizes Optical Reflections to Improve Signal Quality
    OFNP Fire Safety-Rated for Use in Plenum Air Spaces
    Designed for Linking 800G QSFP-DD and 400G QSFP-DD/OSFP Transceivers
    Convert from 16 to 8 Fibers for 100% Fiber Utilizations
    Compliant to IEC 61754-7, ANSI/TIA-604-5 and ANSI/TIA-568.3-D
Applications
  • Data Center Infrastructure
  • Storage Area Network - Fiber Channel
  • Emerging 40 & 100Gbps Protocols
Technical Specifications
Connector A

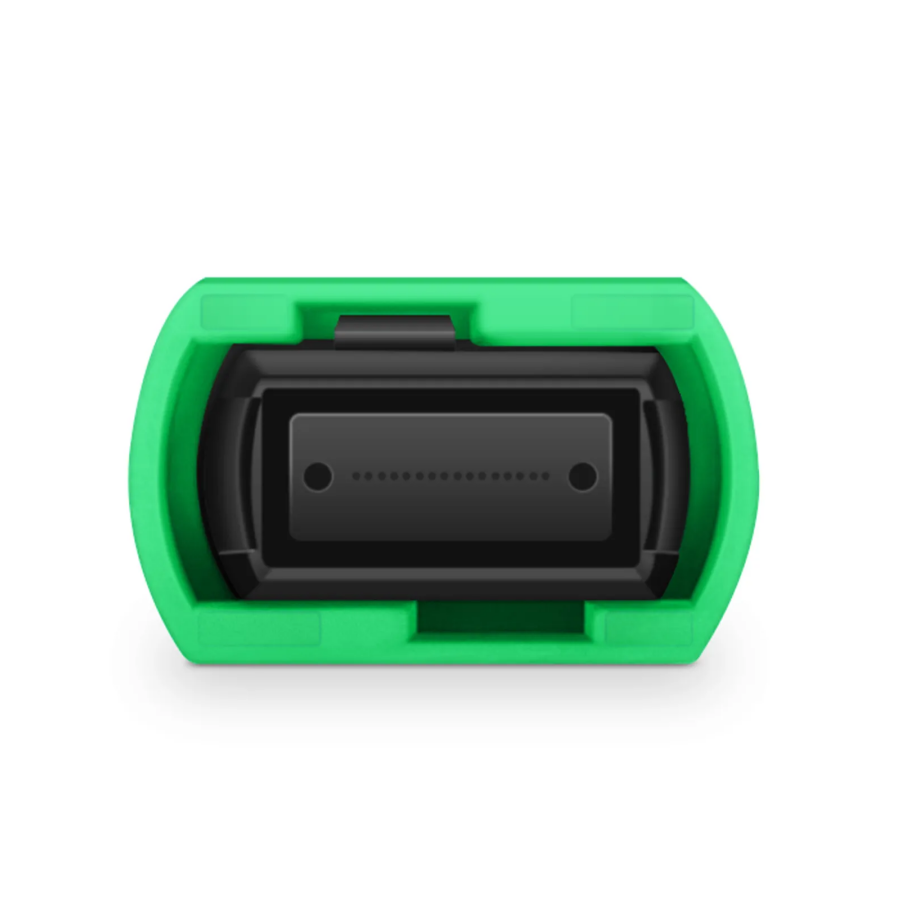

US Conec MTP®-16 Female (Non-Pinned) APC with Offset Key
Connector B

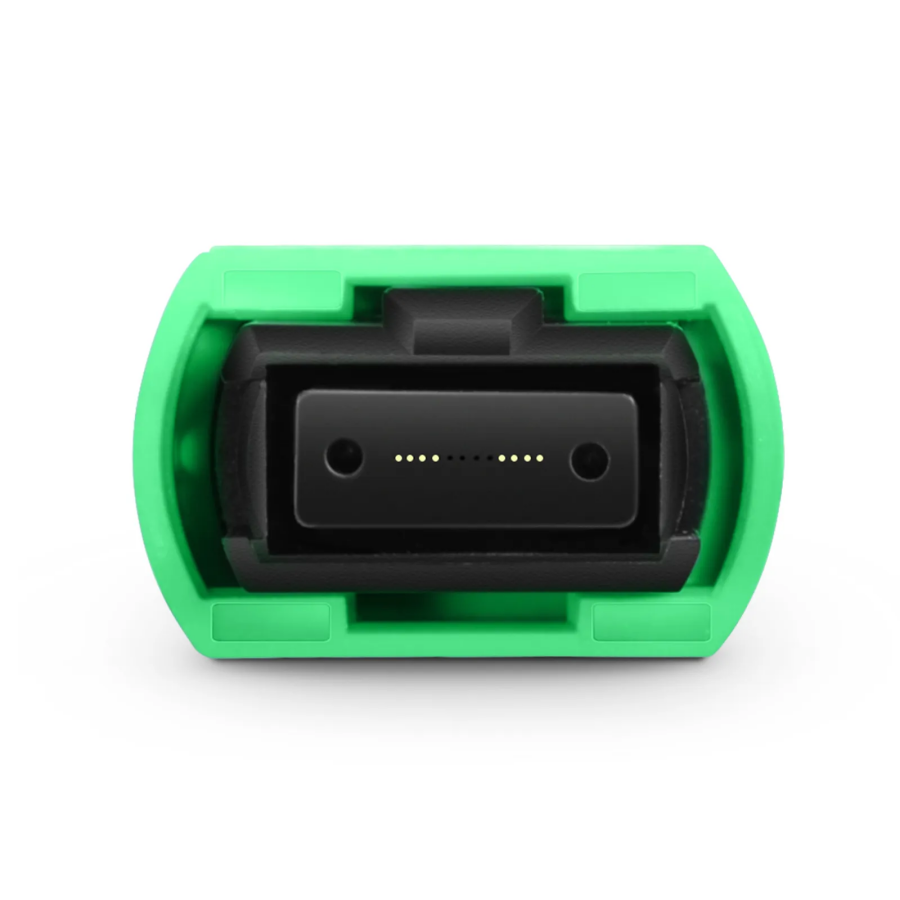

US Conec MTP®-8 Female (Non-Pinned) APC
Fiber Mode
OM4 50/125μm
Wavelength
850/1300nm
400G Ethernet Distance
50/100m at 850nm
800G Ethernet Distance
50m at 850nm
Glass Fiber
Bend Insensitive Fiber
Polarity
Crossover
Insertion Loss
≤0.35dB (0.15dB Typ.)
Return Loss
≥45dB
Cable Jacket
Plenum (OFNP)
Minimum Bend Radius
7.5mm
Attenuation at 850nm
≤2.3dB/km
Attenuation at 1300nm
≤0.6dB/km
Cable Outside Diameter (OD)
3.0mm

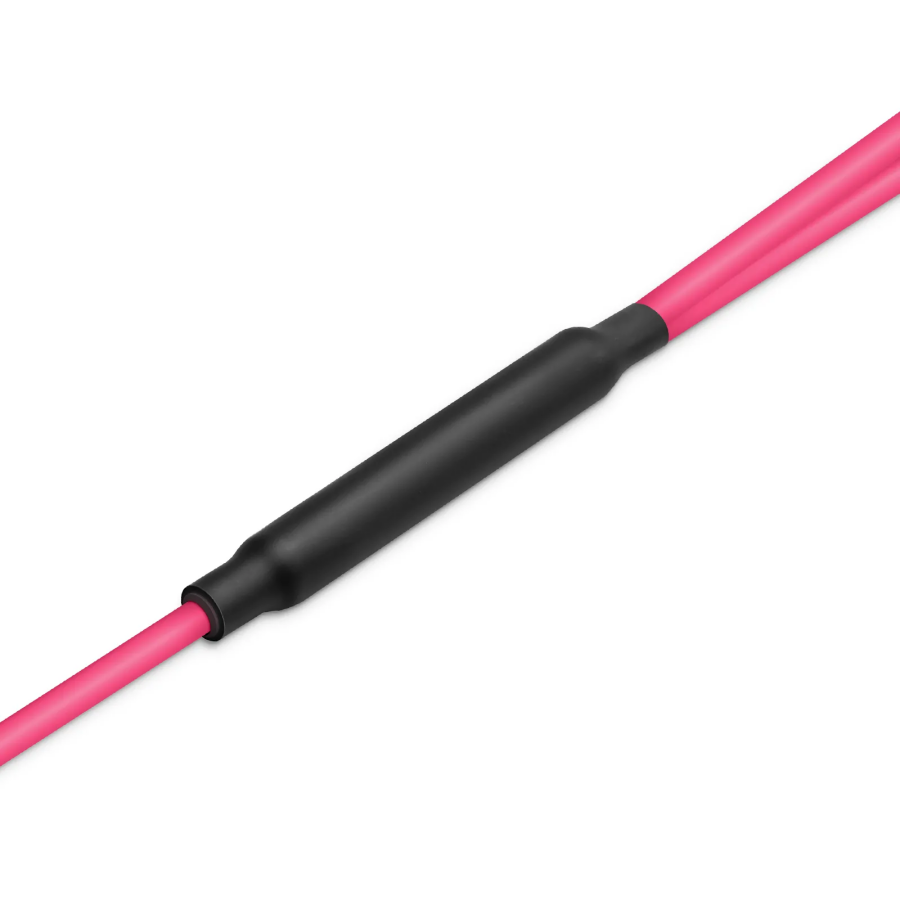

Breakout Length
0.5m
Installation Tensile Load
66N
Tensile Strength
60/120N (Long/Short Term)
Operating Temperature
-10 to 60°C (14 to 140℉)
Storage Temperature
-10 to 70°C (14 to 158℉)
Product Images

MTP Breakout Cable OM4 50/125μm with 0.35dB Low IL and 8° APC Endface for High-Speed Data Center Links

MTP Breakout Cable OM4 50/125μm with 0.35dB Low IL and 8° APC Endface for High-Speed Data Center Links

MTP Breakout Cable OM4 50/125μm with 0.35dB Low IL and 8° APC Endface for High-Speed Data Center Links

MTP Breakout Cable OM4 50/125μm with 0.35dB Low IL and 8° APC Endface for High-Speed Data Center Links
