MTP Breakout Cable with 8° APC Endface, OFNP Fire Safety-Rated, and 0.35dB Low IL for High-Speed Data Links
MTP Breakout Cable with 8° APC Endface, OFNP Fire Safety-Rated, and 0.35dB Low IL for High-Speed Data Links
MTP Breakout Cable with 8° APC Endface, OFNP Fire Safety-Rated, and 0.35dB Low IL for High-Speed Data Links
MTP Breakout Cable with 8° APC Endface, OFNP Fire Safety-Rated, and 0.35dB Low IL for High-Speed Data Links
MTP Breakout Cable with 8° APC Endface, OFNP Fire Safety-Rated, and 0.35dB Low IL for High-Speed Data Links
MTP Breakout Cable with 8° APC Endface, OFNP Fire Safety-Rated, and 0.35dB Low IL for High-Speed Data Links
Specifications
Brand Name :
CY COM
Model Number :
MPO/MTP
Certification :
ISO9001:2015 , RoHS
Place of Origin :
Shenzhen , China
MOQ :
20
Payment Terms :
L/C,T/T,Western Union payments for offline orders.
Supply Ability :
1 million connector / month
Delivery Time :
3-15 days
Packaging Details :
PE bag
Product Name :
MPO Fiber Optic Patch Cord
Cable Color :
Yellow / Aqua
Cable Shape :
Round / Ribbon
Connector Type :
Female /Male
Cable Materia :
LSZH / PVC
Polarity :
A/B/C
Description

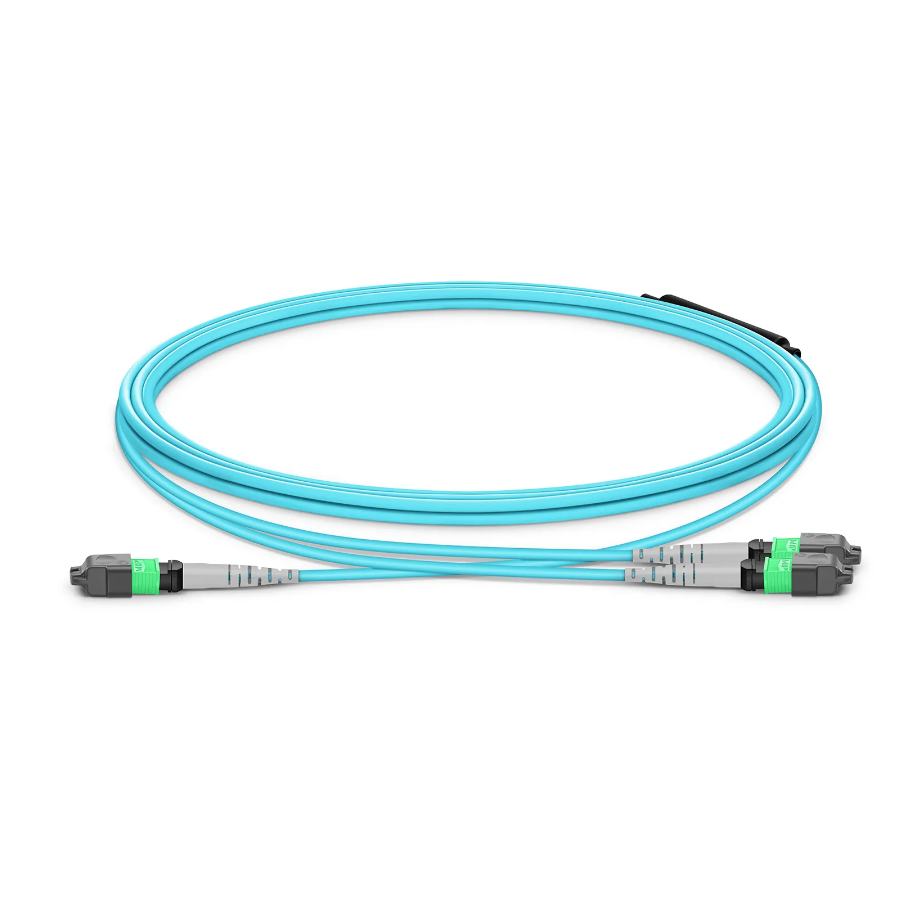

Model MTP Breakout Cable, MTP-12 F APC to 2 x MTP-4 F APC, 8F, OM3, OFNP, Type B
Product Overview

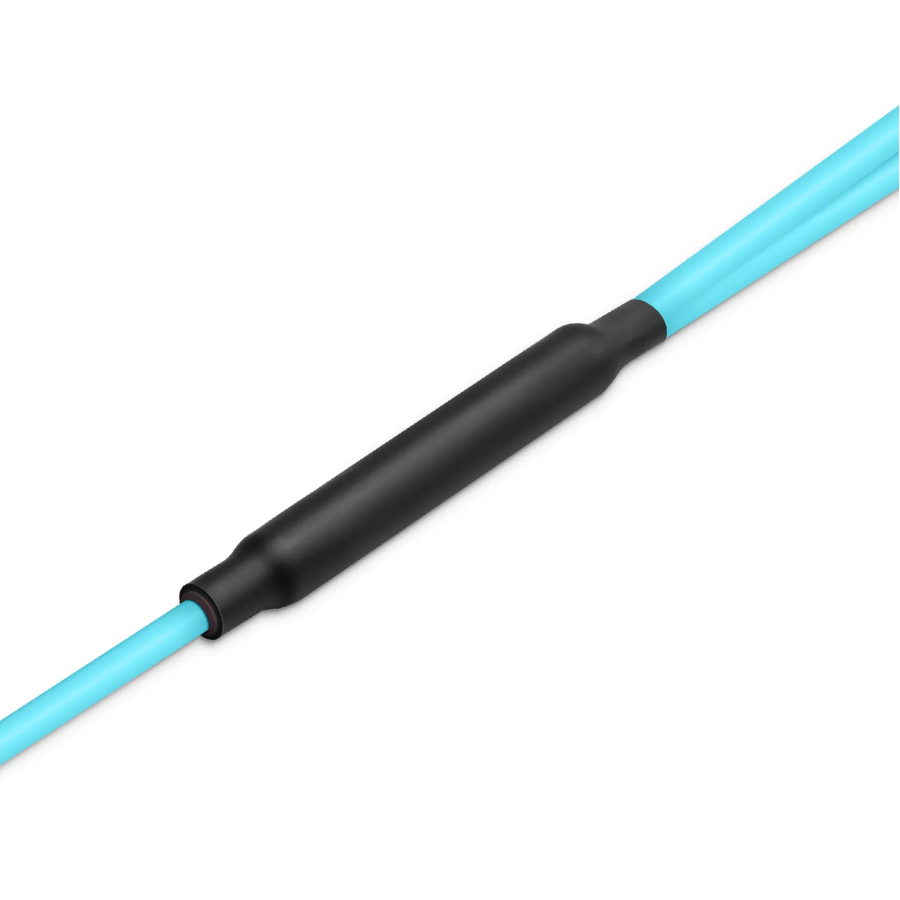

The MTP®-12 to 2 x MTP®-4 APC (Female) OM3 cable is a multimode, 4-channel-to-two 2-channel splitter fiber cable, which uses 8 active fibers to transmit light and 4 inactive fibers as strength members. The APC end has an 8-degree polished angle to deflect internal optical back reflections from entering the transceiver and distorting the signal quality.

Using two MTP®-12 APC to 2 x MTP®-4 APC breakout cables can link an 800G NVIDIA InfiniBand twin-port OSFP transceiver to four 400G NVIDIA InfiniBand OSFP/QSFP112 transceivers in data center high-speed fiber links. And, only two channels are activated when 400Gb/s transceivers are used with the 1:2 breakout cables, creating a 200Gb/s transceiver. Compared to purchasing and installing separate breakout cassettes, using MTP® breakout cables is more cost-effective and lower-loss.

Key Features

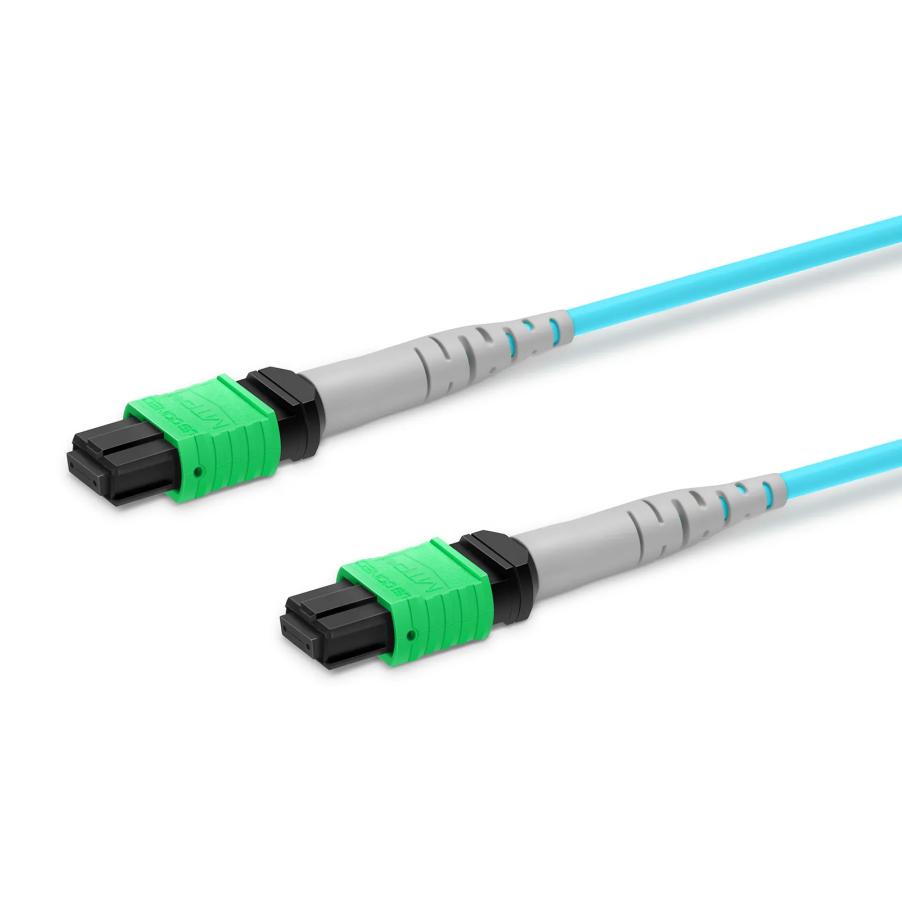

  • US Conec MTP® Connector with Optimal 0.35dB Low IL
    Bend Insensitive Fiber with 7.5mm Min. Bend Radius
    8° APC Endface Minimizes Optical Reflections to Improve Signal Quality
    OFNP Fire Safety-Rated for Use in Plenum Air Spaces
    Designed for Linking Twin-port OSFP and Single-port OSFP and QSFP112 Transceivers
    Convert from 12 to 4 Fibers for 100% Fiber Utilizations
    Support InfiniBand, Ethernet and NVLink Protocols
    Compliant to IEC 61754-7, ANSI/TIA-604-5 and ANSI/TIA-568.3-D
Applications
  • Data Center Infrastructure
  • Storage Area Network - Fiber Channel
  • Emerging 40 & 100Gbps Protocols
Technical Specifications

Connector A
US Conec MTP® Elite Female (Non-Pinned)
Connector B
US Conec MTP® Elite Female (Non-Pinned)
Fiber Mode
OM3 50/125μm
Wavelength
850/1300nm
400G Ethernet Distance
50/100m at 850nm
800G Ethernet Distance
50m at 850nm
Glass Fiber
Bend Insensitive Fiber
Polish Type
APC to APC
Insertion Loss
≤0.35dB (0.15dB Typ.)
Return Loss
≥45dB
Attenuation at 850nm
≤2.3dB/km
Attenuation at 1300nm
≤0.6dB/km
Cable Jacket
Plenum (OFNP)
Minimum Bend Radius
7.5mm
Cable Outside Diameter (OD)
3.0mm
Trunk Length
0.2m
Installation Tensile Load
66N
Tensile Strength
60/120N (Long/Short Term)
Operating Te


mperature
-10 to 60°C (14 to 140℉)
Storage Temperature
-10 to 70°C (14 to 158℉)
