MTP Trunk Cable with 0.35dB Low IL OFNP Fire Safety-Rated and G.657.A1 Bend Insensitive Fiber for High-Density Cabling
MTP Trunk Cable with 0.35dB Low IL OFNP Fire Safety-Rated and G.657.A1 Bend Insensitive Fiber for High-Density Cabling
MTP Trunk Cable with 0.35dB Low IL OFNP Fire Safety-Rated and G.657.A1 Bend Insensitive Fiber for High-Density Cabling
MTP Trunk Cable with 0.35dB Low IL OFNP Fire Safety-Rated and G.657.A1 Bend Insensitive Fiber for High-Density Cabling
MTP Trunk Cable with 0.35dB Low IL OFNP Fire Safety-Rated and G.657.A1 Bend Insensitive Fiber for High-Density Cabling
MTP Trunk Cable with 0.35dB Low IL OFNP Fire Safety-Rated and G.657.A1 Bend Insensitive Fiber for High-Density Cabling
Specifications
Brand Name :
CY COM
Model Number :
MPO/MTP
Certification :
ISO9001:2015 , RoHS
Place of Origin :
Shenzhen , China
MOQ :
20
Payment Terms :
L/C,T/T,Western Union payments for offline orders.
Supply Ability :
1 million connector / month
Delivery Time :
3-15 days
Packaging Details :
PE bag
Product Name :
MPO Fiber Optic Patch Cord
Cable Color :
Yellow / Aqua/purple
Cable Shape :
Round / Ribbon
Connector Type :
Female /Male
Cable Materia :
LSZH / PVC
Polarity :
A/B/C
Description
MTP-12 Trunk Cable, F to F, APC, 48F, OS2, OFNP, 0.35dB, Type B
Product Overview
MTP® trunks are factory pre-terminated and rigorously tested, coming with reliable MTP®-MTP® or MTP®-LC Uniboot connectors. Ultra-low loss MTP® connectors can reduce signal loss during transmission to support long-distance transmissions and multiple connection areas. The robust double-jacket sheath enhances crush resistance, ensuring durability and performance over long-distance runs. These features make MTP® trunks an ideal choice for high-density cabling in data centers, widely used in main, horizontal, and zone distribution areas.
Key Features
  • US Conec MTP® Connector with Optimal 0.35dB Low IL
    G.657.A1 Bend Insensitive Fiber with 10mm Min. Bend Radius
    2.0mm Small-diameter Breakout Saves Space for High-density Cabling
    OFNP Fire Safety-Rated for Use in Plenum Air Spaces
    Color-Coded Connector Boots for Easy Identification
    For Longer Distances in Cabinet-to-Cabinet Applications
    Compliant to IEC 61754-7, ANSI/TIA-604-5 and ANSI/TIA-568.3-D
Applications
  • Data Center Infrastructure
  • Storage Area Network - Fiber Channel
  • Emerging 40 & 100Gbps Protocols
Technical Specifications
Connector A
US Conec MTP® Elite Female (Non-Pinned)
Connector B
US Conec MTP® Elite Female (Non-Pinned)
Fiber Mode
OS2 9/125μm
Wavelength
1310/1550nm
Glass Fiber
G.657.A1
Minimum Bend Radius
10mm
Polish Type
APC to APC
Polarity
Type B
Cable Jacket
Plenum (OFNP)
Cable Structure
Double Jacket
Fiber Count
48 Fibers (Base-12)
Breakout Length
0.5m
Cable Outside Diameter (OD)
8.5-9.0mm
Breakout Outside Diameter (OD)
2.0mm
Insertion Loss
≤0.35dB (0.15dB Typ.)
Return Loss
≥65dB
Attenuation at 1310nm
≤0.35dB/km
Attenuation at 1550nm
≤0.21dB/km
Long-term Tensile Load
200N
Short-term Tensile Load
660N
Operating Temperature
-10 to 60°C (14 to 140°F)
Storage Temperature
-10 to +70°C (14 to 158℉)

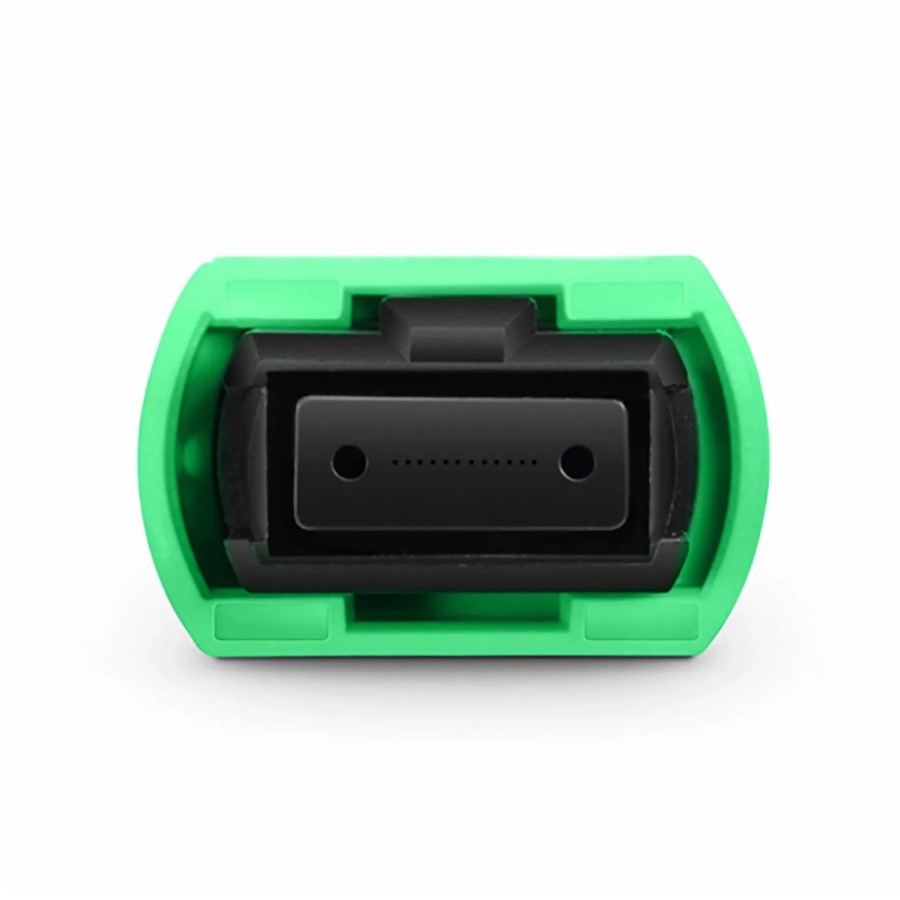

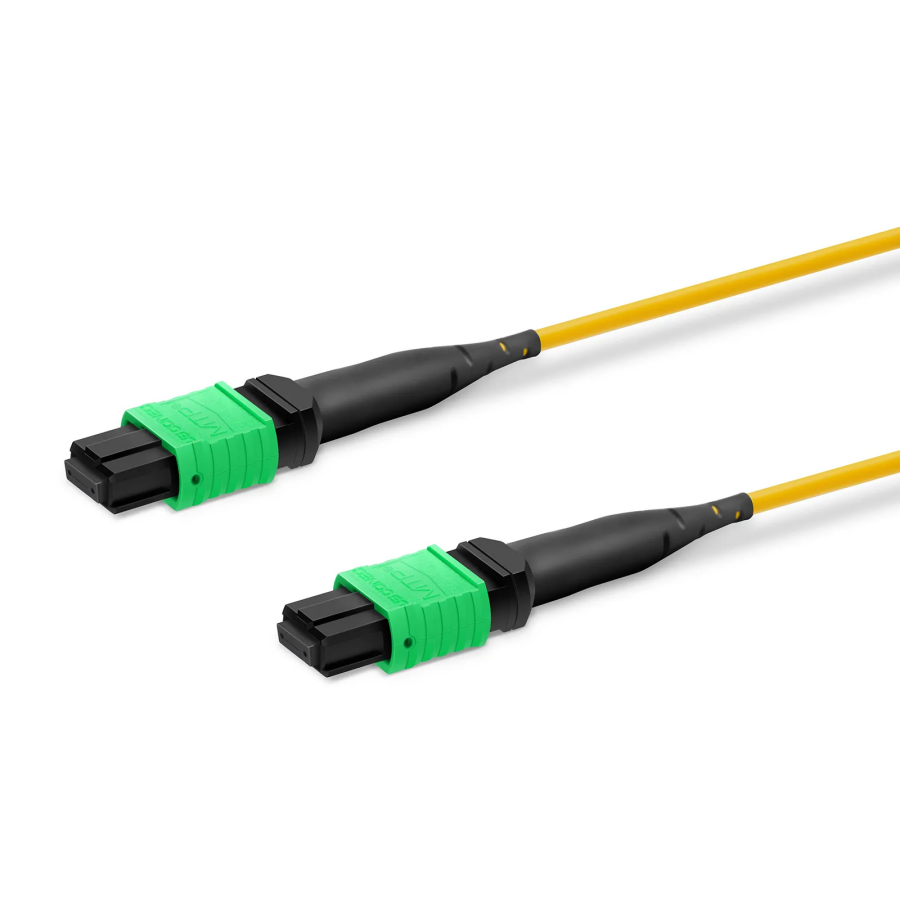

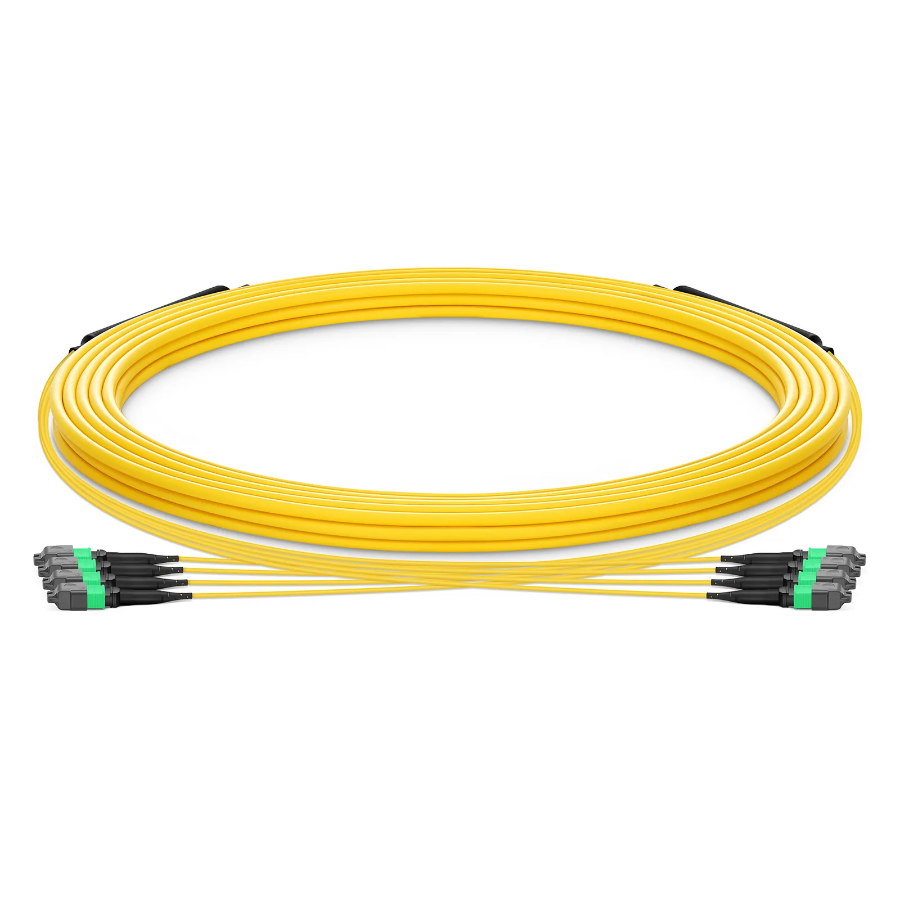

Product Images

MTP Trunk Cable with 0.35dB Low IL OFNP Fire Safety-Rated and G.657.A1 Bend Insensitive Fiber for High-Density Cabling

MTP Trunk Cable with 0.35dB Low IL OFNP Fire Safety-Rated and G.657.A1 Bend Insensitive Fiber for High-Density Cabling

MTP Trunk Cable with 0.35dB Low IL OFNP Fire Safety-Rated and G.657.A1 Bend Insensitive Fiber for High-Density Cabling
