MTP Breakout Cable with 0.35dB Low IL and 8° APC Endface for OFNP Fire Safety-Rated Data Center Links
MTP Breakout Cable with 0.35dB Low IL and 8° APC Endface for OFNP Fire Safety-Rated Data Center Links
MTP Breakout Cable with 0.35dB Low IL and 8° APC Endface for OFNP Fire Safety-Rated Data Center Links
MTP Breakout Cable with 0.35dB Low IL and 8° APC Endface for OFNP Fire Safety-Rated Data Center Links
MTP Breakout Cable with 0.35dB Low IL and 8° APC Endface for OFNP Fire Safety-Rated Data Center Links
MTP Breakout Cable with 0.35dB Low IL and 8° APC Endface for OFNP Fire Safety-Rated Data Center Links
Specifications
Brand Name :
CY COM
Model Number :
MPO/MTP
Certification :
ISO9001:2015 , RoHS
Place of Origin :
Shenzhen , China
MOQ :
20
Payment Terms :
L/C,T/T,Western Union payments for offline orders.
Supply Ability :
1 million connector / month
Delivery Time :
3-15 days
Packaging Details :
PE bag
Product Name :
MPO Fiber Optic Patch Cord
Cable Color :
Yellow / Aqua
Cable Shape :
Round / Ribbon
Connector Type :
Female /Male
Cable Materia :
LSZH / PVC
Polarity :
A/B/C
Description
Model MTP Breakout Cable, MTP-16 F APC to 2 x MTP-8 F APC, 16F, OS2, OFNP, Crossover

The MTP®-16 to 2 x MTP®-8 OS2 cable is a single-mode splitter fiber cable, whose MTP®-16 APC end has an 8-degree polished angle to deflect internal optical back reflections from entering the transceiver and distorting the signal quality.

It is designed for linking two 400G optical QSFP-DD/OSFP transceivers transmission to 800G optical QSFP-DD transceiver transmission in data center high-speed fiber links. Compared to purchasing and installing separate breakout cassettes, using MTP® breakout cables is more cost-effective and lower-loss.

Key Features
  • US Conec MTP® Connector with Optimal 0.35dB Low IL
    G.657.A1 Bend Insensitive Fiber with 10mm Min. Bend Radius
    8° APC Endface Minimizes Optical Reflections to Improve Signal Quality
    OFNP Fire Safety-Rated for Use in Plenum Air Spaces
    Designed for Linking 800G QSFP-DD and 400G QSFP-DD/OSFP Transceivers
    Convert from 16 to 8 Fibers for 100% Fiber Utilizations
    Compliant to IEC 61754-7, ANSI/TIA-604-5 and ANSI/TIA-568.3-D
Applications
  • Data Center Infrastructure
  • Storage Area Network - Fiber Channel
  • Emerging 40 & 100Gbps Protocols
Technical Specifications
Connector A
US Conec MTP®-16 Female (Non-Pinned) APC with Offset Key
Connector B
US Conec MTP®-8 Female (Non-Pinned) APC
Fiber Mode
OS2 9/125μm
Wavelength
1310/1550nm
Glass Fiber
G.657.A1
Polarity
Crossover
Insertion Loss
≤0.35dB (0.15dB Typ.)
Return Loss
≥65dB
Cable Jacket
Plenum (OFNP)
Minimum Bend Radius
10mm
Attenuation at 1310nm
≤0.35dB/km
Attenuation at 1550nm
≤0.21dB/km
Cable Outside Diameter (OD)
3.0mm
Breakout Length
0.5m
Installation Tensile Load
66N
Tensile Strength
60/120N (Long/Short Term)
Operating Temperature
-10 to 60°C (14 to 140℉)
Storage Temperature
-10 to 70°C (14 to 158℉)

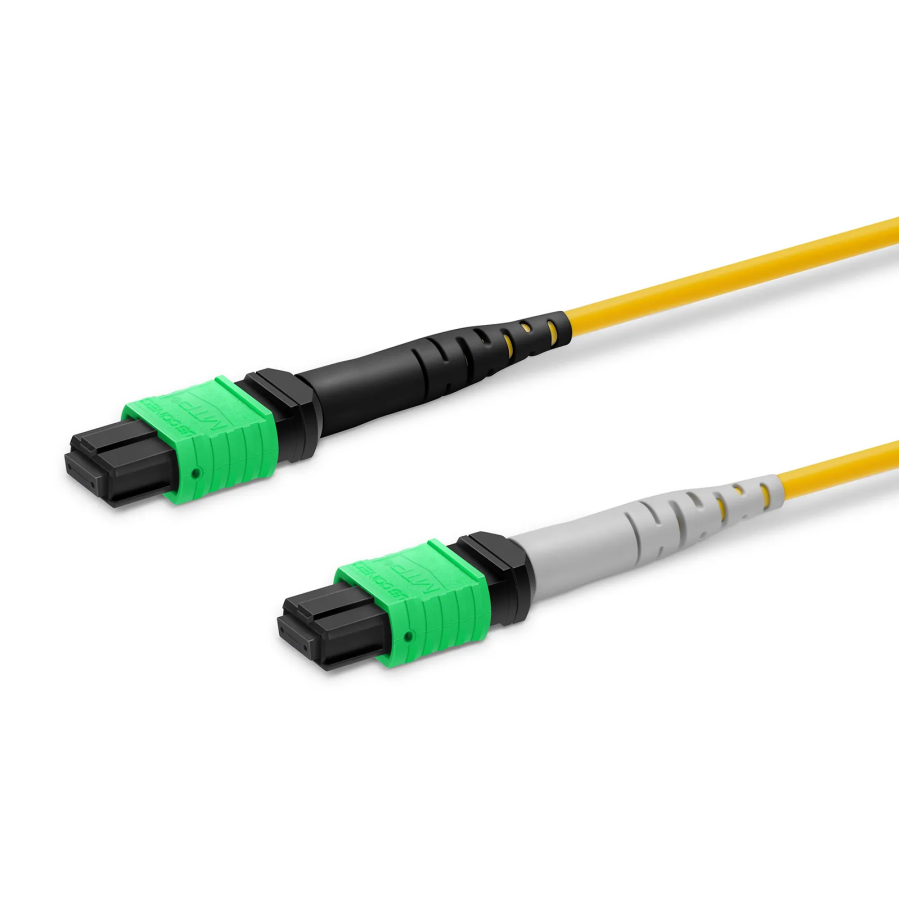

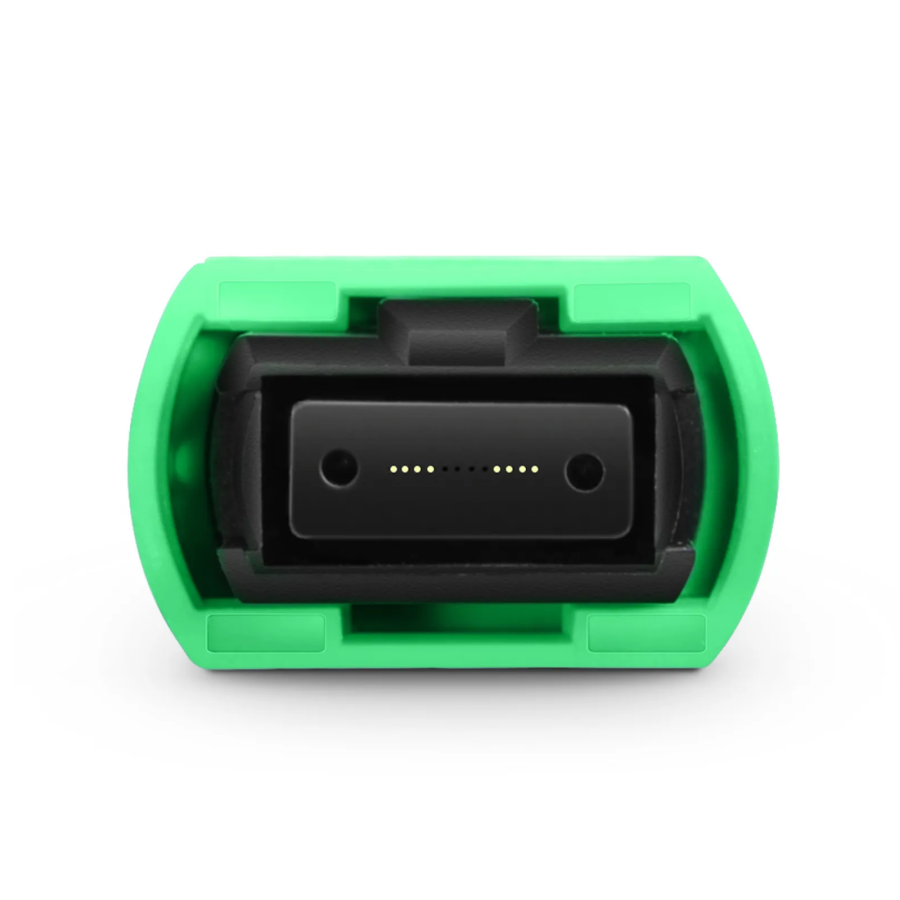

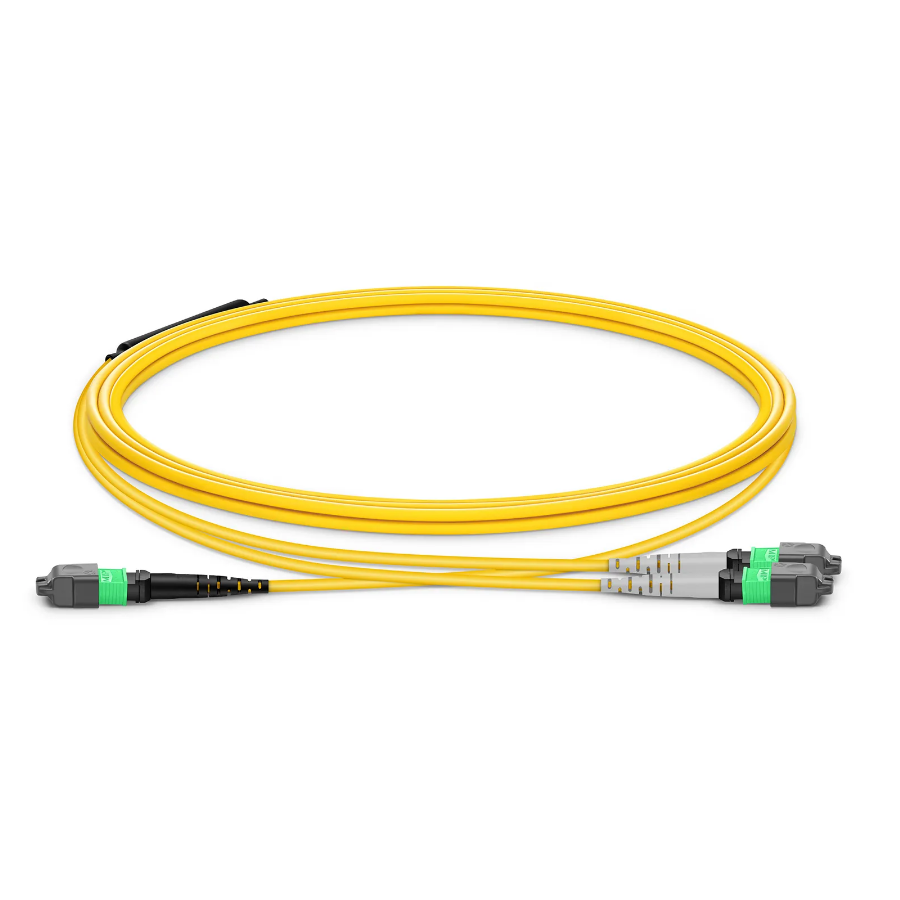

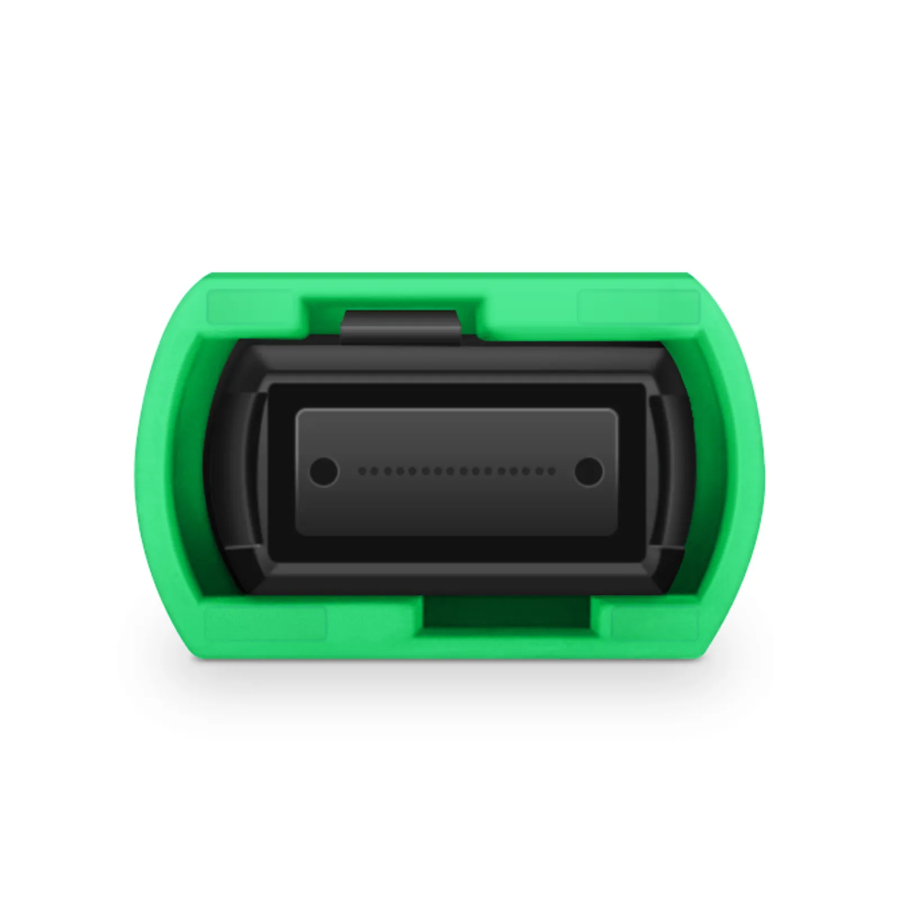

Product Images

MTP Breakout Cable with 0.35dB Low IL and 8° APC Endface for OFNP Fire Safety-Rated Data Center Links

MTP Breakout Cable with 0.35dB Low IL and 8° APC Endface for OFNP Fire Safety-Rated Data Center Links

MTP Breakout Cable with 0.35dB Low IL and 8° APC Endface for OFNP Fire Safety-Rated Data Center Links

MTP Breakout Cable with 0.35dB Low IL and 8° APC Endface for OFNP Fire Safety-Rated Data Center Links
