MTP Breakout Cable with OM4 Fiber and OFNP Fire Safety-Rated Jacket Featuring 0.35dB Low IL
MTP Breakout Cable with OM4 Fiber and OFNP Fire Safety-Rated Jacket Featuring 0.35dB Low IL
MTP Breakout Cable with OM4 Fiber and OFNP Fire Safety-Rated Jacket Featuring 0.35dB Low IL
MTP Breakout Cable with OM4 Fiber and OFNP Fire Safety-Rated Jacket Featuring 0.35dB Low IL
MTP Breakout Cable with OM4 Fiber and OFNP Fire Safety-Rated Jacket Featuring 0.35dB Low IL
MTP Breakout Cable with OM4 Fiber and OFNP Fire Safety-Rated Jacket Featuring 0.35dB Low IL
Specifications
Brand Name :
CY COM
Model Number :
MPO/MTP
Certification :
ISO9001:2015 , RoHS
Place of Origin :
Shenzhen , China
MOQ :
20
Payment Terms :
L/C,T/T,Western Union payments for offline orders.
Supply Ability :
1 million connector / month
Delivery Time :
3-15 days
Packaging Details :
PE bag
Product Name :
MPO Fiber Optic Patch Cord
Cable Color :
Yellow / Aqua/purple
Cable Shape :
Round / Ribbon
Connector Type :
Female /Male
Cable Materia :
LSZH / PVC
Polarity :
A/B/C
Description

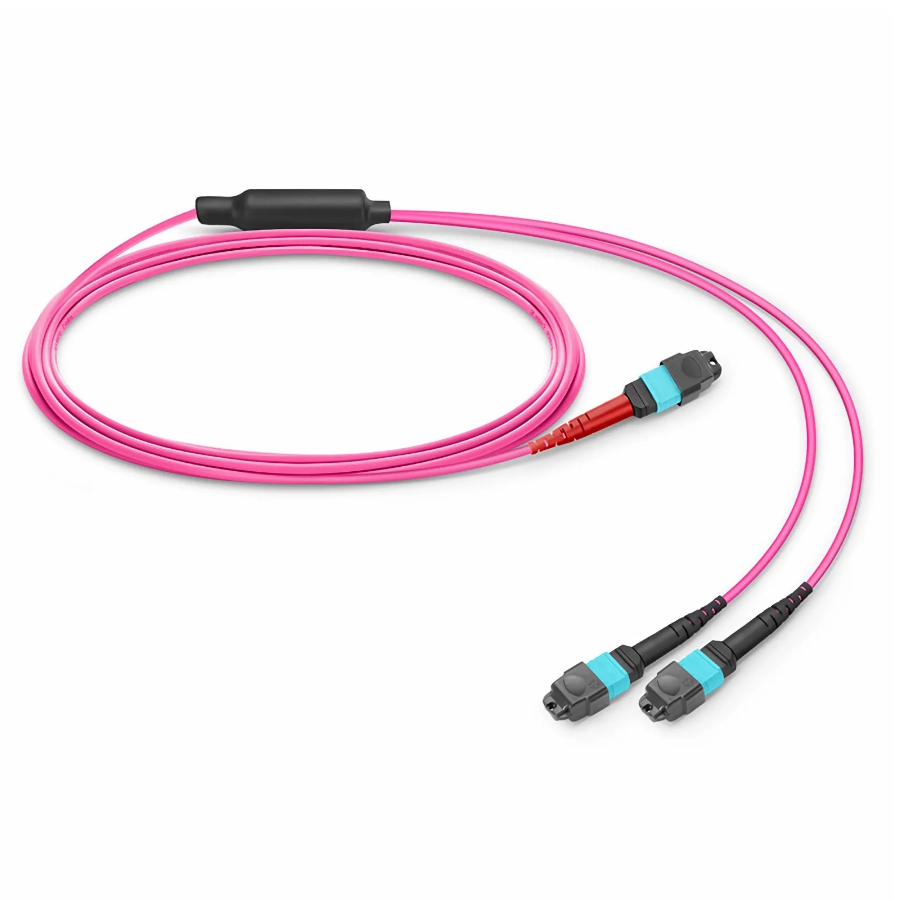

MTP Breakout Cable, MTP-24 F UPC to 2 x MTP-12 F UPC, 24F, OM4, OFNP, Type A

MTP® Breakout cable is designed to provide a more flexible multi-fiber cabling system based on MTP® products. Unlike MTP® harness cable, MTP® Breakout cables are terminated with MTP® connectors on both ends and can provide more possibilities for the existing 24-fiber cabling system.

The 40/100G MTP® Breakout cables eliminate the wasted fibers in current 40G transmission and upcoming 100G transmission. Compared to purchase and install separate Breakout cassettes, using MTP® Breakout cables is a more cost-effective and lower-loss option.

Key Features

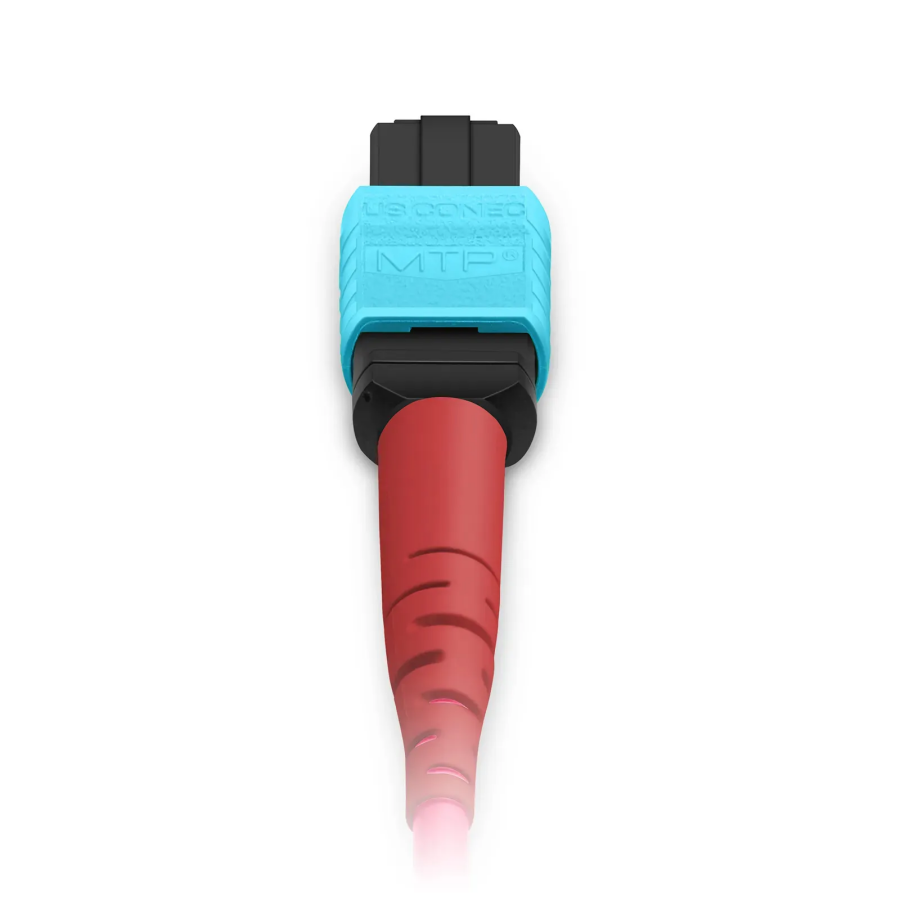

  • US Conec MTP® Connector with Optimal 0.35dB Low IL
    Bend Insensitive Fiber with 7.5mm Min. Bend Radius
    OFNP Fire Safety-Rated for Use in Plenum Air Spaces
    Color-Coded Connector Boots for Easy Identification
    Convert from 24 to 12 Fibers for 100% Fiber Utilizations
    Compliant to IEC 61754-7, ANSI/TIA-604-5 and ANSI/TIA-568.3-D
Applications
  • Data Center Infrastructure
  • Storage Area Network - Fiber Channel
  • Emerging 40 & 100Gbps Protocols
Technical Specifications
Fiber Connector
US Conec MTP®
Gender
Female
Fiber Mode
OM4 50/125μm
Wavelength
850/1300nm
Glass Fiber
Bend Insensitive Fiber
Polish Type
UPC to UPC
Insertion Loss
≤0.35dB (0.15dB Typ.)
Return Los
≥20/27dB (MTP-24/MTP-12)
Attenuation at 850nm
≤2.3dB/km
Attenuation at 1300nm
≤0.6dB/km
Cable Jacket
Plenum (OFNP)
Minimum Bend Radius
7.5mm
Cable Outside Diameter (OD)
3.0mm

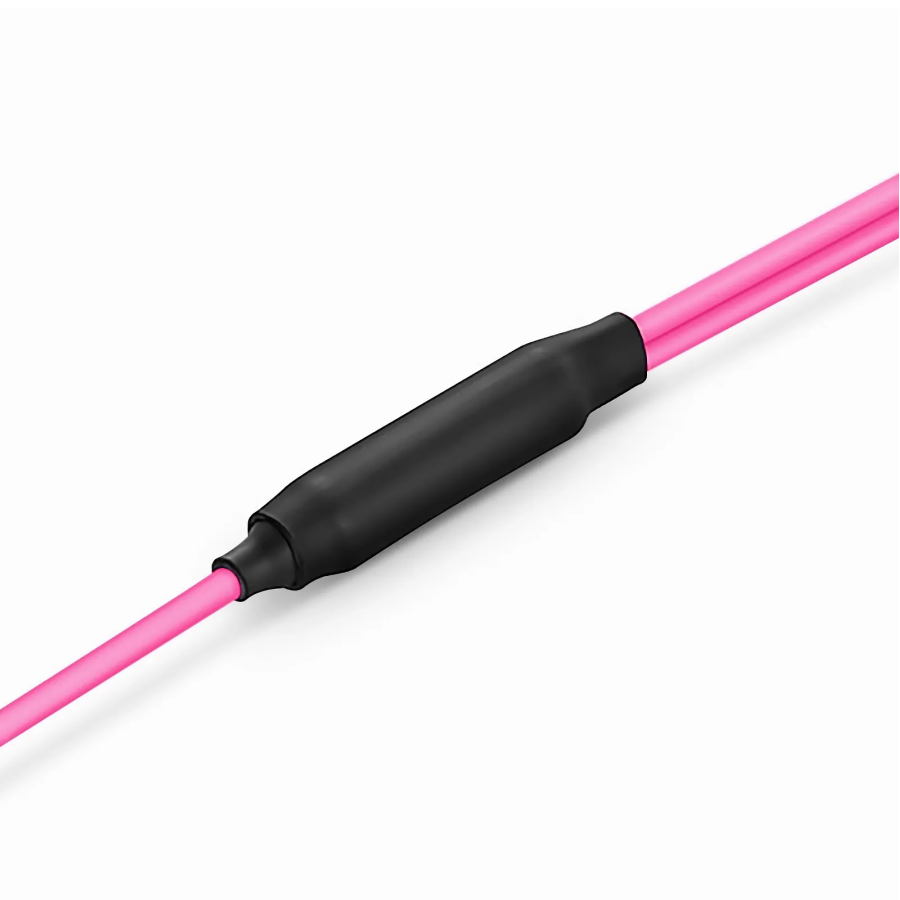

Breakout Length
0.5m
Installation Tensile Load
66N
Tensile Strength
80/240N (Long/Short Term)
Operating Temperature
-10 to 60°C (14 to 140℉)
Storage Temperature
-10 to 70°C (14 to 158℉)
Product Images

MTP Breakout Cable with OM4 Fiber and OFNP Fire Safety-Rated Jacket Featuring 0.35dB Low IL

MTP Breakout Cable with OM4 Fiber and OFNP Fire Safety-Rated Jacket Featuring 0.35dB Low IL

MTP Breakout Cable with OM4 Fiber and OFNP Fire Safety-Rated Jacket Featuring 0.35dB Low IL
