Duplex 9/125 Singlemode Yellow 3m 5m Fiber Patch Cables
Duplex 9/125 Singlemode Yellow 3m 5m Fiber Patch Cables
Duplex 9/125 Singlemode Yellow 3m 5m Fiber Patch Cables
Duplex 9/125 Singlemode Yellow 3m 5m Fiber Patch Cables
Duplex 9/125 Singlemode Yellow 3m 5m Fiber Patch Cables
Duplex 9/125 Singlemode Yellow 3m 5m Fiber Patch Cables
Specifications
Brand Name :
CY COM
Model Number :
SC/UPC
Certification :
ISO9001:2015 , RoHS
Place of Origin :
Shenzhen , China
MOQ :
20
Payment Terms :
L/C,T/T,Western Union payments for offline orders.
Supply Ability :
1 million connector / month
Delivery Time :
3-15 days
Packaging Details :
PE bag
Product Name :
Fiber Patch Cord
Connector :
SC/UPC
Cable Color :
Yellow
Cable Dimension :
0.9mm, 2.0mm,3.0mm
Wavelength :
1310nm Or 1550nm
Cable Type :
G652D, G657A1
Description

Duplex 9/125 Singlemode Yellow 3m 5m Fiber Patch Cables

Feature:

Price-Competitive
Low Insertion Loss & PDL
Factory-terminated and Tested
Fiber Options: G.652D /G.657A1/OM1/OM2/OM3 and PM Panda Fiber
Connector Options: FC/SC/LC/ST/MU/E2000/MT-RJ/MPO/MTP
Polishing Options: PC/UPC/APC
Feature Connector with Ceramic FerrulesApplications

Specifications

  • Simplex, single fiber, one connector on each end of the cable
  • Standard zip cord jacketing, OFNR
  • Corning fiber and cladding, Singlemode (9/125)
  • APC and/or UPC ends 100% inspected and tested for correct return loss and insertion loss levels
  • 1m,2m,3m,5m.... in length

Technical Parameters

Connector type FC,SC,LC,ST,MU,E2000,D4,DIN
Fiber mode SM MM
End face PC UPC APC PC
IL(dB) ≤0.3 ≤0.2 ≤0.3 ≤0.3
RL(dB) ≥45 ≥50 ≥60 ≥35
Other model MT-RJ,MPO
IL(dB) ≤0.7 / ≤0.7 ≤0.5
RL(dB) ≥30 / ≥50 ≥25

Application
1. FTTH FTTB FTTX Network
2. CATV type FTTH, FTTB & FTTP systems.
3. Fiber optic patch cord was widely used in all kinds of optical network solutions , such as Security , WAN, LAN,Test Equipment.
Quality Guarantee

(1) Source Guarantee. long-term suppliers keep the raw material quality stable. All the products are ROHS certificated and satisfy exporting quality level demand.

(2) Quality Test. 1；Raw materials will be put into production line production only after passing IQC inspection,

2；IPQC inspects the production line to ensure that the production meets the quality requirements.

3；OQC tests product performance and inspects packaging to ensure that each product meets customer quality requirements

(3) Optical Test. Our products comply with IEC and ITU standards

(4) At least 30% spot test by Quality Assurance Department after the products finished.

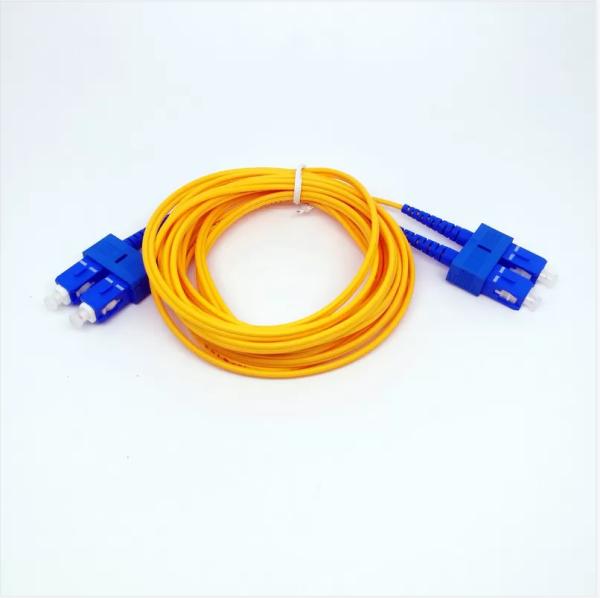

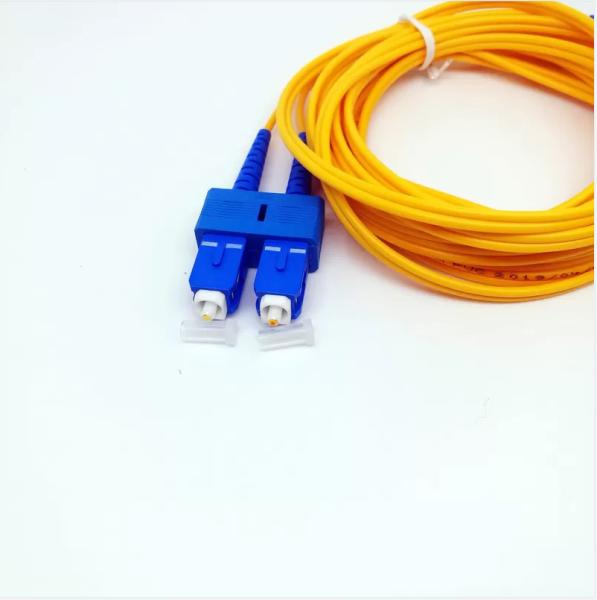

Product picture

Duplex 9/125 Singlemode Yellow 3m 5m Fiber Patch CablesDuplex 9/125 Singlemode Yellow 3m 5m Fiber Patch Cables

Factory Picture

Duplex 9/125 Singlemode Yellow 3m 5m Fiber Patch Cables
Packing
Duplex 9/125 Singlemode Yellow 3m 5m Fiber Patch Cables
