Multimode Duplex Simplex MTP MPO Patch Cord OM1 OM2 OM4
Multimode Duplex Simplex MTP MPO Patch Cord OM1 OM2 OM4
Multimode Duplex Simplex MTP MPO Patch Cord OM1 OM2 OM4
Multimode Duplex Simplex MTP MPO Patch Cord OM1 OM2 OM4
Multimode Duplex Simplex MTP MPO Patch Cord OM1 OM2 OM4
Multimode Duplex Simplex MTP MPO Patch Cord OM1 OM2 OM4
Specifications
Brand Name :
CY COM
Model Number :
US CONEC /SENKO
Certification :
ISO9001:2015 , RoHS
Place of Origin :
Shenzhen , China
MOQ :
20
Payment Terms :
L/C,T/T,Western Union payments for offline orders.
Supply Ability :
1 million connector / month
Delivery Time :
3-15 days
Packaging Details :
PE bag
Loss Data :
Elite Loss/Standard Loss
Connector Type :
Female /Male
Cable Color :
Orange / Purple / Violet
Fiber Type :
OM1 / OM2/ OM3 / OM4
LC Connector Type :
Duplex / Simplex / Uniboot
Breakout Lengthe :
0.5M / 1M /1.5M / Customized
Description

Mutilmode Duplex Simplex OM1 OM2 OM4 MPO MTP

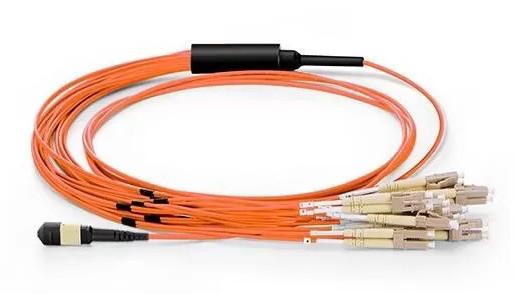

Mutilmode 24core MPO-LC Duplex Simplex Uniboot Breakout Patch Cord OM1 OM2 OM4

Description:

CY COM Develops and provides full range of fiber optic patch cords, jumpers pigtails, welcome to check us for more.

Professional MTP MPO workers, adanved equipment imported from Janpan and Germany, we produce high standard quality MTP MPO products.

The MPO Cable is designed for 40G (12 cores) and 100G (24 cores) optics direct connection and high-density data center applications. FIBERCAN Fiber optic cable meets RoHS and UL compliant, and all fiber patch cables connectors are 100% optically tested for insertion loss to ensure nice quality.

Product Name :
MPO Patch Cord 24 Core, MPO Trunk Cable to LC
Model MPO/F-2-3-4/5-6-78
1. A connector MPO female
2. B end connector LC UPC
3. Fiber counts 24 cores
4. Fanout length 0.15 (0.2, 0.3, 0.5m, etc..)
5. Fiber Type OM1 OM2 OM3 OM4
6. Cable Type 3.3mm O.D. multi-fiber mini micro cable
7. Cable Jacket LSZH
8. Cable length 1m, (2m,3m,5m etc..available)
Other further info. Fiber barnds, Cable purpose and tensile strength.

Features:

1; The connectors are comply with IEC, Telcordia-GR-326-Core standards;

2; Different size & color boot option;

3; Low insertion loss; High return loss;

4; 100% interferometer measurement available;

Specification:

Parameter Unit SM standard SM low loss MM standard MM low loss
Insertion Typical dB 0.35 0.2 0.35 0.2
Max 0.75 0.35 0.65 0.35
Return loss dB APC≥50 ≥25 ≥35
PC≥40
Repeatability dB ≤0.1
Interchangeability dB ≤0.3(Connector randomly)
Durability dB ≤0.3 ≤0.3(change 1000 matings)
Vibration dB ≤0.3(10~55Hz)
Operating temperature ℃ -25~+70

Application:

Multimode Duplex Simplex MTP MPO Patch Cord OM1 OM2 OM4

Multimode Duplex Simplex MTP MPO Patch Cord OM1 OM2 OM4

Multimode Duplex Simplex MTP MPO Patch Cord OM1 OM2 OM4

Multimode Duplex Simplex MTP MPO Patch Cord OM1 OM2 OM4
