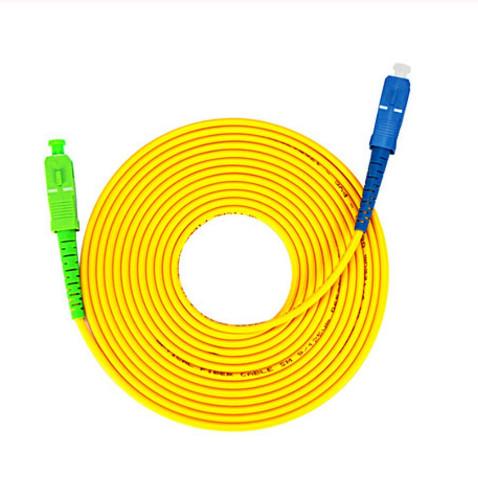

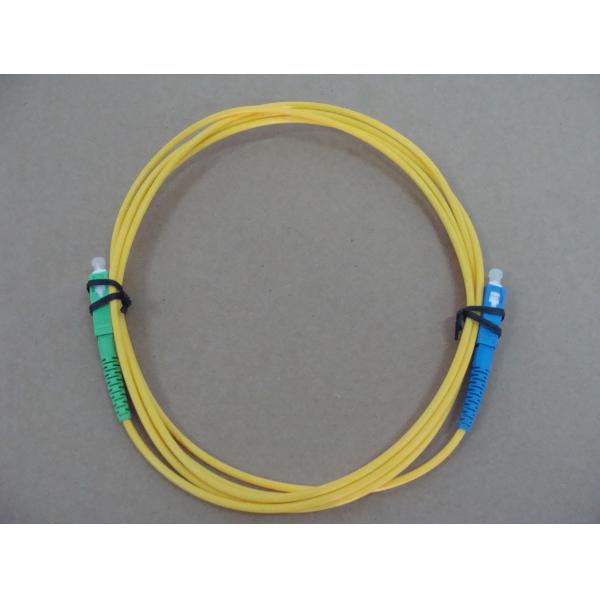

Yellow PVC Fiber Optic Patch Cable SC / APC to SC / UPC SX SM 0.9 2.0 3.0 mm
Yellow PVC Fiber Optic Patch Cable SC / APC to SC / UPC SX SM 0.9 2.0 3.0 mm
Yellow PVC Fiber Optic Patch Cable SC / APC to SC / UPC SX SM 0.9 2.0 3.0 mm
Yellow PVC Fiber Optic Patch Cable SC / APC to SC / UPC SX SM 0.9 2.0 3.0 mm
Yellow PVC Fiber Optic Patch Cable SC / APC to SC / UPC SX SM 0.9 2.0 3.0 mm
Yellow PVC Fiber Optic Patch Cable SC / APC to SC / UPC SX SM 0.9 2.0 3.0 mm
Yellow PVC Fiber Optic Patch Cable SC / APC to SC / UPC SX SM 0.9 2.0 3.0 mm
Yellow PVC Fiber Optic Patch Cable SC / APC to SC / UPC SX SM 0.9 2.0 3.0 mm
Specifications
Place of Origin :
Shenzhen , China
Brand Name :
CY COM
Certification :
ISO9001:2015 , RoHS
Model Number :
SC-SC-SX-SM-007
MOQ :
100
Packaging Details :
PE bag
Delivery Time :
3-15 days
Payment Terms :
L/C,T/T,Western Union payments for offline orders.
Supply Ability :
1 million connector / month
Cable Material :
LSZH / PVC / OFNP
Connector :
SC/UPC-SC/APC
Fiber type :
G652D / G657A / G657B
Fiber Qty :
Simplex
Cable color :
Yellow / White /Blue /Customized
Cable Length :
1M / 2M / 3M / Customized
Description

Yellow PVC Fiber Optic Patch Cable SC / APC to SC / UPC SX SM 0.9 2.0 3.0 mm

Features

♦ In line with Telcordia GR-326-CORE standard
♦ Low insertion loss,high return loss,high reliability
♦ Good repeatability,interchangeability
♦ Any diameter of fiber can be chose ,0.9mm,2mm,3mm ,
10G fiber,Low Smoke and Zero Halogen can be chose.

Application

♦ Fiber optic communcation system;
♦ Fiber optic data transmission;
♦ LAN , CATV ;
♦ Fiber optic testing system.

Ordering Information:

  1. For Example: FC/PC-FC/PC-SM-SX-φ3.0-3M
  2. Connector Type:FC,SC,LC,ST,MPO,MTRJ,MU,E2000,D4,DIN,SMA
  3. Ferrule End-face:PC,UPC,APC
  4. Core Type: Single-mode(SM:9/125μm), Multimode(MM:50/125μm or 62.5/125μm)
  5. Product Structure:“DX”means Duplex,“SX”means Simplex
  6. Fiber Diameter: φ3.0mm,φ2.0mm,φ0.9mm
  7. Cable Length:1,2,3meter or customized.
  8. Cable Type:PVC,LSZH,OM3,OFN

Specification:

Model SM MM
Connector Fiber Count 8, 12, 24 core
Polish PC, APC
Housing Color

Standard (green),

Elite (Yellow)

Standard(Beige)

Elite(Auqa)
Insertion Loss Standard type less than 0.7dB Less than 0.5dB
Insertion loss Elite type Less than 0.35dB Less than 0.3dB
Return Loss PC >50dB, APC>60dB >30dB
Durability (500 matings) less than 0.2dB
Test Eavelength 1310/1550nm 850/1300nm

Yellow PVC Fiber Optic Patch Cable SC / APC to SC / UPC SX SM 0.9 2.0 3.0 mm
