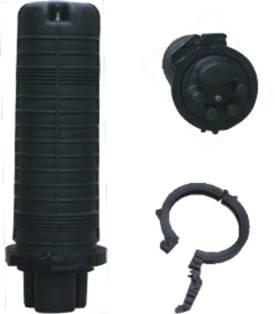

Dome Fiber Optic Splice Closure ( 12, 24,96…288 Cores) for Aerial, Duct, and Direct Buried Application
Dome Fiber Optic Splice Closure ( 12, 24,96…288 Cores) for Aerial, Duct, and Direct Buried Application
Dome Fiber Optic Splice Closure ( 12, 24,96…288 Cores) for Aerial, Duct, and Direct Buried Application
Dome Fiber Optic Splice Closure ( 12, 24,96…288 Cores) for Aerial, Duct, and Direct Buried Application
Dome Fiber Optic Splice Closure ( 12, 24,96…288 Cores) for Aerial, Duct, and Direct Buried Application
Dome Fiber Optic Splice Closure ( 12, 24,96…288 Cores) for Aerial, Duct, and Direct Buried Application
Dome Fiber Optic Splice Closure ( 12, 24,96…288 Cores) for Aerial, Duct, and Direct Buried Application
Dome Fiber Optic Splice Closure ( 12, 24,96…288 Cores) for Aerial, Duct, and Direct Buried Application
Specifications
Place of Origin :
China
Brand Name :
CY
Certification :
ISO9001:2008, SGS
MOQ :
20
Packaging Details :
1pcs/carton
Delivery Time :
3-7 days
Payment Terms :
T/T, Western union
Supply Ability :
600pcs per day
Description

Dome Fiber Optic Splice Closure ( 12, 24,96…288 Cores) for Aerial, Duct, and Direct Buried Application

Product Description

It provide with 4 fiber cable in-out round ports available for aerial, duct, and direct buried application. This product is made from the high-quality engineering plastic with the mechanical sealing structure filled with the sealing material. The external component and fasting piece are all made from high-quality stainless steel. It can be opened after sealing.

Dimension(mm)---- Ф210x540
Weight(Kg)------3.8kg
Cable diameter(mm)--- Ф7-22
Cable entry ports----6
Max Capacity of fiber Splice -----24 single
Max Capacity of Splice Tray-----24(single fiber), 72(ribbon fiber)
Max Capacity------96 single, 288(ribbon fiber)
Sealing structure-----Heat shrinkable sealing structure, silicon gum material

Kit contents
Splice protector tube-----according to the fiber cores
Making note-----1PC
Abrasive cloth------1PC
Special wrench------1PCS
Sticky cincture-----1coil
Sticky cincture-----1coil
Earthing wire-------1stick

Fiber buffer tube
Metal hoop----------1set
Plastic hoop--------1set
Sealing ring--------1(big)4(small)
Fiber protector tube-----according to the splice tray
Cable ties----------4xsplice tray

Application

1.Suitable for the straight line and branch line connections of optical cables

2.aerial closures system is designed for free-breathing aerial application.

3.aerial closures are applied to non-pressurized maintenance for up to 200 pairs aerial cables.

4.aerial closures are applicable both for straight as well as branch joints.
