Specifications
Place of Origin :
Shenzhen , China
Brand Name :
CY COM
Certification :
RoHS
MOQ :
20pcs
Packaging Details :
Plastic Box
Delivery Time :
in 3-5 days
Payment Terms :
L/C,T/T,Western Union payments for offline orders.
Supply Ability :
4.5 MIllion PCS / Month
Model Number :
FC Adapter
Price :
USD0.09-0.125/PCS
Color :
Green or red
Structure :
Single "D",Double"D",Square type
Fiber interface :
APC,UPC
Description

Discription:

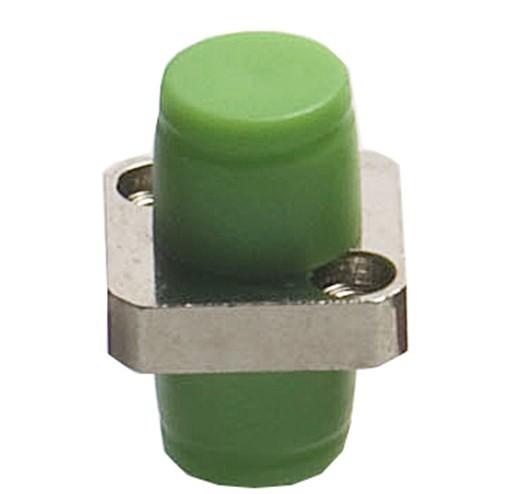

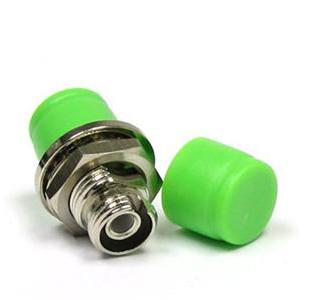

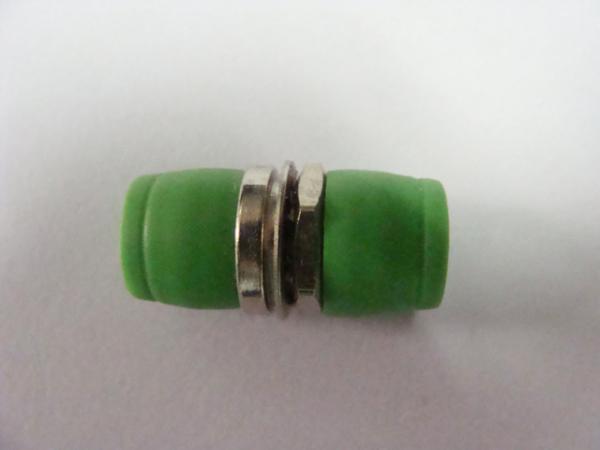

FC fiber optic adapters are with metal housing, single-mode FC adapters are with zirconia sleeves, multi-mode FC adapters are with bronze sleeves.
An adapter is a mechanical device designed to align fiber-optic connectors. It contains the interconnect sleeve, that holds the two ferrules together.

Features:

  • Low insertion loss, high return loss
  • Good compatibility
  • High precision of mechanical dimensions
  • High reliability & stability
  • Ceramic or Bronze Sleeve
  • PC,APC,UPC optional
  • Simplex / Duplex

Application:

  • Telecommunication
  • Computer networks
  • CATV networks
  • Active device termination
  • Instrumentation

Specification:

rameter Unit LC, SC, FC, MU, ST, SC-ST, FC-ST, FC-SC, MTRJ E2000
SM MM SM MM SM
PC UPC APC PC PC UPC PC PC APC
Insertion Loss (Typical) dB ≤0.3 ≤0.2 ≤0.3 ≤0.2 ≤0.3 ≤0.2 ≤0.2 ≤0.3 ≤0.3
Return Loss dB ≥45 ≥50 ≥60 ≥30 ≥45 ≥50 ≥35 ≥55 ≥75
Exchangeability dB ≤0.2 ≤0.2 ≤0.2
Repeatability dB ≤0.2 ≤0.2 ≤0.2
Durability Time ＞1000 ＞1000 ＞1000
Operating Temperature ℃ -40~75 -40~75 -40~75
Storage Temperature ℃ -45~85 -45~85 -45~85

5

High Precision of Mechanical Dimension FC optical Adapter Green or red Color

High Precision of Mechanical Dimension FC optical Adapter Green or red Color

High Precision of Mechanical Dimension FC optical Adapter Green or red Color
