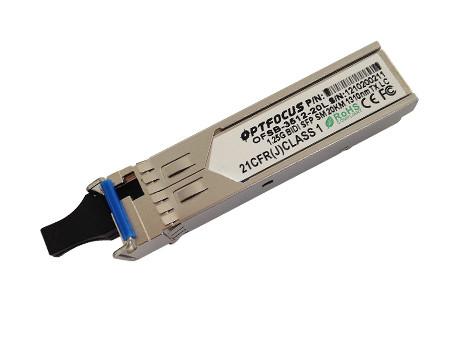

1.25G 20km Bidi single fiber single mode Tx1310 Rx1550nm DDM STM1/OC-3 Fiber SFP module

Description

The SFP-BIDI transceivers are high performance, cost effective modules supporting dual data-rate of he transceiver consists of three sections: a FP laser transmitter, a PIN photodiode integrated with a he transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further 1.25Gbps/1.0625Gbps and 20km transmission distance with SMF. T trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements. T information, please refer to SFP MSA.

Features

Dual data-rate of 1.25Gbps/1.063Gbps operation

1310nm FP laser and PIN photodetector for 20km transmission

Compliant with SFP MSA and SFF-8472 with simplex LC receptacle

Digital Diagnostic Monitoring: Internal Calibration or External Calibration

Compatible with SONET OC-24-LR-1

Compatible with RoHS

+3.3V single power supply

Operating case temperature: Standard : 0 to +70°C

Applications

Gigabit Ethernet

Fiber Channel

Switch to Switch interface

Switched backplane applications

Router/Server interface

Other optical transmission systems

Absolute Maximum Ratings

Table 1 - Absolute Maximum Ratings
