12V Power supply epon gpon dual mode onu 1ge ethernet port sc
12V Power supply epon gpon dual mode onu 1ge ethernet port sc
12V Power supply epon gpon dual mode onu 1ge ethernet port sc
12V Power supply epon gpon dual mode onu 1ge ethernet port sc
12V Power supply epon gpon dual mode onu 1ge ethernet port sc
12V Power supply epon gpon dual mode onu 1ge ethernet port sc
Specifications
Brand Name :
OPTFOCUS
Model Number :
OFSX611
Place of Origin :
China
MOQ :
1 piece
Price :
USD 9.5~11 / piece
Payment Terms :
L/C, T/T, Western Union, Paypal
Supply Ability :
50000 pcs / month
Delivery Time :
5-10 days, depend on the quantity
Packaging Details :
1 piece / box
Certification :
CE ISO
Product name :
GPON EPON ONU
Fiber connector :
SC/UPC connector
Wavelength(nm) :
TX 1310nm，RX 1490nm
Operating temperature :
-5～+55℃
Storage temperature :
-30～+70℃
Transmission distance :
20KM
Description

12V Power supply epon gpon dual mode onu 1ge ethernet port sc

12V Power supply epon gpon dual mode onu 1ge ethernet port sc​

OFSX611
1GE Ethernet ports XPON ONU for FTTH solution

OFSX611 XPON(GPON and EPON dual mode) ONU. It is designed for meeting the triple-play service needs of fixed network operators or cable operators, and widely used in FTTx, video surveillance and other requirements It is based on mature GPON and EPON technology, and has high ratio of performance to price, stable, cost-effective, high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees. It is fully compliant with GPON And EPON technical regulations such as ITU-T G.984.x, IEEE802.3ah requirement. it can be used as GPON or EPON.


Basic Characteristics

Tech parameters Description


Up-link interface

1 XPON interface,SC single mode single fiber RX 2.488 Gbits/s rate and TX 1.244 Gbits/s(GPON), RX 1.244 Gbits/s rate and TX 1.244 Gbits/s(EPON) rate Fiber type:SC/UPC
Optical power: 0~4 dBm Sensitivity:-28 dBm safety: ONU authentication mechanism
Wavelength(nm) TX 1310nm,RX 1490nm
Fiber connector SC/UPC connector
Down-link data interface 1*10/100/1000M auto-negotiation Ethernet interface, RJ45 interface
Indicator LED 4 pcs
DC supply interface input＋12V 0.5A
Power ≤5W
Operating temperature -5～+55℃
Humidity 10～85%(non-condensation)
Storage temperature -30～+70℃
Dimension(MM) 85*85*28mm(mainframe)
Weight 0.24Kg(mainframe)

Definition of indicator LED

symbol color meaning
PWR green ON:successfully connect with power OFF:fail to connect with power
PON green ON:ONU port Link link correctly Flicker: PON registering
OFF:ONU ports link link faulty
LAN green ON: Link up correctly Flicker: data is transmitting OFF: link down faulty
LOS red

Flicker: fail to connect with PON port
OFF: detected fiber to input

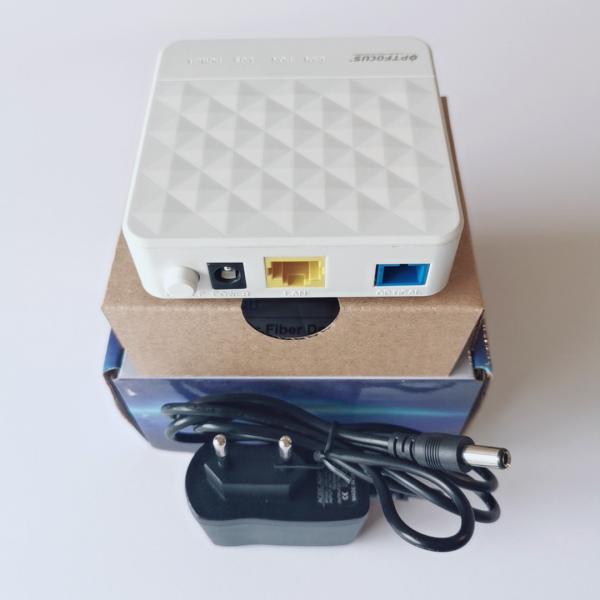

Physical Pic Reference

12V Power supply epon gpon dual mode onu 1ge ethernet port sc

Solutions


12V Power supply epon gpon dual mode onu 1ge ethernet port sc


Certifications

12V Power supply epon gpon dual mode onu 1ge ethernet port sc


COMPANY INFORMATION


Shenzhen Optfocus Technology Co.,Ltd was established in 2009, OPTFOCUS is a High -tech enterprise, professional R & D, production and sales of Fiber to the Home (FTTH), Fiber to the Building (FTTB) & FTTx, Fiber access network equipment and terminal equipment & cabling system products. It is committed to provide Customized OEM & ODM services to Global communication distributors, Telecom Operators and System Integrators.

12V Power supply epon gpon dual mode onu 1ge ethernet port sc

Factory

OPTFOCUS has two office center, The manufacturing center locates in Baoan Industrial area, and the marketing office center locates in Nanshan district of Shenzhen City. Manufacturing center's land area around 2,000 M2, and it owns three production workshops. One workshop produce Fiber Optical Active Devices The other two workshops are specialized in producing Passive Components.


Testing

12V Power supply epon gpon dual mode onu 1ge ethernet port sc

EXHIBITION

12V Power supply epon gpon dual mode onu 1ge ethernet port sc
12V Power supply epon gpon dual mode onu 1ge ethernet port sc

CONTACT US

Contact us by email fttb@optfocus.com or submit your inquiry follow the introduction. We will get back to you in 12 hours with our favorable price and best consulting service.


12V Power supply epon gpon dual mode onu 1ge ethernet port sc
