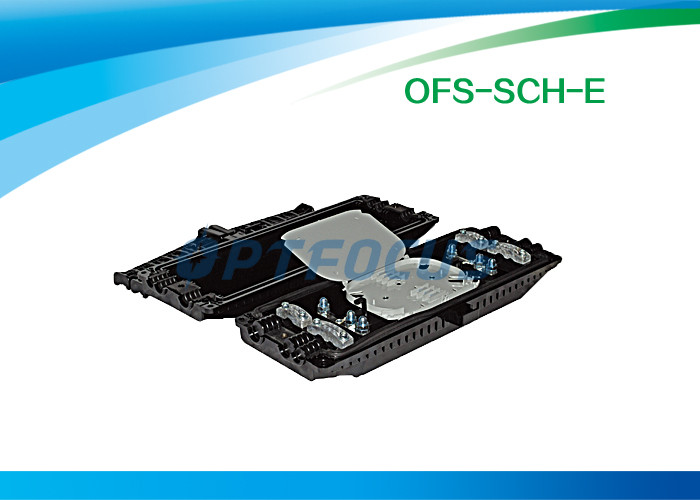

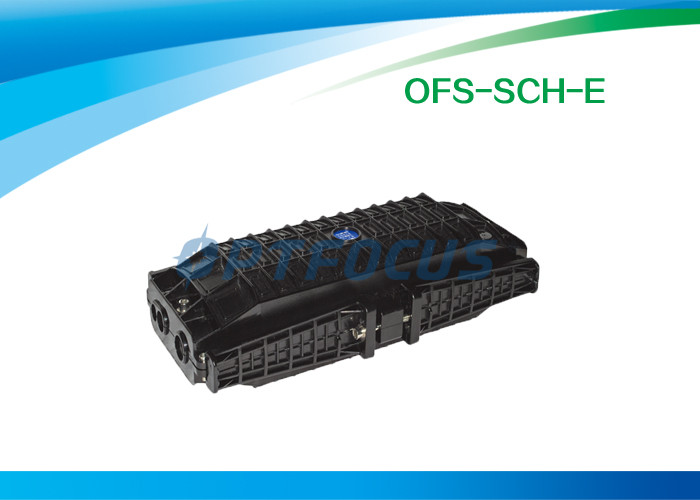

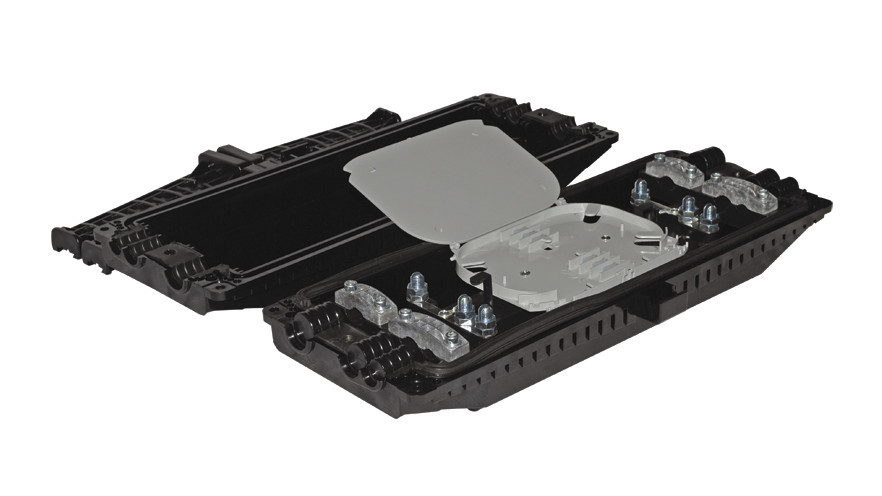

6 Port 12 Fibers Fiber Optic Enclosures 3 outlet 3 inlet Horizontal type
6 Port 12 Fibers Fiber Optic Enclosures 3 outlet 3 inlet Horizontal type
6 Port 12 Fibers Fiber Optic Enclosures 3 outlet 3 inlet Horizontal type
6 Port 12 Fibers Fiber Optic Enclosures 3 outlet 3 inlet Horizontal type
Specifications
Brand Name :
OPTFOCUS
Model Number :
OFS-SCH-01E
Certification :
ROHS
Place of Origin :
China
MOQ :
10 pcs
Price :
negotiated
Payment Terms :
Western Union, T/T, L/C, Paypal
Supply Ability :
10000PCS/Month
Delivery Time :
5-8 days afterpayment received
Packaging Details :
450*216*110mm/1pcs, 470*450*X610mm/10pcs
Material :
PC
Connector type :
3outlet and 3inlet
Weight (excluding outside box) :
2750g-3200g
Diameter of fiber cable :
8-23(mm)
Dimension(mm) :
450x216x110
Color :
black
Max.capacity: :
216 cores
Description

6 Port 12 Fibers Fiber Optic Enclosures 3 outlet 3 inlet Horizontal type

OFS-SCH-01E

Horizontal Splice Closure


Excellent sealing performance,reusable. Protection grade is IP 68.

Features:

  • Installation Method: wall-mounted, aerial,pipe-lined,manhole
  • Feature:
  • Easy in operation and good in practicality.
  • Inner and external push button can insure good sealing,requirements of cable torque , stretching, pressure, bending.
  • Vulcanized sealing can meet the Φ8—Φ23 (mm)optical cable sealing needs with excellent re-package performance.
  • The ambient temperature ranges from -40 to +65℃.

Applications

The scope of application is: aerial, underground, wall-mounting, wall-mounting in duct and handhole.

OFS-SCH-01E Fiber Optic Splice Closure Datasheet

Model No.

Size (mm) L×W×H

Core capacity

Cable Ports (max)

Max diameter of cable (mm)

Weight (excluding outside box)

OFS-SCH-01E

450x216x110 (mm)

96-216

6

Φ8—Φ23 (mm) (mm)

2750g-3200g

Main components

No.

Name of components

Quantity

Usage

Remarks

1

Housing

1 set

Protecting fiber cable splices in whole

Internal diameter:

378x136 (mm)

2

Insert plate

2 pairs

Fixing the housing

175x56x30(mm)

3

Fiber optic splice tray

(FOST)

Max 4 pieces (either bunchy or ribbon)

Fixing heat shrinkable protective sleeve and holding fibers

Suitable for:

Bunchy:6,12,24(cores) Ribbon:3,6 (pieces)

4

Foundation

1 set

Fixing reinforced core of fiber- cable and FOST

5

Seal fitting

1 set

Sealing between FOSC cover and FOSC bottom

6

Port plug

6 pieces

Sealing empty ports

7

Pressure

testing valve

1 set

After injecting air, it is used for pressure testing and sealing testing

Configuration as per requirement

8

Earthing deriving device

1 set

Deriving metallic components of fiber cable in FOSC for earthing connection

Configuration as per requirement
